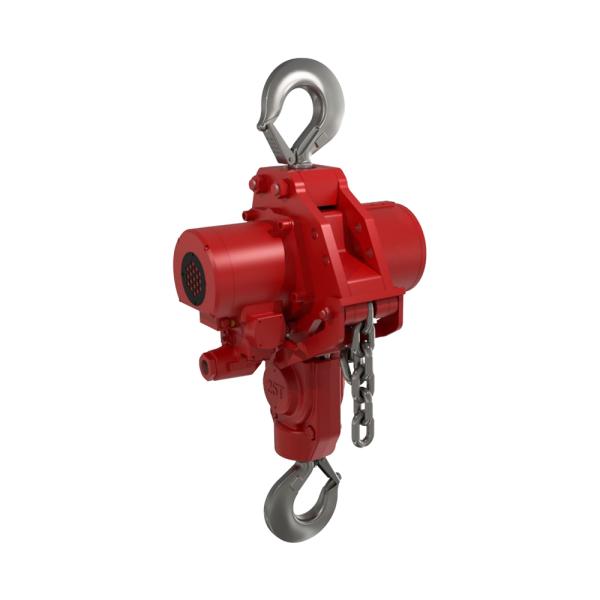

Red Rooster TMH-30 Air Hoist

The Red Rooster TMH-30 has a 30 T lifting capacity, and are good fit in any industrial application. The new Red Rooster TMH series air hoists has the highest lifting speed and the lowest headroom on the market. With the high M3-classification (ISO 4301-1) is this high speed air hoist exstreemly durable. TMH air hoists are constructed to work with full lifting capacity at a air pressure around 4 - 6,3 bar. To obtain full lifting speed the air pressure must be 6,3 bar.

Features:

• Toku motor.
• ATEX zone 2 specification.
• Solid planetary gearbox.
• Failsafe automatic internal disc brake.
• Mechanical contacts for lifting and lowering.
• House in casted steel.
• Internal silencer - keep the sound level low at  82 dB (A).
• Swivel safety hook with latch.
• 23.5 x 66mm chain from a european manufacturer, produced according to EN818-7.
• Automatic adjustable load limiter.

Options:

• Marine specification
• Chain bag / collector in PVC, galvanized or stainless steel.
• Air service elements.
• Festoon system.
• Radio control.
• Closing valve.
