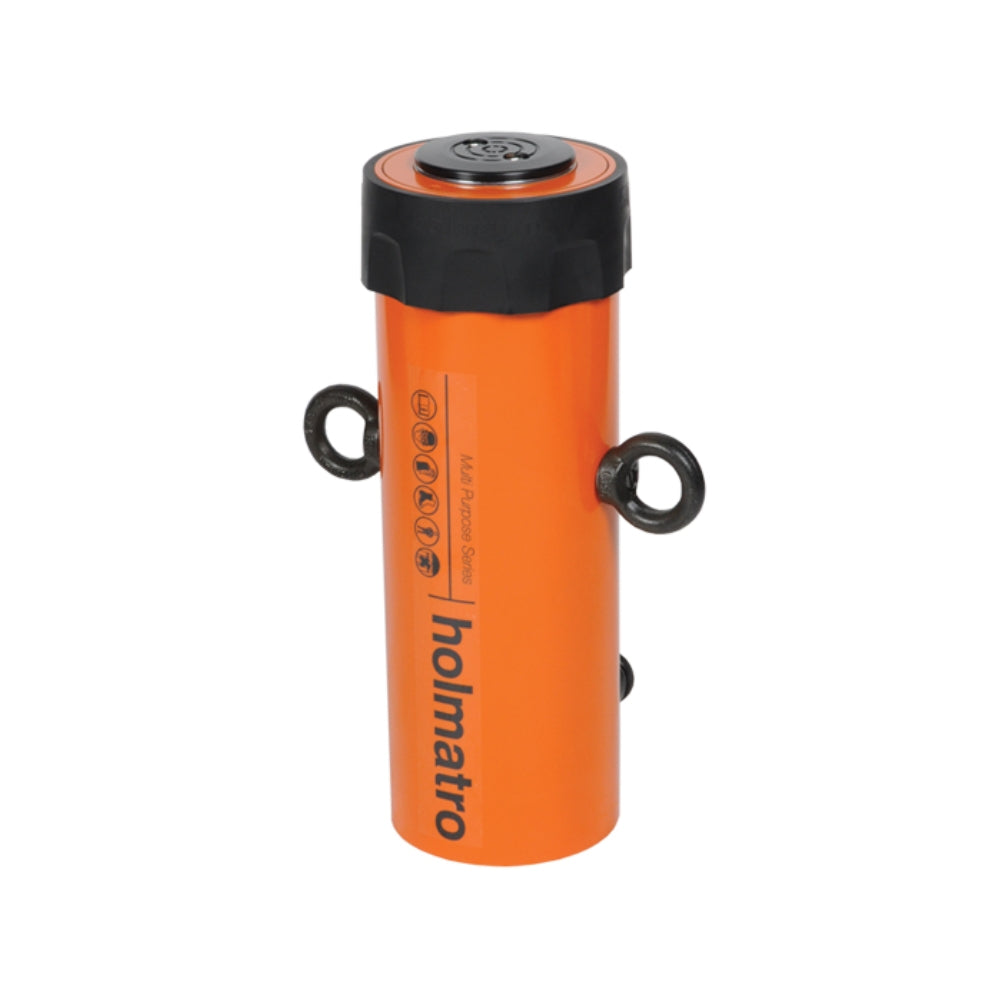

Holmatro Hydraulic Cylinder Jack - HGC

Name: Holmatro Hydraulic Cylinder Jack - HGC
Availability: OutOfStock

• A range of 50 models with different tonnages and stroke

lengths

• Collar thread and base mounting holes

• Internal plunger thread on all models to 50 tons

• Duplex Power Coating makes the plunger corrosionresistant

• Duo Power Ring; seal and bearing for long life span

• Thread Protector protects the thread on the cylinder

housing

• XL Saddle+ protects the plunger and limits eccentric loads

Product specifications

Product type	Hydraulic Jack
Supplier name	Holmatro Industrial Equipment
EN-Norm
Safety factor
Color	Orange
Material	Steel
Hydraulic Pressure (bar)	720
Unit	Pcs.

Technical Data

Add to order

Name

Capacity (t)

Closed height (mm)

Oil content (cm3)

Stock status

Price

Holmatro Cylinder 5T - HGC 5 S 5
# 8204000020

Capacity (t) 5

Closed height (mm) 130

Oil content (cm3) 35

Login needed

Holmatro Cylinder 5T - HGC 5 S 7.5
# 8204000030

Capacity (t) 5

Closed height (mm) 155

Oil content (cm3) 53

Login needed

Holmatro Cylinder 5T - HGC 5 S 10
# 8204000040

Capacity (t) 5

Closed height (mm) 180

100

Oil content (cm3) 71

Login needed

Holmatro Cylinder 5T - HGC 5 S 12.5
# 8204000050

Capacity (t) 5

Closed height (mm) 206

125

Oil content (cm3) 88

Login needed

Holmatro Cylinder 5T - HGC 5 S 17.5
# 8204000060

Capacity (t) 5

Closed height (mm) 268

175

Oil content (cm3) 124

Login needed

Holmatro Cylinder 5T - HGC 5 S 22.5
# 8204000070

Capacity (t) 5

Closed height (mm) 318

225

Oil content (cm3) 159

Login needed

Holmatro Cylinder 10T - HGC 10 S 2.5
# 8204100010

Capacity (t) 10

Closed height (mm) 97

Oil content (cm3) 35

Login needed

Holmatro Cylinder 10T - HGC 10 S 5
# 8204100020

Capacity (t) 10

Closed height (mm) 122

Oil content (cm3) 69

Login needed

Holmatro Cylinder 10T - HGC 10 S 10
# 8204100030

Capacity (t) 10

Closed height (mm) 172

100

Oil content (cm3) 139

Login needed

Holmatro Cylinder 10T - HGC 10 S 15
# 8204100040

Capacity (t) 10

Closed height (mm) 240

150

Oil content (cm3) 208

Login needed

Holmatro Cylinder 10T - HGC 10 S 20
# 8204100050

Capacity (t) 10

Closed height (mm) 290

200

Oil content (cm3) 277

Login needed

Holmatro Cylinder 10T - HGC 10 S 25
# 8204100060

Capacity (t) 10

Closed height (mm) 340

250

Oil content (cm3) 346

Login needed

Holmatro Cylinder 10T - HGC 10 S 30
# 8204100070

Capacity (t) 10

Closed height (mm) 390

300

Oil content (cm3) 416

Login needed

Holmatro Cylinder 10T - HGC 10 S 35
# 8204100080

Capacity (t) 10

Closed height (mm) 440

350

Oil content (cm3) 485

Login needed

Holmatro Cylinder 10T - HGC 10 S 40
# 8204100090

Capacity (t) 10

Closed height (mm) 490

400

Oil content (cm3) 554

Login needed

Holmatro Cylinder 15T - HGC 15 S 5
# 8204200020

Capacity (t) 15

Closed height (mm) 148

Oil content (cm3) 119

Login needed

Holmatro Cylinder 15T - HGC 15 S 10
# 8204200030

Capacity (t) 15

Closed height (mm) 198

100

Oil content (cm3) 238

Login needed

Holmatro Cylinder 15T - HGC 15 S 15
# 8204200040

Capacity (t) 15

Closed height (mm) 265

150

Oil content (cm3) 356

Login needed

Holmatro Cylinder 15T - HGC 15 S 20
# 8204200050

Capacity (t) 15

Closed height (mm) 315

200

Oil content (cm3) 475

Login needed

Holmatro Cylinder 15T - HGC 15 S 25
# 8204200060

Capacity (t) 15

Closed height (mm) 365

250

Oil content (cm3) 594

Login needed

Holmatro Cylinder 15T - HGC 15 S 30
# 8204200070

Capacity (t) 15

Closed height (mm) 415

300

Oil content (cm3) 713

Login needed

Holmatro Cylinder 15T - HGC 15 S 35
# 8204200080

Capacity (t) 15

Closed height (mm) 465

350

Oil content (cm3) 832

Login needed

Holmatro Cylinder 15T - HGC 15 S 40
# 8204200090

Capacity (t) 15

Closed height (mm) 515

400

Oil content (cm3) 950

Login needed

Holmatro Cylinder 25T - HGC 25 S 2.5
# 8204300010

Capacity (t) 25

Closed height (mm) 138

Oil content (cm3) 83

Login needed

Holmatro Cylinder 25T - HGC 25 S 5
# 8204300020

Capacity (t) 25

Closed height (mm) 165

Oil content (cm3) 166

Login needed

Holmatro Cylinder 25T - HGC 25 S 10
# 8204300030

Capacity (t) 25

Closed height (mm) 215

100

Oil content (cm3) 332

Login needed

Holmatro Cylinder 25T - HGC 25 S 15
# 8204300040

Capacity (t) 25

Closed height (mm) 265

150

Oil content (cm3) 498

Login needed

Holmatro Cylinder 25T - HGC 25 S 20
# 8204300050

Capacity (t) 25

Closed height (mm) 315

200

Oil content (cm3) 664

Login needed

Holmatro Cylinder 25T - HGC 25 S 25
# 8204300060

Capacity (t) 25

Closed height (mm) 374

250

Oil content (cm3) 830

Login needed

Holmatro Cylinder 25T - HGC 25 S 30
# 8204300070

Capacity (t) 25

Closed height (mm) 424

300

Oil content (cm3) 996

Login needed

Holmatro Cylinder 25T - HGC 25 S 35
# 8204300080

Capacity (t) 25

Closed height (mm) 474

350

Oil content (cm3) 1161

Login needed

Holmatro Cylinder 25T - HGC 25 S 45
# 8204300090

Capacity (t) 25

Closed height (mm) 574

450

Oil content (cm3) 1493

Login needed

Holmatro Cylinder 35T - HGC 35 S 5
# 8204400010

Capacity (t) 25

Closed height (mm) 184

Oil content (cm3) 251

Login needed

Holmatro Cylinder 35T - HGC 35 S 10
# 8204400020

Capacity (t) 35

Closed height (mm) 234

100

Oil content (cm3) 503

Login needed

Holmatro Cylinder 35T - HGC 35 S 15
# 8204400030

Capacity (t) 35

Closed height (mm) 284

150

Oil content (cm3) 754

Login needed

Holmatro Cylinder 35T - HGC 35 S 20
# 8204400040

Capacity (t) 35

Closed height (mm) 334

200

Oil content (cm3) 1005

Login needed

Holmatro Cylinder 50T - HGC 50 S 5
# 8204500010

Capacity (t) 50

Closed height (mm) 176

Oil content (cm3) 354

Login needed

Holmatro Cylinder 50T - HGC 50 S 10
# 8204500020

Capacity (t) 50

Closed height (mm) 226

100

Oil content (cm3) 709

Login needed

Holmatro Cylinder 50T - HGC 50 S 15
# 8204500030

Capacity (t) 50

Closed height (mm) 276

150

Oil content (cm3) 1063

Login needed

Holmatro Cylinder 50T - HGC 50 S 20
# 8204500040

Capacity (t) 50

Closed height (mm) 326

200

Oil content (cm3) 1418

Login needed

Holmatro Cylinder 50T - HGC 50 S 25
# 8204500050

Capacity (t) 50

Closed height (mm) 376

250

Oil content (cm3) 1772

Login needed

Holmatro Cylinder 50T - HGC 50 S 35
# 8204500060

Capacity (t) 50

Closed height (mm) 476

350

Oil content (cm3) 2481

Login needed

Holmatro Cylinder 75T - HGC 75 S 15
# 8204600010

Capacity (t) 75

Closed height (mm) 285

150

Oil content (cm3) 1558

Login needed

Holmatro Cylinder 75T - HGC 75 S 35
# 8204600020

Capacity (t) 75

Closed height (mm) 485

350

Oil content (cm3) 3635

Login needed

Holmatro Cylinder 100T - HGC 100 S 5
# 8204700010

Capacity (t) 100

Closed height (mm) 218

Oil content (cm3) 716

Login needed

Holmatro Cylinder 100T - HGC 100 S 10
# 8204700020

Capacity (t) 100

Closed height (mm) 268

100

Oil content (cm3) 1431

Login needed

Holmatro Cylinder 100T - HGC 100 S 15
# 8204700030

Capacity (t) 100

Closed height (mm) 318

150

Oil content (cm3) 2147

Login needed

Holmatro Cylinder 100T - HGC 100 S 25
# 8204700040

Capacity (t) 100

Closed height (mm) 418

250

Oil content (cm3) 3579

Login needed
