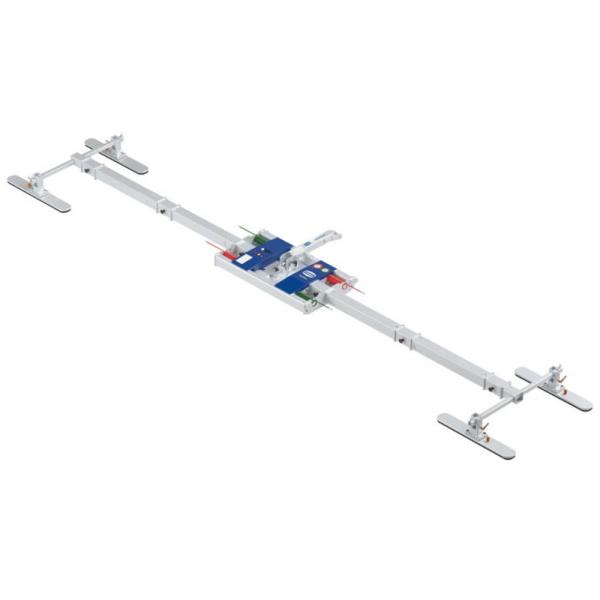

Schmalz VacuMaster Panel

For outdoor transportation of sandwich panels and facade elements (up to 400 kg)

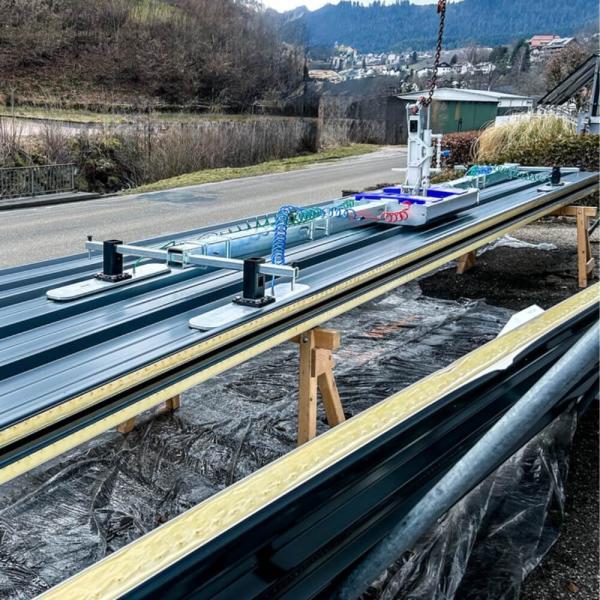

VacuMaster Panel can lift different types of panels/loads horizontally and vertically and easily transport to and from the construction site! One-handed arms can be easily and quickly adapted to the load and loads can be swiveled 90° and rotated 360° manually.

• Safe and easy handling of workpieces without damage.
• A high level of safety on the construction site thanks to 2 independent vacuum circuits according to DIN EN 13155-1/2.
• Fast and ergonomic handling of loads of different sizes.
• The VacuMaster Panel can be transported in a box the size of a Euro pallet.
• VacuMaster Panel can also be equipped with radio control.

Comes with 4 suction cups for lifting loads up to 400 kg horizontally and 260 kg vertically.
