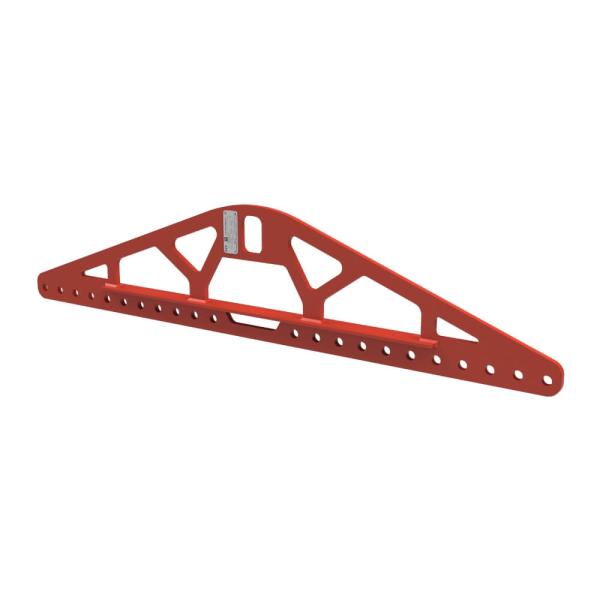

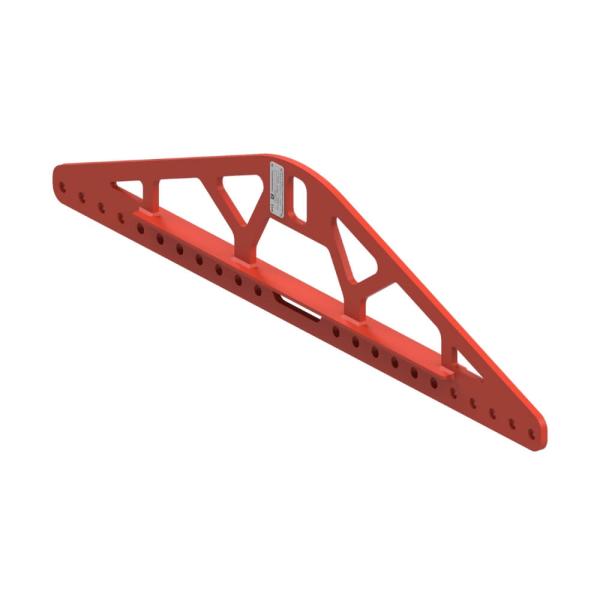

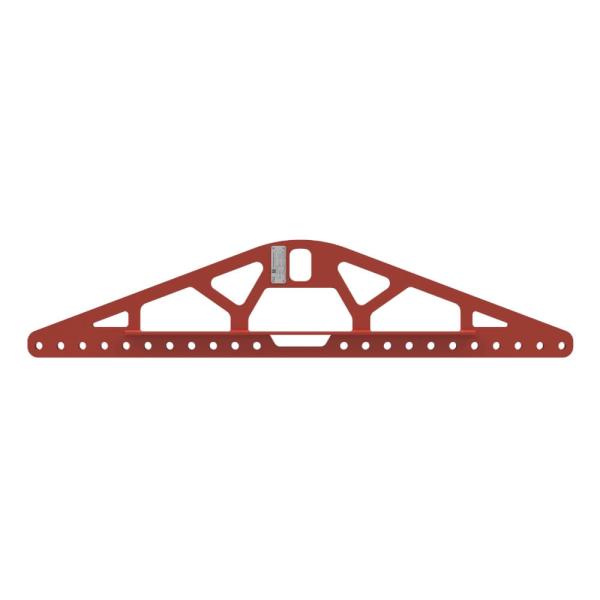

Miniflex Lifting Beam

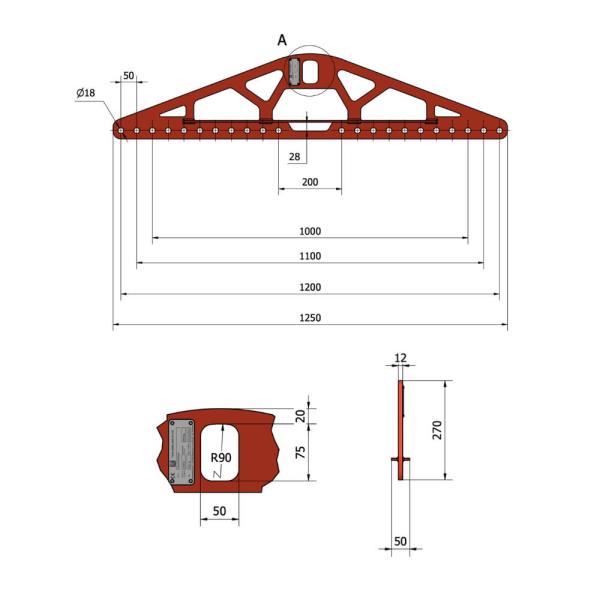

Compact lifting beam for a multitude of applications with a lifting capacity (WLL) of 1 tonne! Miniflex provides maximum flexibility with a span from 200mm to 1200mm. The span can be adjusted in 50 mm increments in Ø18 holes.
Miniflex offers easy handling with a weight of only 13.7kg and minimal storage space with a width of only 50mm!
With a width of 50 mm and a height of 75 mm, the lifting eye can also ensure that the lifting beam can be used by all types of crane hooks.
Total length 125 cm, width 5 cm, height 27 cm.

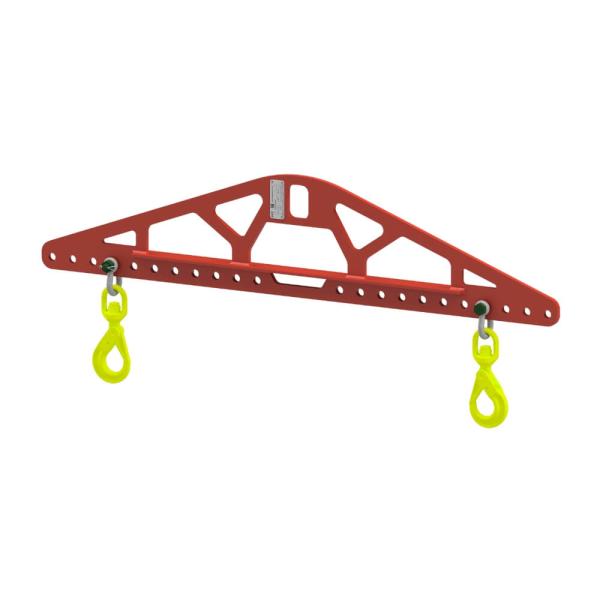

The yoke is excl. 2 tonnes of shackles and hooks.
Translated with DeepL.com (free version)
Product specifications
| Product type | Lifting Beam |
| Model | Miniflex |
| EN-Norm | EN 13155 |
| Safety factor | 2:1 |
| Color | Orange |
| Material | |
| Surface treatment | Painted |
| Remark | |
| Certifikat | |
| Unit | Stk |
| Customs Code |
Add to order
Name
WLL (kg)
Length (m)
Weight (kg)
Expected delivery time
Stock status
Price
WLL (kg)
1000
Length (m)
1.25
Weight (kg)
0
Expected delivery time
1-2 days
local_shipping Produced when ordered
Login needed
Login needed
Miniflex Lifting Beam
Number
kr. 5.675,00
