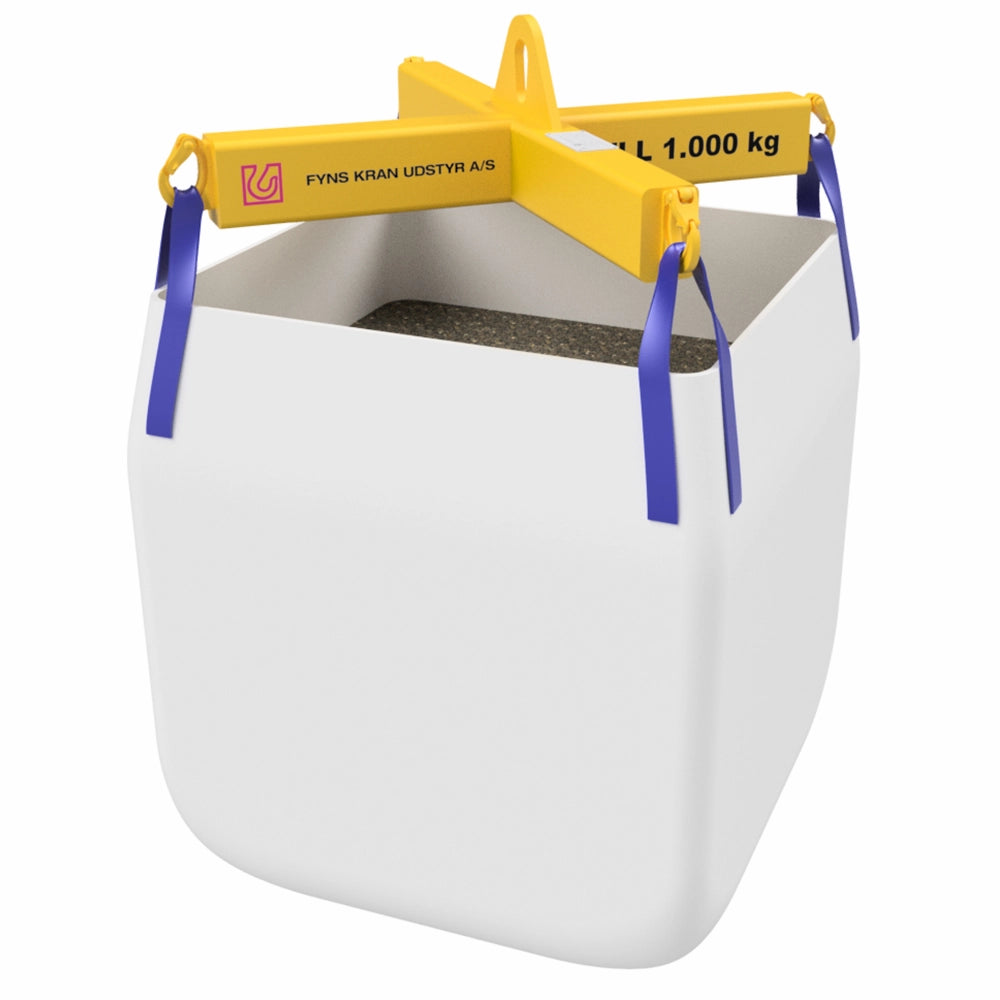

Stor hvid sæk med gul løfteramme og blå stropper, kapacitet 1.000 kg, "FYNS KRAN UDSTYR A/S".

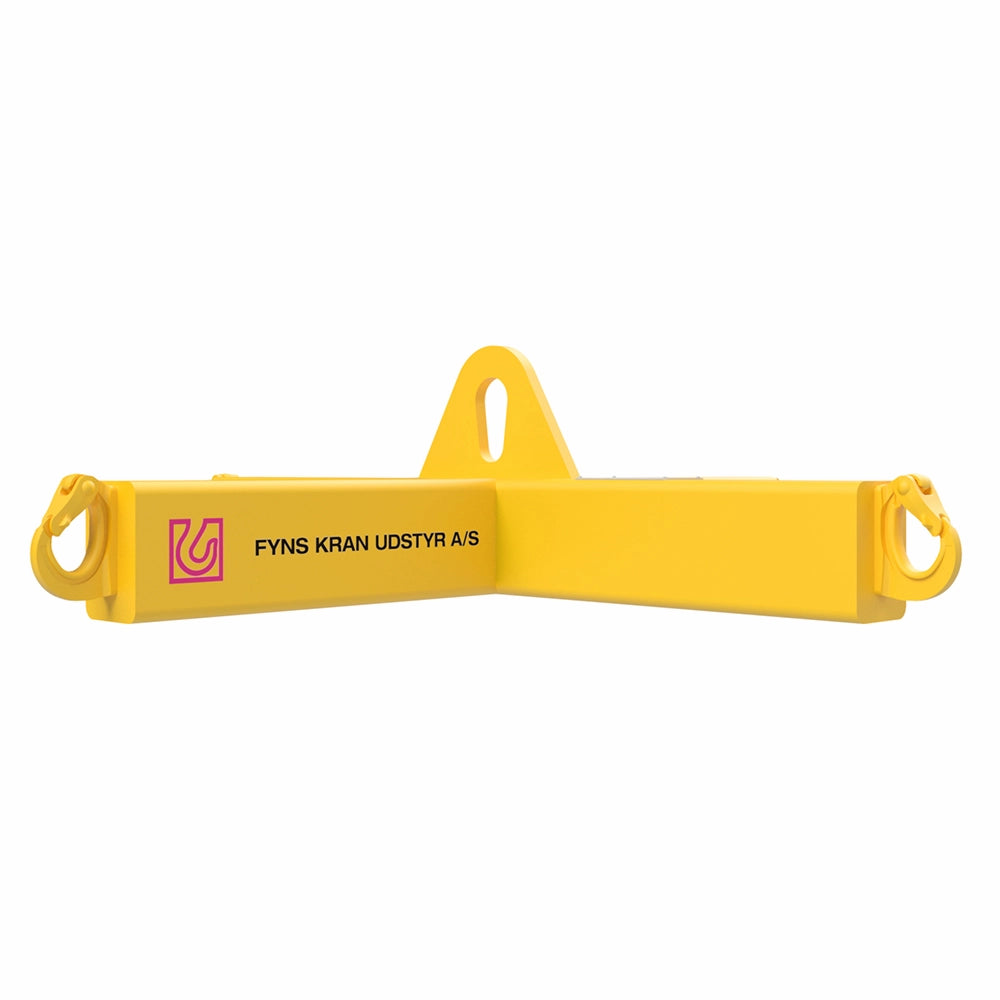

Gul løfteramme med kroge, tekst "FYNS KRAN UDSTYR A/S" og "WLL 1.000 kg."

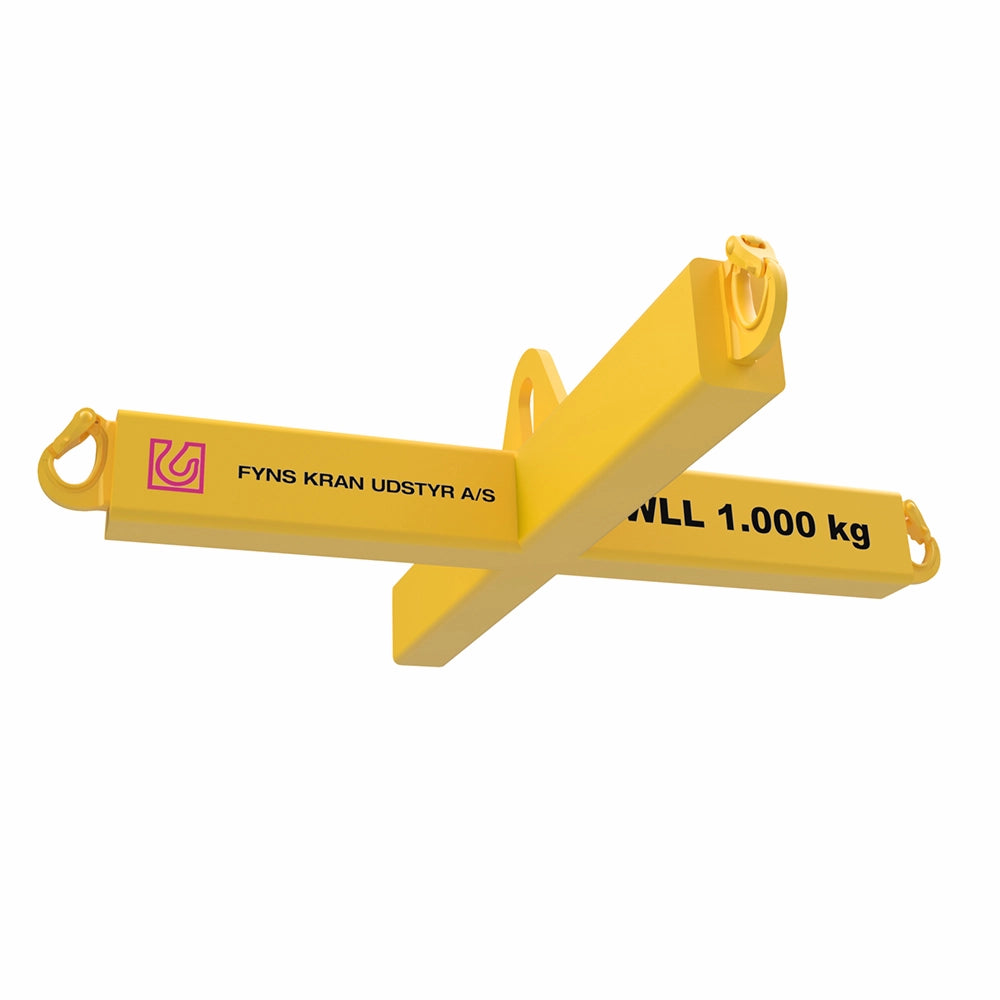

Gul løfteramme med kroge, vægtgrænse 1.000 kg, "FYNS KRAN UDSTYR A/S" trykt på rammen.

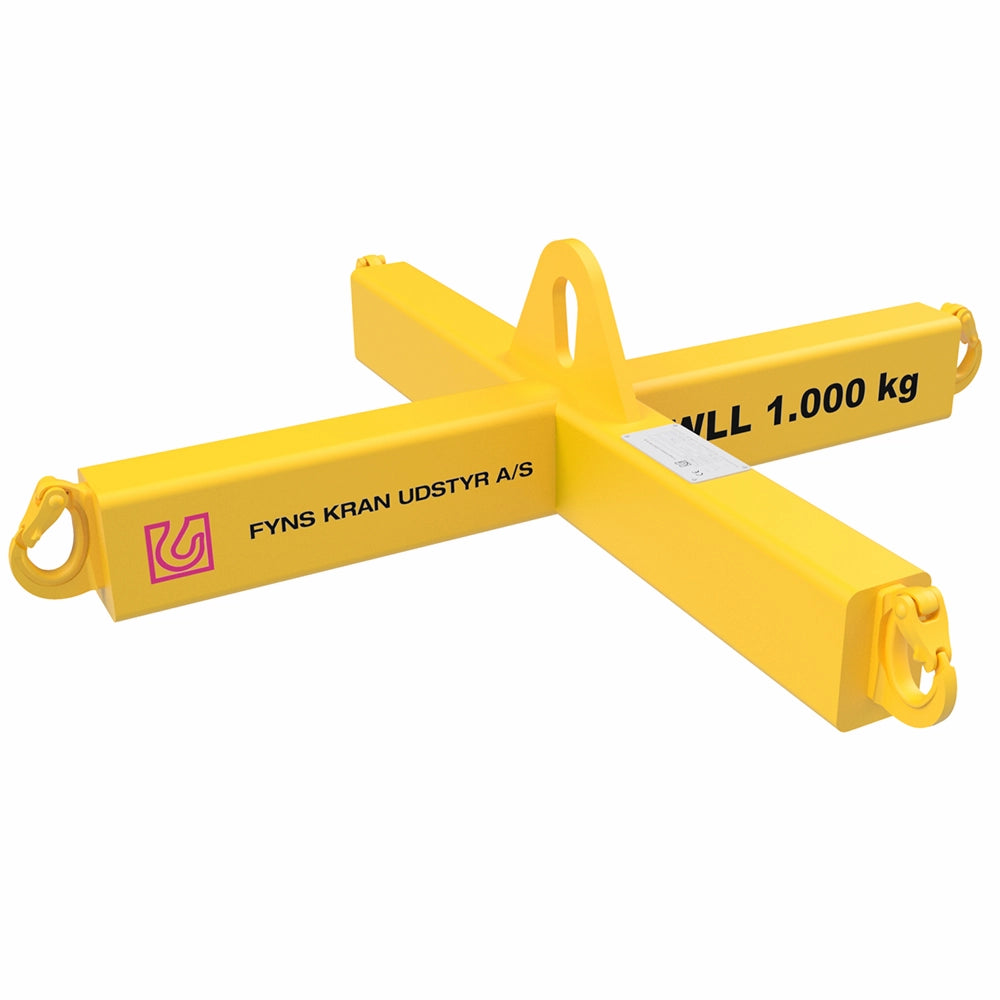

Gul løfteramme med teksten "FYNS KRAN UDSTYR A/S" og "WLL 1.000 kg".

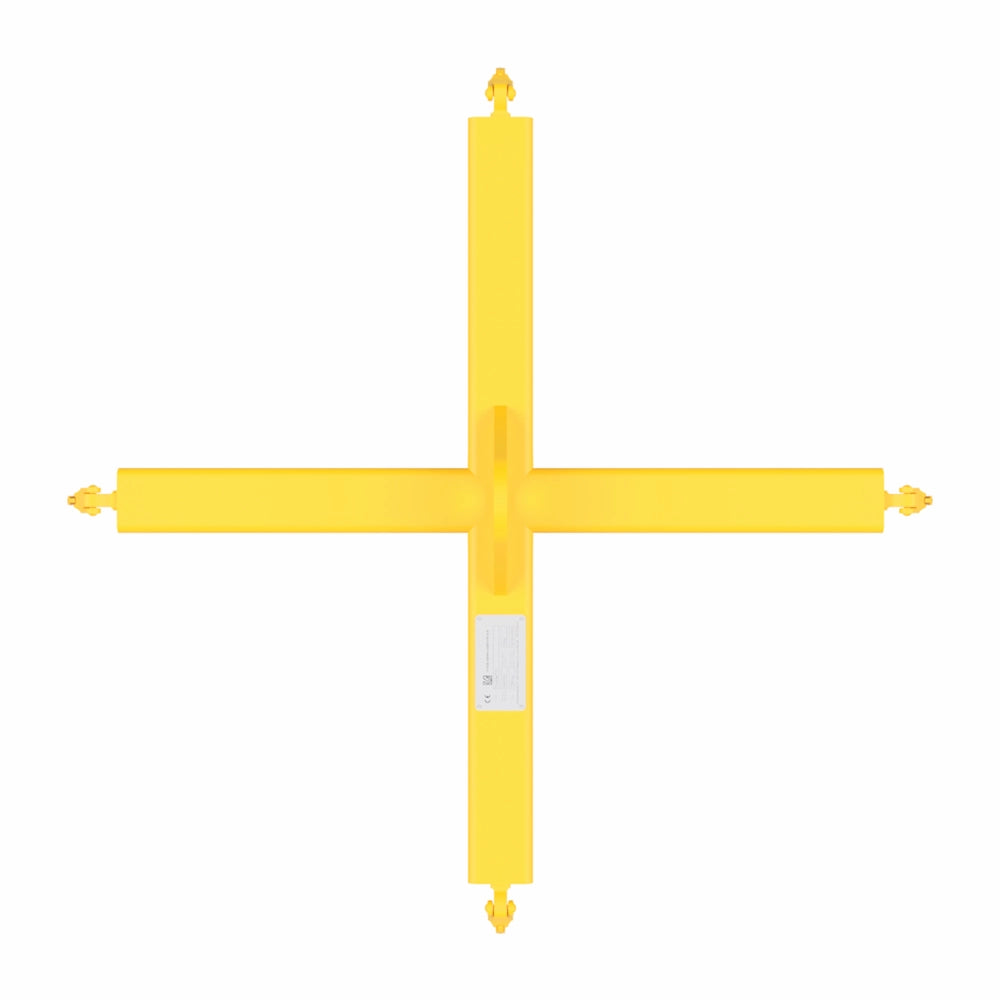

Gul løfteramme i krydsform med kroge i hver ende, vægtbegrænsning på 1.000 kg.

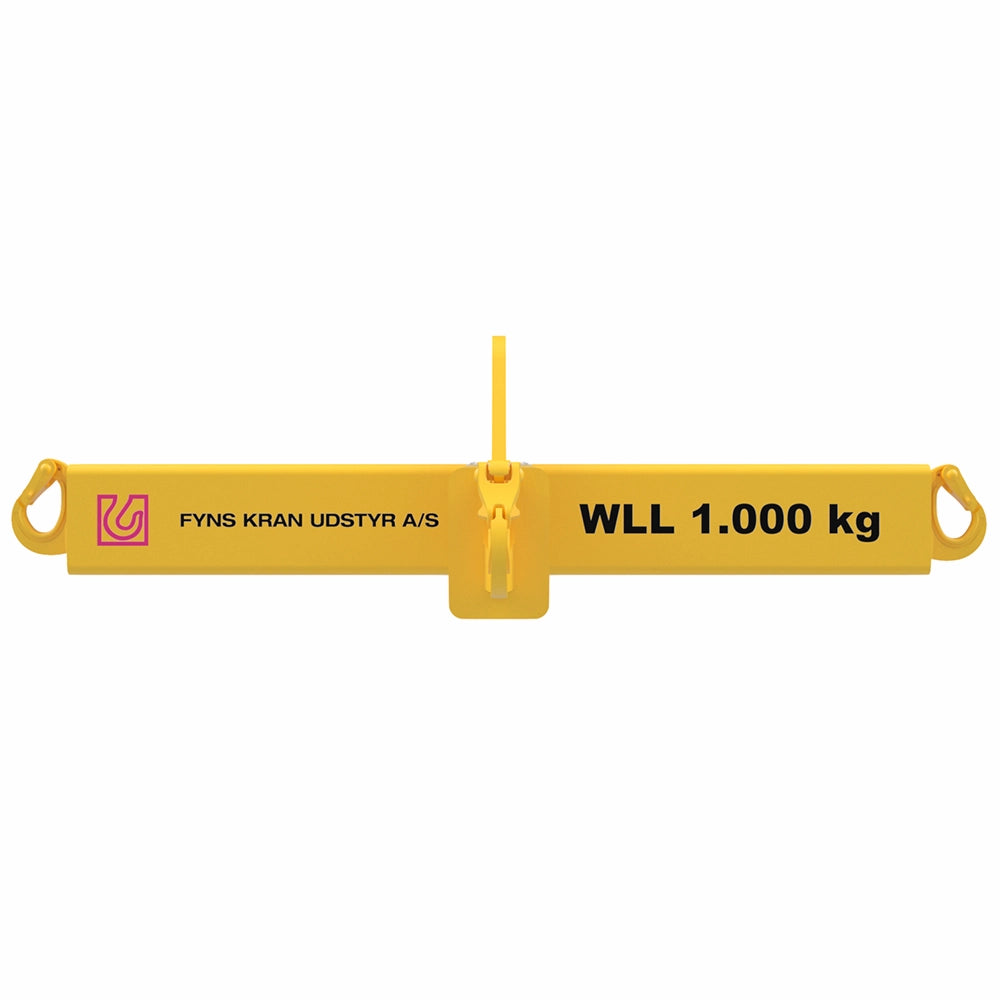

Gul løfteramme med "FYNS KRAN UDSTYR A/S" og "WLL 1.000 kg" trykt på.

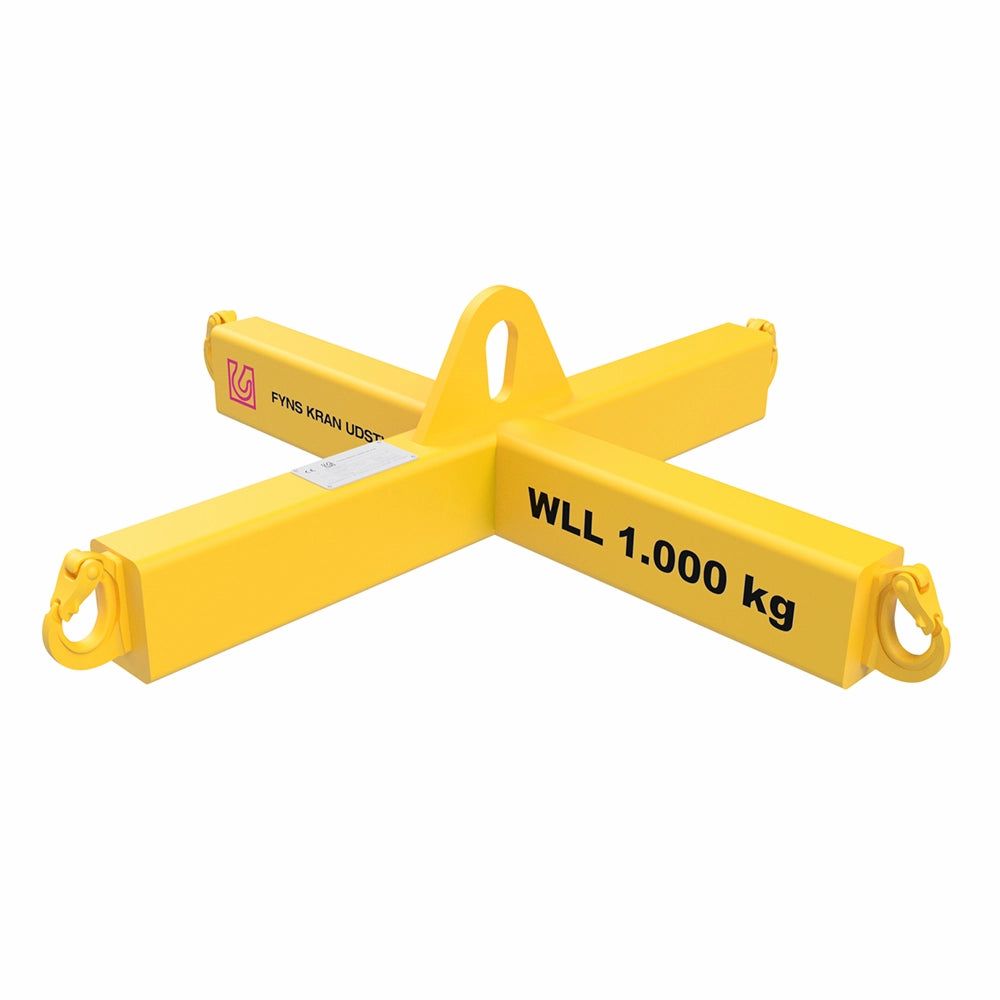

Gul løfteramme med kroge og "FYNS KRAN UDSTYR A/S" trykt på.

Brdr. Markussens Metalvarefabrik

Big Bag åg type B10 (M-1T/1)

SKU: 10007589
Quantity:
Add to inquiry
Already an user? Log in here
In remote storage
Download user manual
Download technical data

Product description

Reliable lifting equipment for demanding projects

This Big Bag lifting beam features four fixed suspension points that attach directly to big bags, providing stable handling for various lifting tasks. Manufactured in Denmark by Fyns Kran Udstyr A/S, the product arrives with a painted finish that protects the surface. The beam measures 1,000 mm in length and carries a CE marking with an EasyCert certificate, confirming compliance with the Machinery Directive (MD 2006/42/EF).

  • WLL of 1,000 kg for secure løft
  • Four fixed suspension points ensure direct attachment
  • Painted surface finish protects against environmental factors
  • Safety factor of 2:1 built into design
  • CE marked with EasyCert certificate for compliance
  • Manufactured in Denmark with reliable delivery times

Practical advantages for your operations

The fixed suspension points deliver enhanced stability during lifting, reducing movement and improving control. Danish manufacturing ensures consistent quality standards and quick availability. The painted finish extends the product's lifespan by protecting against corrosion and wear. CE certification provides documented compliance with EU safety requirements, while the 2:1 safety factor adds an extra margin of reliability to the stated WLL of 1,000 kg.


Explore Fixed Lifting Beams for additional løftegrej options.

Specifications

WLL in kg 1000
Length in mm 1000
Color Gul / Yellow
Surface treatment N/A
Standardnorm Produced in accordance with the Machinery Directive (MD 2006/42/EC)
Alternative SKU 7935302101
