Crosby BlokCam is part of the American Crosby group and is the manufacturer of both the BlokCam and BlokAlert systems. BlokCam is a simple and innovative wireless camera system that can be quickly and easily installed on either the crane's hook block, boom tip or even in interaction with the Lifting Gear to give the crane operator the opportunity to see and hear the load and the surroundings from the location the wireless BlokCam system has. Every day, the BlokCam systems are used for thousands of lifts and in all kinds of weather.

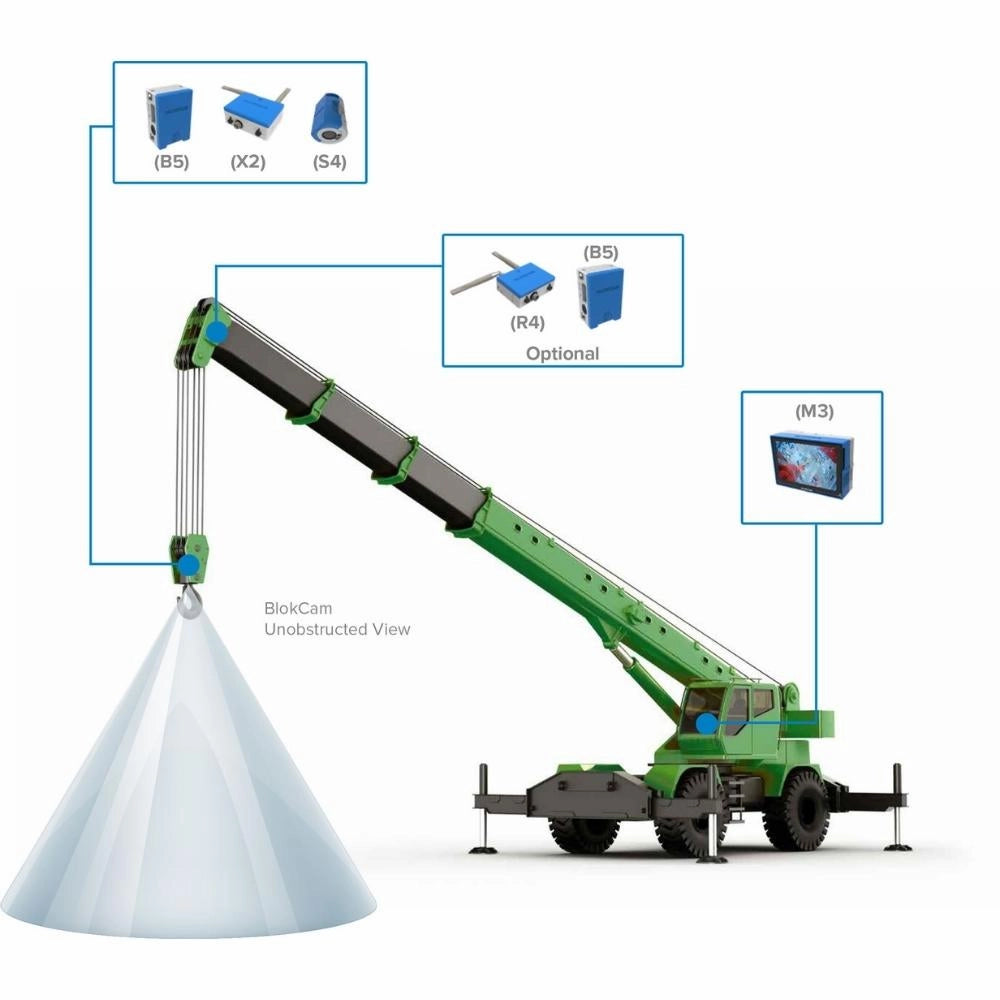

BlokCam M3 - The first fully modular system compatible with telescopic and mobile cranes.

BlokCam M3 is specifically designed for the mobile and crawler market and is perfect for a wide range of cranes – installation can be done in just five minutes.

BlockCam M3 is suitable for e.g. Mobile cranes, port cranes, container cranes and mobile gantry cranes, etc

Features

Click and see all BlokCam M3 features

Specially designed for the mobile and crawler market
Can be assembled and disassembled in 5 minutes.
Powerful neodymium magnets for mounting.
The lens in the camera has autofocus and always provides a clear view of the load and the surrounding area under the hook.
1080p resolution (HD).
Sound from sensor to receiver in e.g. cab.
Long-range transmission (possible distance depends on the surrounding environment).
Record on loop for up to 30 days.
Custom-built aluminum housing.
Built-in safety wire for extra safety during installation.
Hands-free operation.
Multi-position sensor for variable displays.
LED indicators.
Two batteries per system.
12 hour battery life (life depends on use and not least configuration).
Multi-voltage AC and DC inputs.
Durable all-weather design, manufactured to IP67 rating.
-20°C to 55°C (-4°F to 131°F) operating temperature.
Optional mobile app and 4G live streaming.
CE and FCC approved.
High-quality color-coded industrial connectors.
Color-coded connectors.

What comes with the BlokCam M3 system?

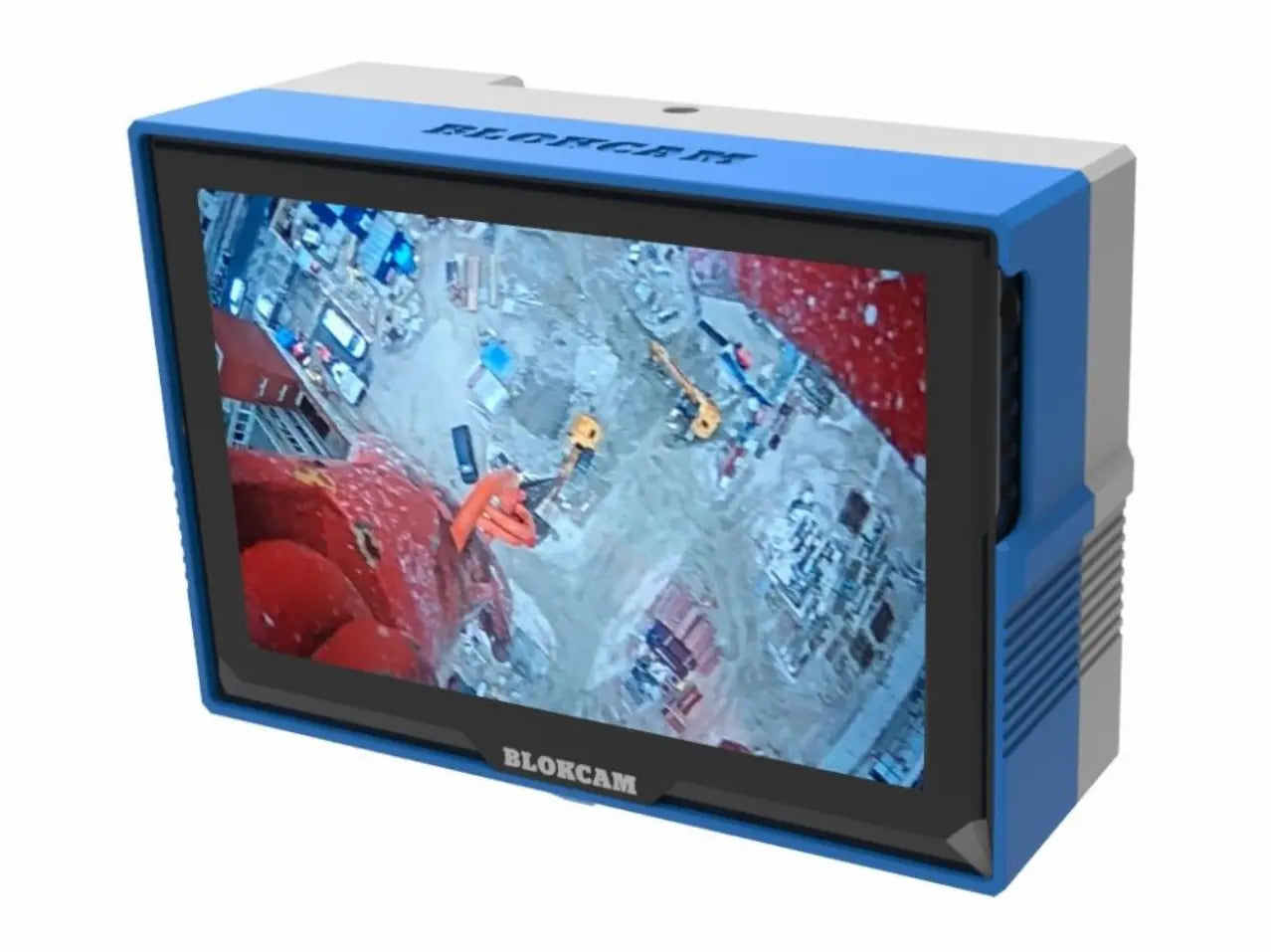

M3 MONITOR

The M3 is an all-in-one monitor that combines a monitor, repeater and processor in one design.

The M3 has a built-in HD screen with speakers, automatic adjustment of screen brightness and the option of both AC and DC input. The M3 transmits the image from the sensor to the crane operator in less than 0.2 seconds.

Size and weight: Height: 180 mm Width: 265 mm Depth: 115 mm Weight: 3300 g.

blokcam sensor s4 2 38bdccb1 36e7 48e4 b1b1 6f52986e2f4b

S4 SENSOR

The S4 is equipped with a 113° wide-angle lens. The low profile design, tool-free operation and rotatable lens make it easy to mount on all sides of the hook block.

Features: 1080p resolution (HD). 113° wide angle lens. Tool-free rotatable lens. Can be installed vertically on any surface of the hook block. Sound sensor that captures sound from all sides. Permanent neodymium magnets. Custom-built aluminum housing. Design in as low a profile as possible. IP67. CE and FCC approved.

Size and weight: Height: 100 mm Width: 75 mm Depth: 69 mm Weight: 1250 g.

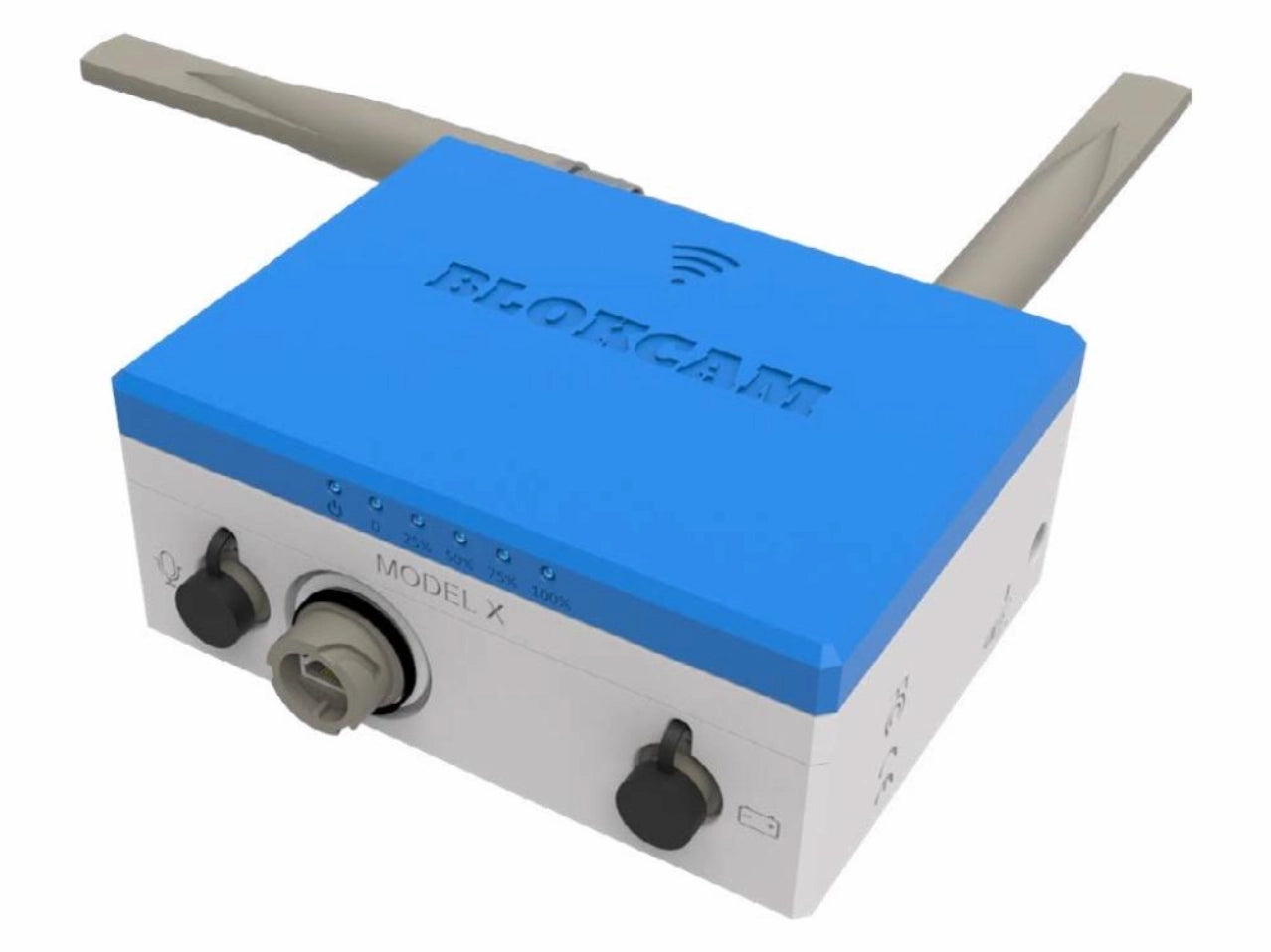

X2 TRANSMITTER

X2 is designed with a focus on the most important aspects of BlokCam. The combination of performance, specifications, aesthetics as well as the low profile design with a profile of only 71 mm makes it a must in a BlokCam system.

Features: Sends sound and video from the hook block to the crane operator. Enable recording. Permanent neodymium magnets. Industrial connectors in high quality. Long range transmission. Custom-built aluminum housing. Design with a profile of only 71 mm. 4G live streaming. Mobile app. LED indicators. IP67.

Size and weight: Height: 128 mm Width: 170 mm Depth: 71 mm Weight: 2100 g.

B5 BATTERY

B5 is a 19.2v battery pack that is constructed without hazardous materials. The smart design makes it easy to handle. These batteries are designed for use with the CS1 charging station from BlokCam.

Two batteries are included for each system. Features: Permanent neodymium magnets. Custom-built aluminum housing. Easy to insert, remove and charge. Compatible with the BlokCam CS1 charging station. Design with a profile of only 71 mm. Provides up to 12 hours of operating time. IP67.

Size and weight: Height: 128 mm Width: 170 mm Depth: 71 mm Weight: 2100 g.

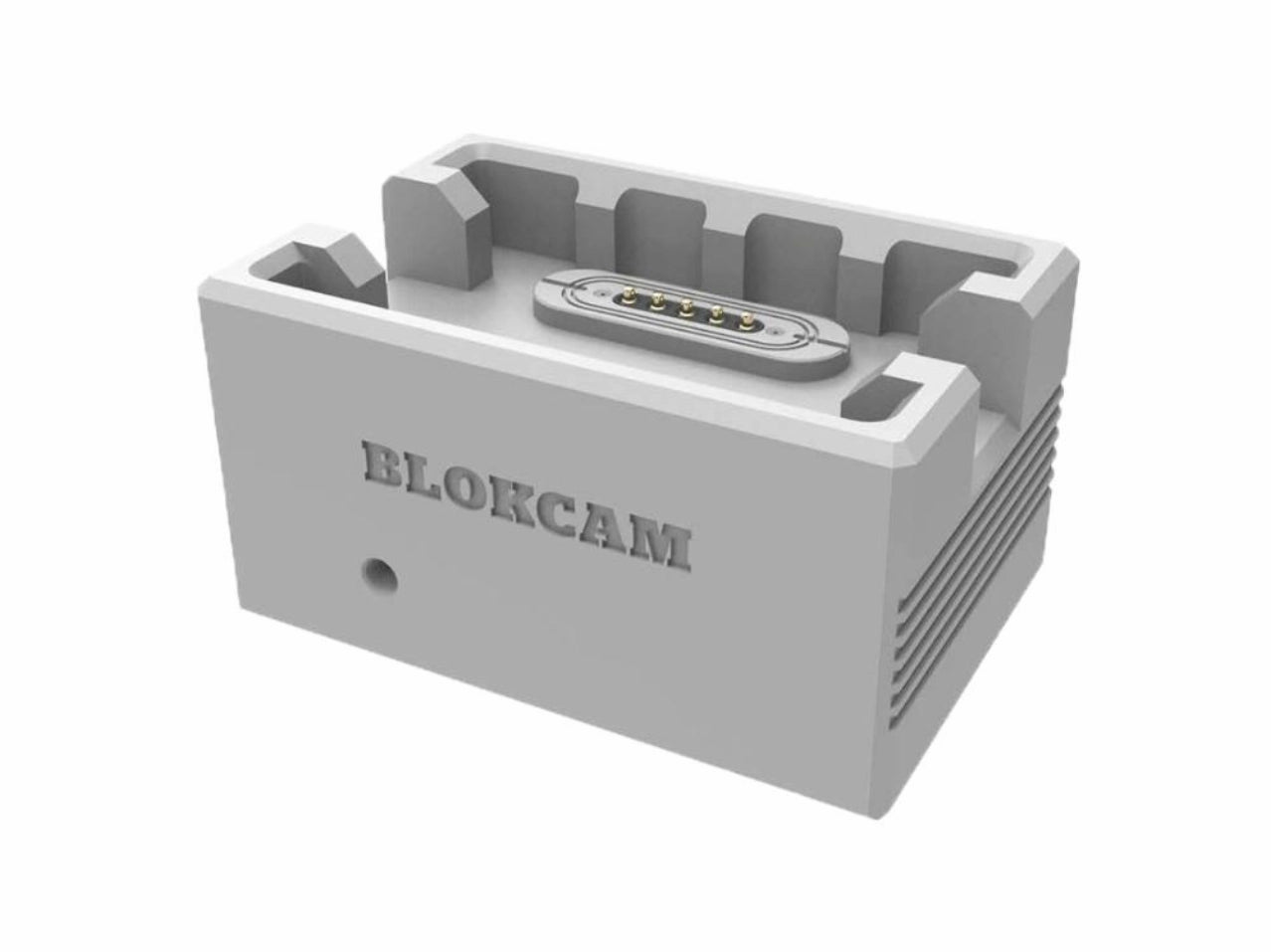

CS1 CHARGING STATION

The CS1 charging station is designed to improve the efficiency of BlokCam B5 batteries and the performance of the camera system.

Features: Specially built aluminum housing. Multi-voltage DC input. LED charging indicator. Drainage holes. Non-slip rubber foot pads. Color-coded input for foolproof installation.

Size and weight: Height: 85 mm Width: 150 mm Depth: 100 mm Weight: 1,650 g.

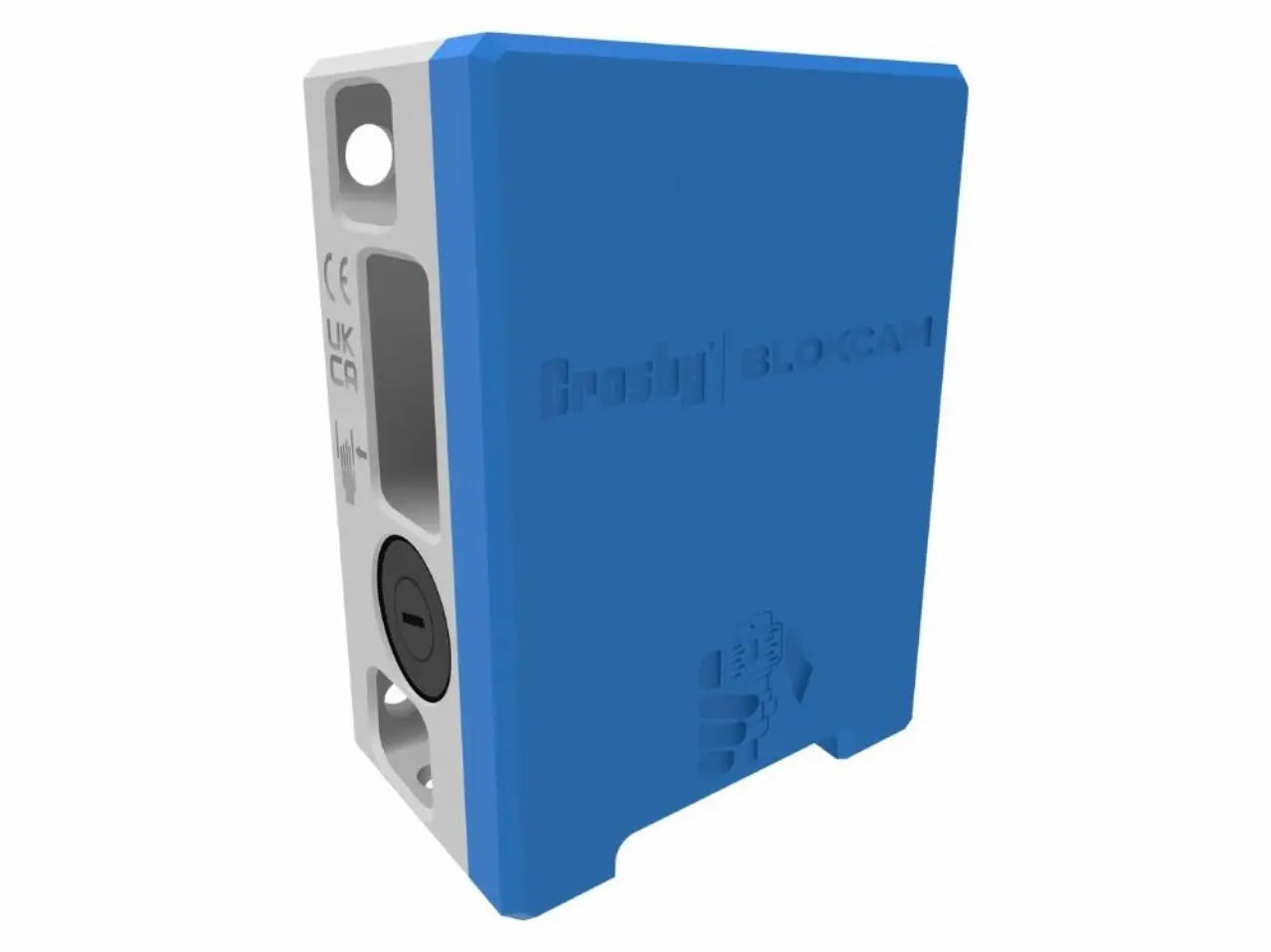

B6 BATTERY

B6 is a 14.54v battery pack that is constructed without hazardous materials. These batteries are also designed for use with a Li-Ion battery charger, making the CS1 charging station unnecessary. The smart design means that it can be inserted and removed without tools

Two batteries are included for each system. Features: Permanent neodymium magnets. Custom-built aluminum housing. Easy to insert, remove and charge. Easy access to security. Compatible with the BlokCam CS1 charging station. Design with a profile of only 71 mm. Provides up to 12 hours of operating time. IP67.

Size and weight: Height: 140 mm Width: 105 mm Depth: 65 mm Weight: 1600g.

What does a recording from a BlokCam look like?

Get the answer in the video just below:

How easy is it to mount the BlokCam M3?

Get the answer in the video just below:

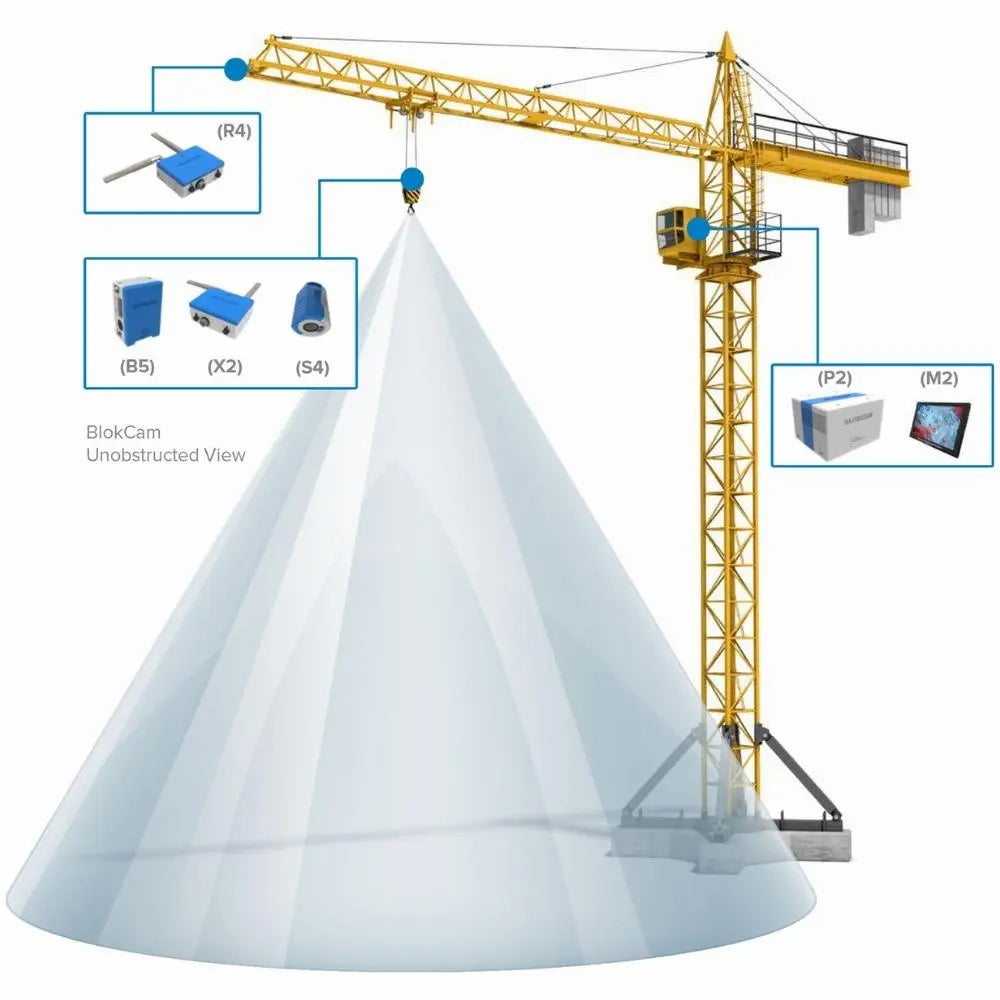

BlokCam X2 - The first fully modular system compatible with tower cranes

BlokCam X2 is designed to be easily and quickly installed on tower cranes and similar crane types. X2 can be installed in less than one hour and then gives the crane operator increased security and efficiency.

BlockCam X2 is designed for use with Tower Cranes but can be used on many other crane types.

Features

Click and see all BlokCam X2 features

Can be installed in less than an hour
Powerful neodymium magnets for mounting.
The lens in the camera has autofocus and always provides a clear view of the load and the surrounding area under the hook.
HD 1080p resolution.
Sound from sensor to receiver in e.g. cab.
Long-range transmission (possible distance depends on the surrounding environment).
Record on loop for up to 30 days.
Custom-built aluminum housing.
Built-in safety wire for extra safety during installation.
Hands-free operation.
Multi-position sensor for variable displays.
LED indicators.
Two batteries per system.
12 hour battery life (life depends on use and not least configuration).
Multi-voltage AC and DC inputs.
Durable all-weather design, manufactured to IP67 rating.
-20°C to 55°C operating temperature.
Optional mobile app and 4G live streaming.
CE and FCC approved.
High-quality color-coded industrial connectors.
Color-coded connectors.

What comes with the BlokCam X2 system?

M2 MONITOR

The M2 is a full 10.1-inch 16:9 LCD HD screen with built-in speakers and an HDMI input. It has 1280 x 800 pixels with automatic brightness control.

Features: Robust design. 10.1 inches. HD 1080p resolution. Built-in speakers

Size and weight: Height: 170 mm Width: 250 mm Depth: 29.6 mm Weight: 560 g.

S4 SENSOR

The S4 is equipped with a 113° wide-angle lens. The low profile design, tool-free operation and rotatable lens make it easy to mount on all sides of the hook block.

Features: 1080p resolution (HD). 113° wide angle lens. Tool-free rotatable lens. Can be installed vertically on any surface of the hook block. Sound sensor that captures sound from all sides. Permanent neodymium magnets. Custom-built aluminum housing. Design in as low a profile as possible. IP67. CE and FCC approved.

Size and weight: Height: 100 mm Width: 75 mm Depth: 69 mm Weight: 1250 g.

X2 TRANSMITTER

X2 is designed with a focus on the most important aspects of BlokCam. The combination of performance, specifications, aesthetics as well as the low profile design with a profile of only 71 mm makes it a must in a BlokCam system.

Features: Transmit sound and video from the hook block to the crane operator. Enable recording. Permanent neodymium magnets. Industrial connectors in high quality. Long range transmission. Custom-built aluminum housing. Design with a profile of only 71 mm. 4G live streaming. Mobile app. LED indicators. IP67.

Size and weight: Height: 128 mm Width: 170 mm Depth: 71 mm Weight: 2100 g.

B5 BATTERY

B5 is a 19.2v battery pack that is constructed without hazardous materials. The smart design makes it easy to handle. These batteries are designed for use with the CS1 charging station from BlokCam.

Two batteries are included for each system. Features: Permanent neodymium magnets. Custom-built aluminum housing. Easy to insert, remove and charge. Compatible with the BlokCam CS1 charging station. Design with a profile of only 71 mm. Provides up to 12 hours of operating time. IP67.

Size and weight: Height: 128 mm Width: 170 mm Depth: 71 mm Weight: 2100 g.

CS1 CHARGING STATION

The CS1 charging station is designed to improve the efficiency of BlokCam B5 batteries and the performance of the camera system.

Features: Specially built aluminum housing. Multi-voltage DC input. LED charging indicator. Drainage holes. Non-slip rubber foot pads. Color-coded input for foolproof installation.

Size and weight: Height: 85 mm Width: 150 mm Depth: 100 mm Weight: 1,650 g.

B6 BATTERY

B6 is a 14.54v battery pack that is constructed without hazardous materials. These batteries are also designed for use with a Li-Ion battery charger, making the CS1 charging station unnecessary. The smart design means that it can be inserted and removed without tools

Two batteries are included for each system. Features: Permanent neodymium magnets. Custom-built aluminum housing. Easy to insert, remove and charge. Easy access to security. Compatible with the BlokCam CS1 charging station. Design with a profile of only 71 mm. Provides up to 12 hours of operating time. IP67.

Size and weight: Height: 140 mm Width: 105 mm Depth: 65 mm Weight: 1600g.

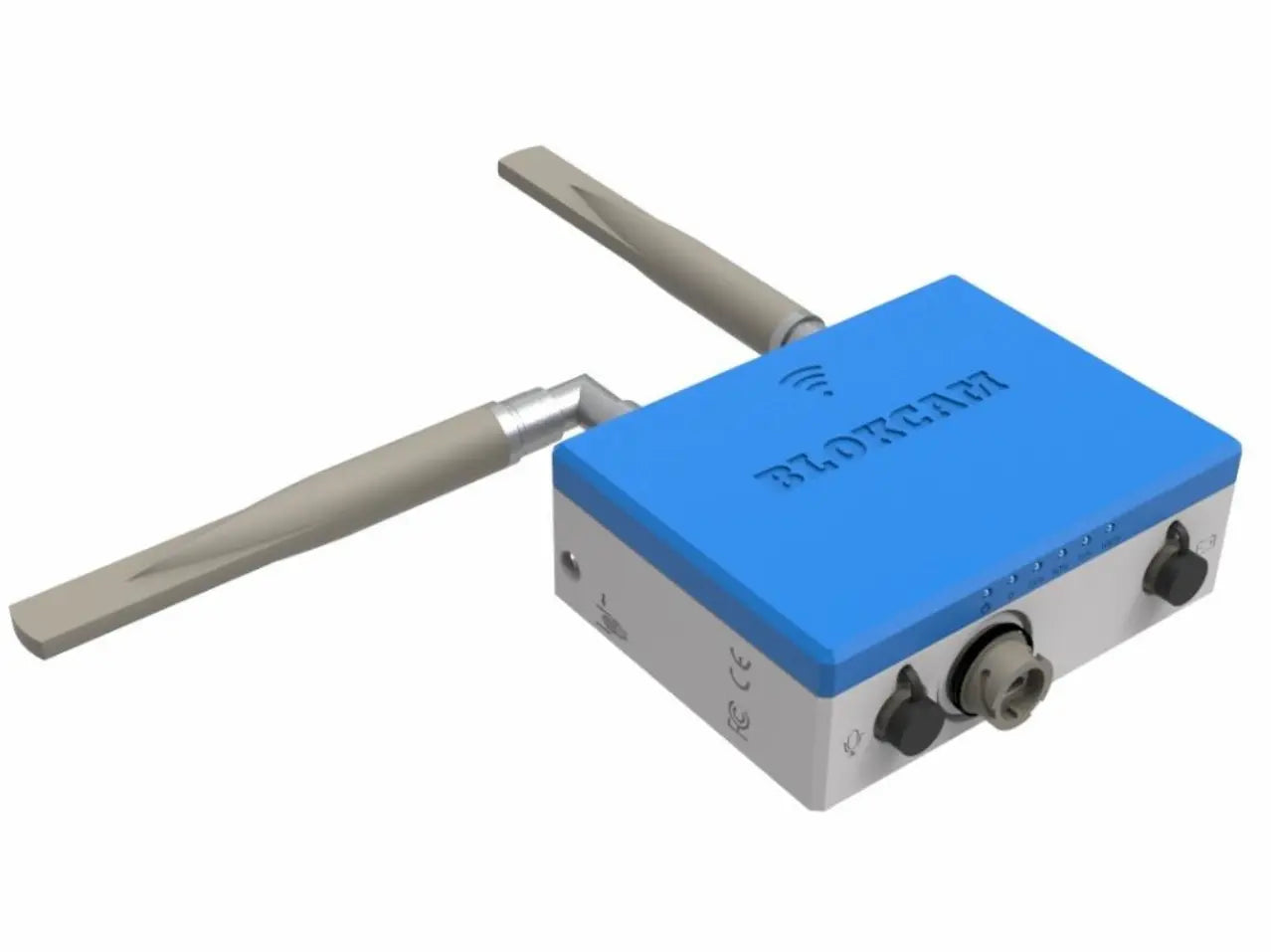

R4 REPEATER

Depending on the type of crane installation, the repeater is mounted on the jib, boom tip or cab. The repeater is specially designed to amplify the fast and wireless signal.

Features: Multiple mounting options for universal use. Industrial connectors in high quality. Designed for fast, wireless and telescopic deployment. Long range transmission. Design with a profile of only 58 mm. Custom-built aluminum housing. IP67.

Size and weight: Height: 128 mm Width: 170 mm Depth: 58 mm Weight: 1800g.

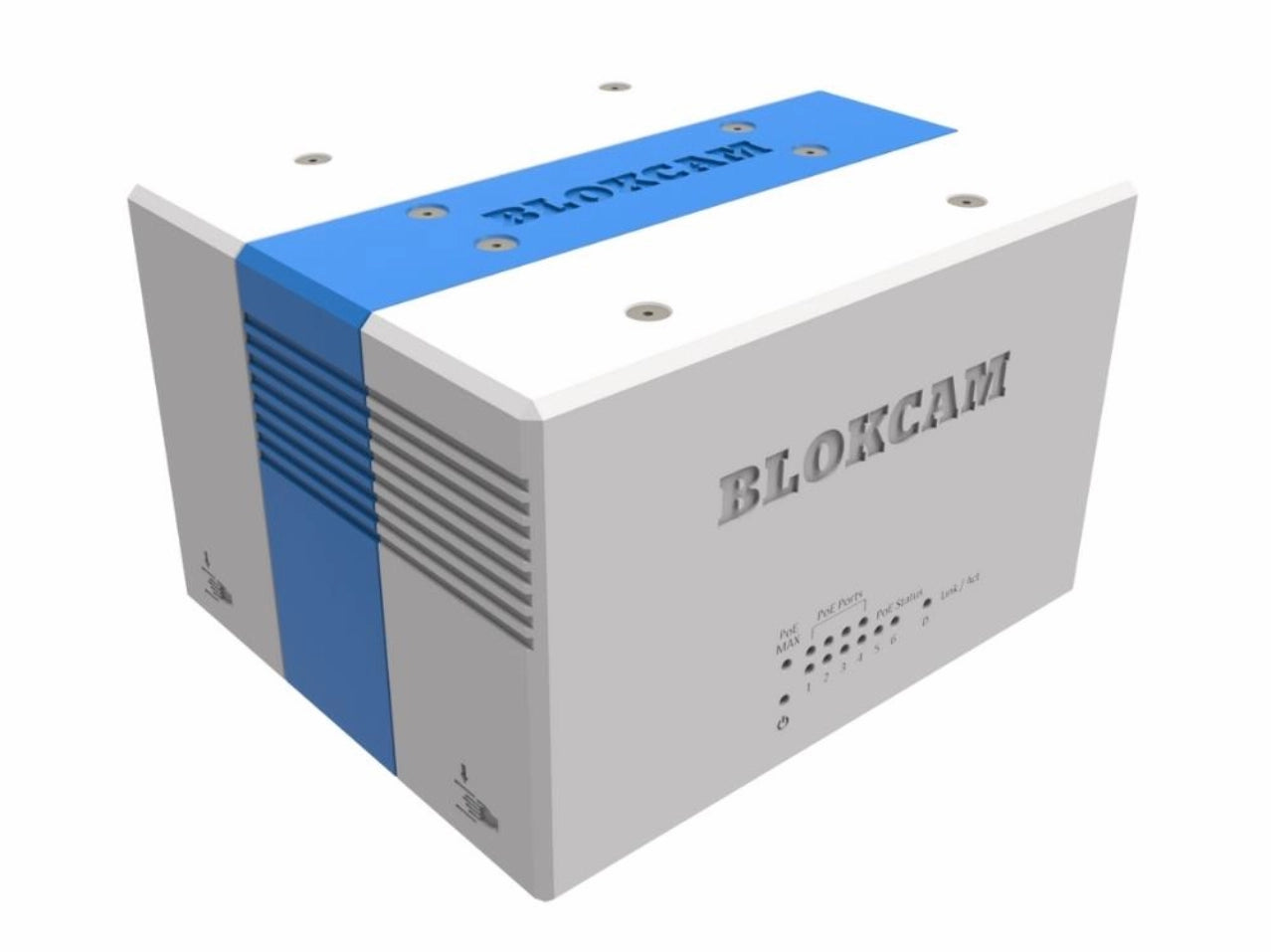

P2 PROCESSOR

P2 is specially built for the X2 system and enables HD video and audio to be displayed on the M2 screen with less than 0.2 second latency (delay). The design enables both AC and DC power supply with the option of several different voltages, making the BlokCam system compatible with almost all crane types. P2 also supplies the M2 screen with power and it does not need an independent power supply.

Features: Multiple mounting options for universal use. Connect and use. Provides low latency. Single and dual screen mode option. Multi-voltage AC and DC inputs. Custom-built aluminum housing. Color-coded inputs for foolproof installation.

Size and weight: Height: 121 mm Width: 190 mm Depth: 161 mm Weight: 3800g.
