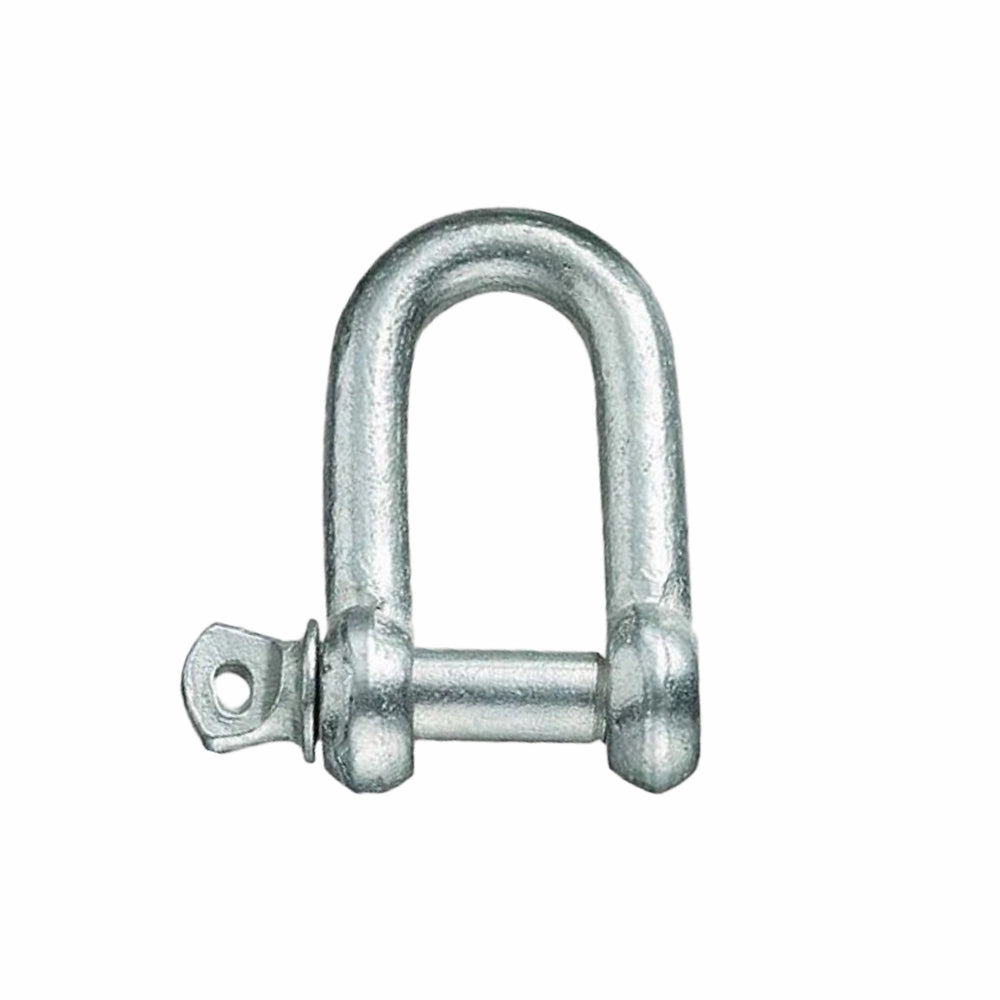

D-Shackle Galvanized - MBL 2.10T
Product description
Shackle not approved for lifting
The shackle has an MBL of 2,100 kg. The surface is galvanised. It is not approved for lifting and must not be used as lifting equipment.
- MBL 2,100 kg
- Pin diameter 25 mm
- Jaw width 50 mm
- Material: Steel
- Surface: galvanised
How to read the figures
The MBL is the minimum breaking load, the load at which the shackle fails according to the source. It is not a WLL, and the figure must not be used to calculate a lift. If the shackle is to be part of a lift, choose a shackle with a documented WLL and an approval for lifting.
See the full range of shackles.
Specifications
| WLL in kg | N/A |
| MBL in kg | 2100 |
| Grade | 2 |
| Jaw size in mm | 50 |
| Approved for lifting | Nej / No |
| Surface treatment | N/A |
| Pin size in mm | 25 |
| Standardnorm | N/A |
| Alternative SKU | 1511010000 |
