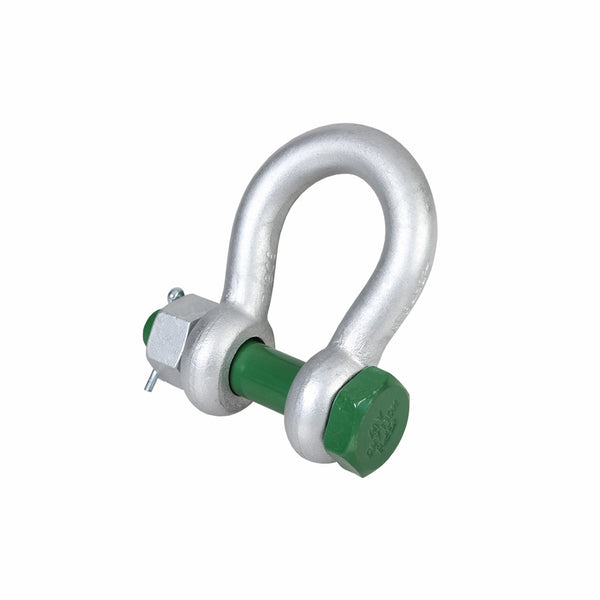

Green Pin Shackle G-4163 Gr. 3 - 25.0T

Engineered for heavy-duty performance

The Green Pin Shackle G-4163 Gr. 3 delivers a Working Load Limit of 25,000 kg, backed by a safety factor of 6:1 for reliable performance in demanding lifting tasks. Constructed from high-strength steel with Class 3 classification, this shackle combines robust material properties with a hot-dip galvanized surface treatment for enhanced corrosion resistance. The 50 mm pin diameter and 74 mm gap accommodate various equipment configurations, while compliance with EN 13889 ensures adherence to recognized industry standards.

• Working Load Limit of 25,000 kg with 6:1 safety factor
• High-strength steel construction with hot-dip galvanized finish
• EN 13889 compliant and US Federal Specification certified

Built for challenging industrial scenarios

This shackle operates within a temperature range of -40˚C to +200˚C, maintaining performance across diverse environmental conditions. The safety bolt design provides additional security during lifting tasks, while the galvanized surface extends service life in harsh settings. Certificates including 2.1, 2.2, 3.1, MTC, DNV 2.7.1, DNV 2.22, and CE are available, providing comprehensive documentation for quality assurance and regulatory compliance in industrial projects requiring verified equipment specifications.
