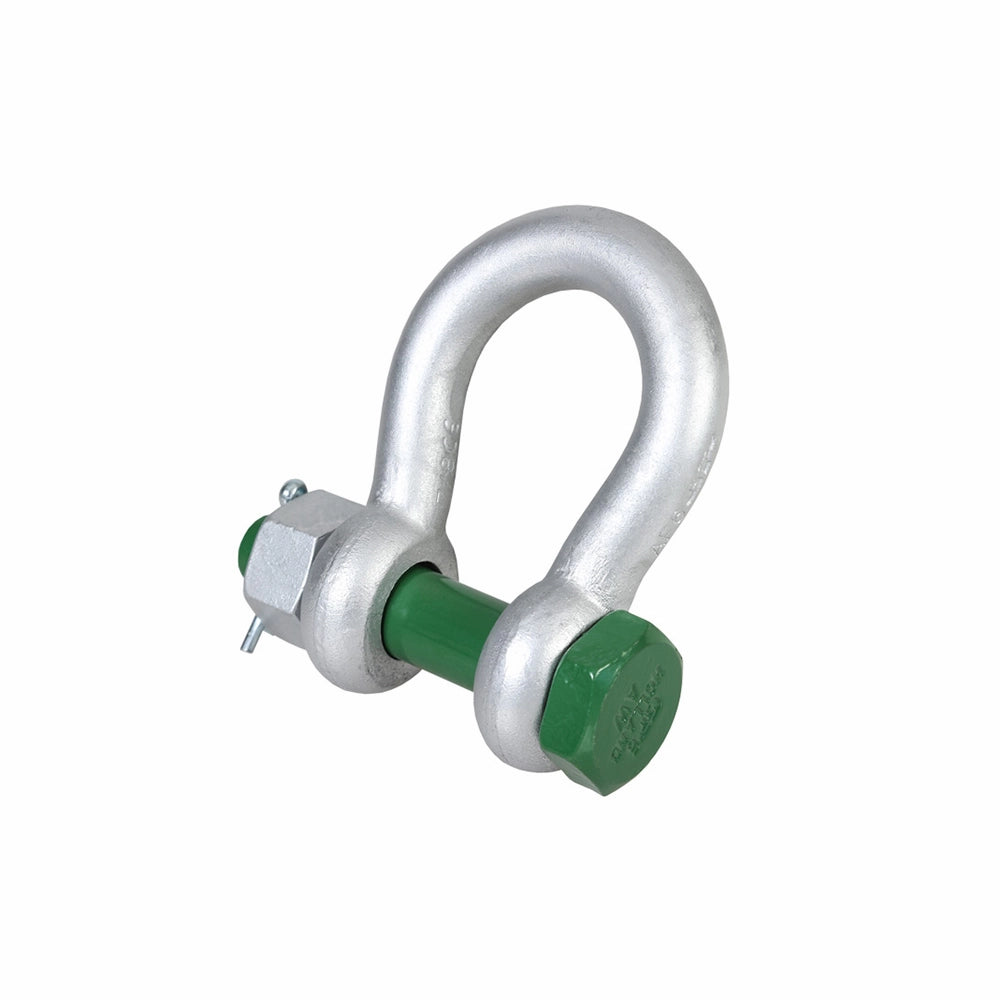

Green Pin Shackle G-4163 Gr. 3 - 55.0T
Product description
Built for demanding lifting tasks
The Green Pin Shackle G-4163 Gr. 3 delivers a Working Load Limit of 55.0T, making it suitable for heavy lifting scenarios. Constructed from high-strength steel in Class 3, it features a safety factor of 6:1, ensuring substantial safety margins during use. Confirmed for lifting applications, this shackle includes a safety bolt for enhanced security, providing reliable performance in demanding projects.
- Working Load Limit: 55.0T capacity
- Safety factor: 6:1 margin
- Pin diameter: 70mm for secure connection
- Gap width: 105mm load compatibility
Engineered for reliability and longevity
The hot-dip galvanized surface provides enhanced corrosion resistance, ensuring durability in harsh environments. Operational across temperatures from -40°C to +200°C, this shackle conforms to EN 13889 and US Fed Spec RR-C-271 Type IVA Class 3, Grade A standards. Certificates available include 2.1, 2.2, 3.1, MTC, DNV 2.7.1, DNV 2.22, and CE, offering comprehensive documentation for quality assurance.
For similar products, please visit Shackles.
Specifications
| WLL in kg | 55000 |
| Grade | 6 |
| Jaw size in mm | 105 |
| Model | G-4163 |
| Approved for lifting | Ja / Yes |
| Surface treatment | N/A |
| Pin size in mm | 70 |
| Standardnorm | EN 13889 |
| Alternative SKU | 1505555000 |
