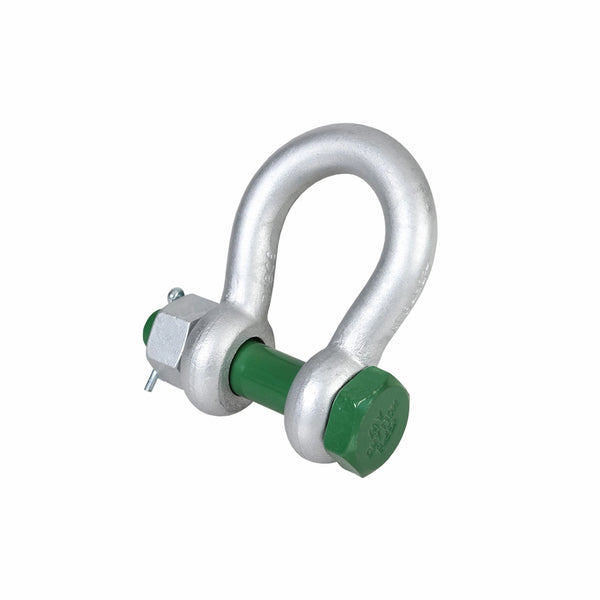

Green Pin Shackle G-4163 Gr. 3 - 6.50T

Engineered for demanding load handling

The Green Pin Shackle G-4163 Gr. 3 features a Working Load Limit of 6,500 kg, establishing secure capacity for critical lifting tasks. With a safety factor of 6:1, this shackle handles loads substantially beyond its rated capacity, providing exceptional safety margins. Constructed from high-strength steel with a hot-dip galvanized surface, it delivers corrosion resistance and an extended service life in challenging environments ranging from -40°C to +200°C.

• Working Load Limit: 6500 kg for secure load handling
• Safety factor 6:1 ensures high operational safety margins
• Hot-dip galvanized surface provides enhanced corrosion protection
• High-strength steel construction, class 3, ensures durability
• Complies with EN 13889 and US Federal Specification standards
• Temperature range -40°C to +200°C for versatile applications

Certified reliability for professional tasks

This shackle meets EN 13889 and US Federal Specification RR-C-271 Type IVA Class 3, Grade A standards, confirming compliance with rigorous industry requirements. The 25 mm pin diameter and 36 mm gap accommodate various connection points, while the integrated safety bolt enhances security during operations. Certificates available include 2.1, 2.2, 3.1, MTC, DNV 2.7.1, DNV 2.22, and CE, providing documented verification for quality-critical projects and scenarios.
