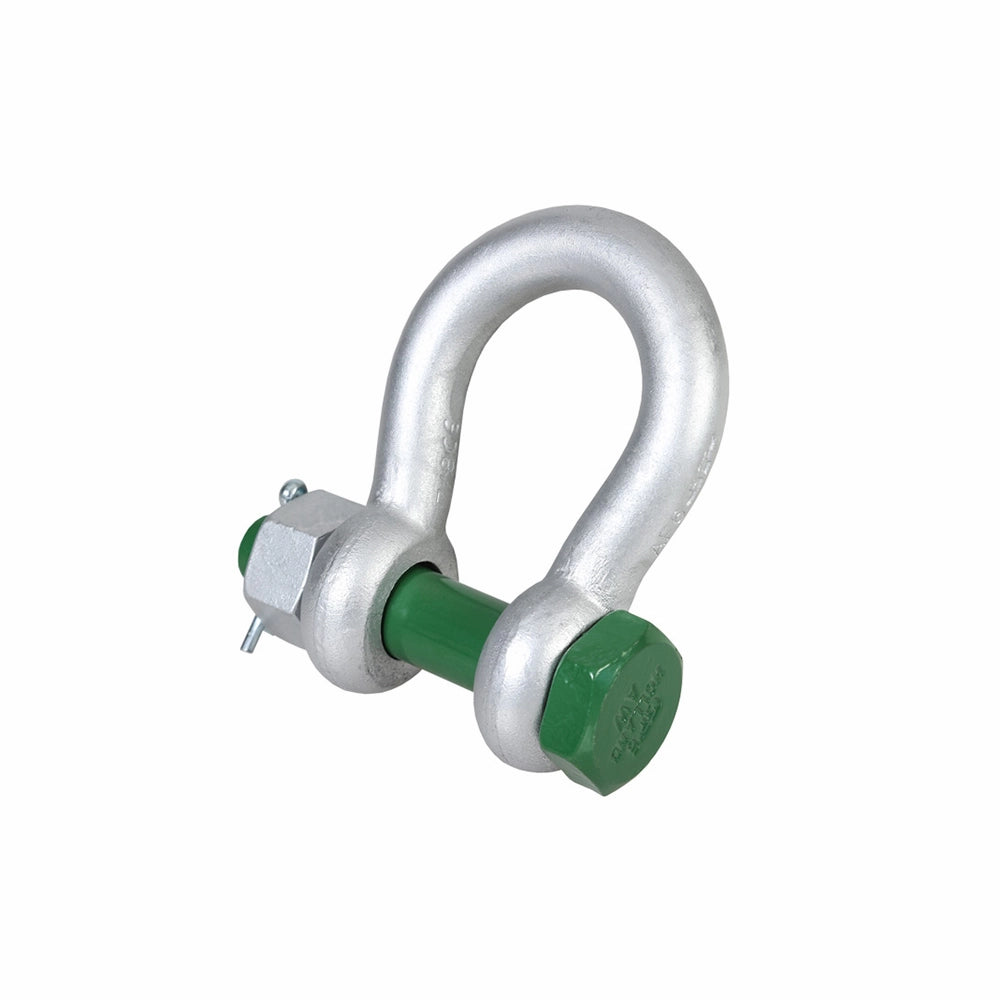

Green Pin Shackle G-4163 Gr. 3 - 8.50T
Stock by location: ● Odense: 47 ● Aalborg: 10 ● Copenhagen: 12 ● Esbjerg: 6
Product description
Built for demanding lifting tasks
This Green Pin G-4163 shackle combines high-strength steel Class 6 construction with hot-dip galvanized surface protection, delivering reliable performance for lifting tasks of up to 8.5 tons. The design incorporates a 6:1 safety factor, meaning the minimum breaking load is six times the working load limit, providing a substantial safety margin for demanding scenarios.
- High-strength steel Class 6 for robust durability
- Working load limit of 8.5 tons capacity
- Safety factor 6:1 ensures reliable load handling
- Hot-dip galvanized finish resists corrosion effectively
Certified for professional applications
Compliant with EN 13889 and US Fed Spec RR-C-271 Type IVA Class 3, Grade A standards, this shackle includes a safety bolt for enhanced security. It operates reliably within temperature ranges from -40˚C to +200˚C. Available certificates include 2.1, 2.2, 3.1, MTC, DNV 2.7.1, DNV 2.22, and CE, ensuring comprehensive documentation for professional projects.
Please explore our Shackles collection for more options.
Specifications
| WLL in kg | 8500 |
| Grade | 6 |
| Jaw size in mm | 43 |
| Model | G-4163 |
| Approved for lifting | Ja / Yes |
| Surface treatment | N/A |
| Pin size in mm | 28 |
| Standardnorm | EN 13889 |
| Alternative SKU | 1505508500 |
