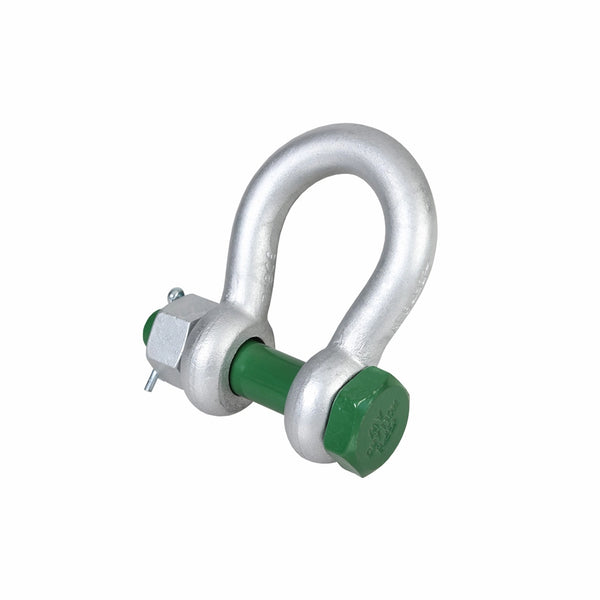

Green Pin Shackle G-4163 Gr. 3 - 85.0T
Product description
Heavy-duty capacity for industrial tasks
The Green Pin Shackle G-4163 Grade 3 is constructed from high-strength steel with a hot-dip galvanized surface, providing exceptional corrosion resistance and durability. With a Working Load Limit of 85,000 kg, this shackle handles demanding lifting tasks across various industrial scenarios. The safety factor of 6:1 ensures that the Minimum Breaking Load is six times the WLL, delivering a substantial safety margin for critical operations.
- High-strength steel construction for robust performance
- Hot-dip galvanized surface enhances longevity and corrosion resistance
- Working Load Limit of 85,000 kg capacity
- Safety factor 6:1 for enhanced operational security
- Safety bolt feature for additional load security
- Operates effectively from -40˚C to +200˚C temperature range
Certified standards and comprehensive documentation
This shackle complies with EN 13889 and US Fed Spec RR-C-271 Type IVA Class 3, Grade A, ensuring adherence to stringent international safety standards. Multiple certificates are available, including 2.1, 2.2, 3.1, MTC, DNV 2.7.1, DNV 2.22, and CE, providing comprehensive documentation for quality assurance and traceability. The pin diameter of 83 mm and a gap of 127 mm ensure proper fitting for various applications.
To explore related options, browse our Shackles collection.
Specifications
| WLL in kg | 85000 |
| Grade | 6 |
| Jaw size in mm | 127 |
| Model | G-4163 |
| Approved for lifting | Ja / Yes |
| Surface treatment | N/A |
| Pin size in mm | 83 |
| Standardnorm | EN 13889 |
| Alternative SKU | 1505585000 |
