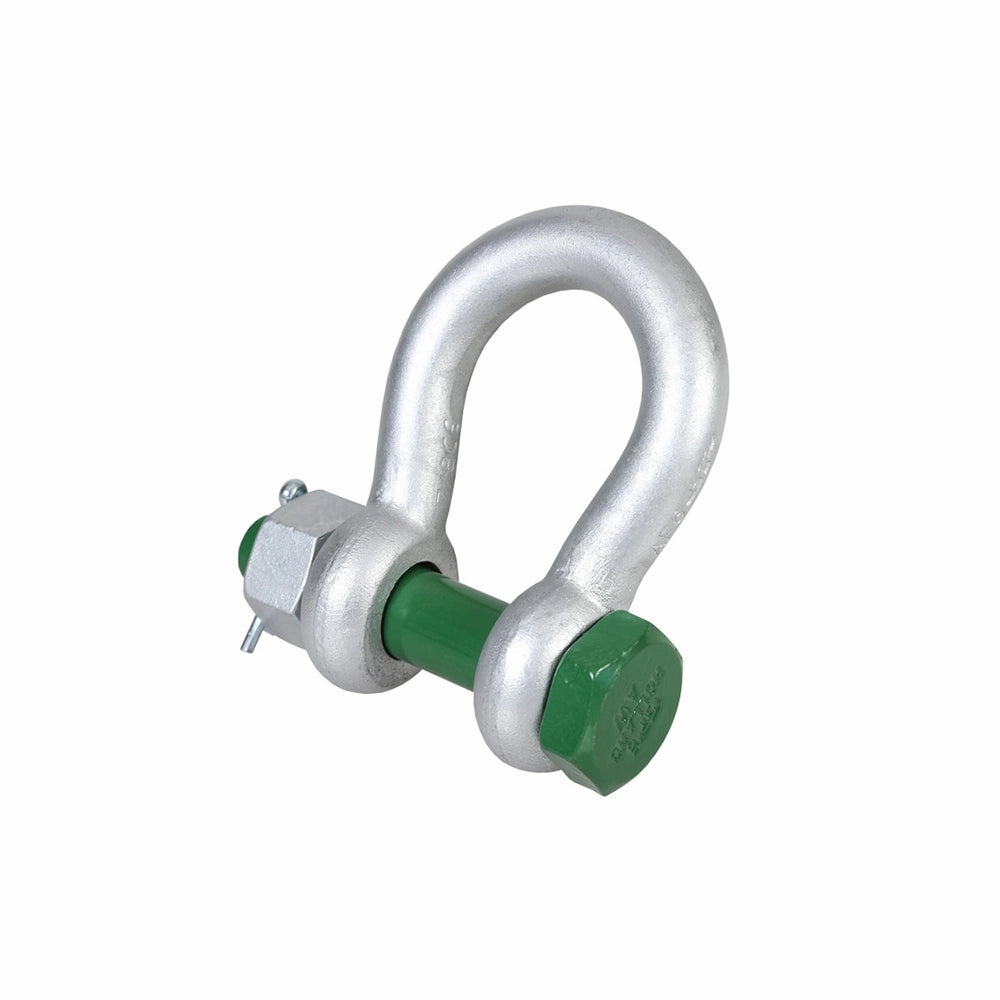

Green Pin Shackle G-4163 Gr. 3 - 9.50T

Built for demanding lifting tasks

This Green Pin shackle delivers reliable performance with a safety factor of 6:1, ensuring that the minimum breaking load is six times the Working Load Limit of 9.5 tons. Constructed from high-strength Class 6 steel, it provides the robustness required for heavy-duty scenarios. The hot-dip galvanized surface enhances resistance to corrosion, extending its service life in challenging environments. Compliance with EN 13889 and US Fed Spec RR-C-271 Type IVA Class 3, Grade A standards confirms adherence to recognized industry requirements.

• Safety bolt included for enhanced security during use
• Operates reliably within temperature range -40˚C to +200˚C
• Certificates available: 2.1, 2.2, 3.1, MTC, DNV 2.7.1, DNV 2.22, CE

Precision engineering for secure projects

The 47 mm gap and 32 mm pin diameter provide precise fitting compatibility for various applications. The model G-4163 Grade 3 design ensures consistent performance across diverse tasks. With comprehensive certification options and detailed technical documentation available, users gain confidence in product quality and proper usage. The hot-dip galvanized finish not only protects against environmental wear but also maintains structural integrity over extended periods, reducing maintenance requirements and ensuring dependable securing in demanding conditions.
