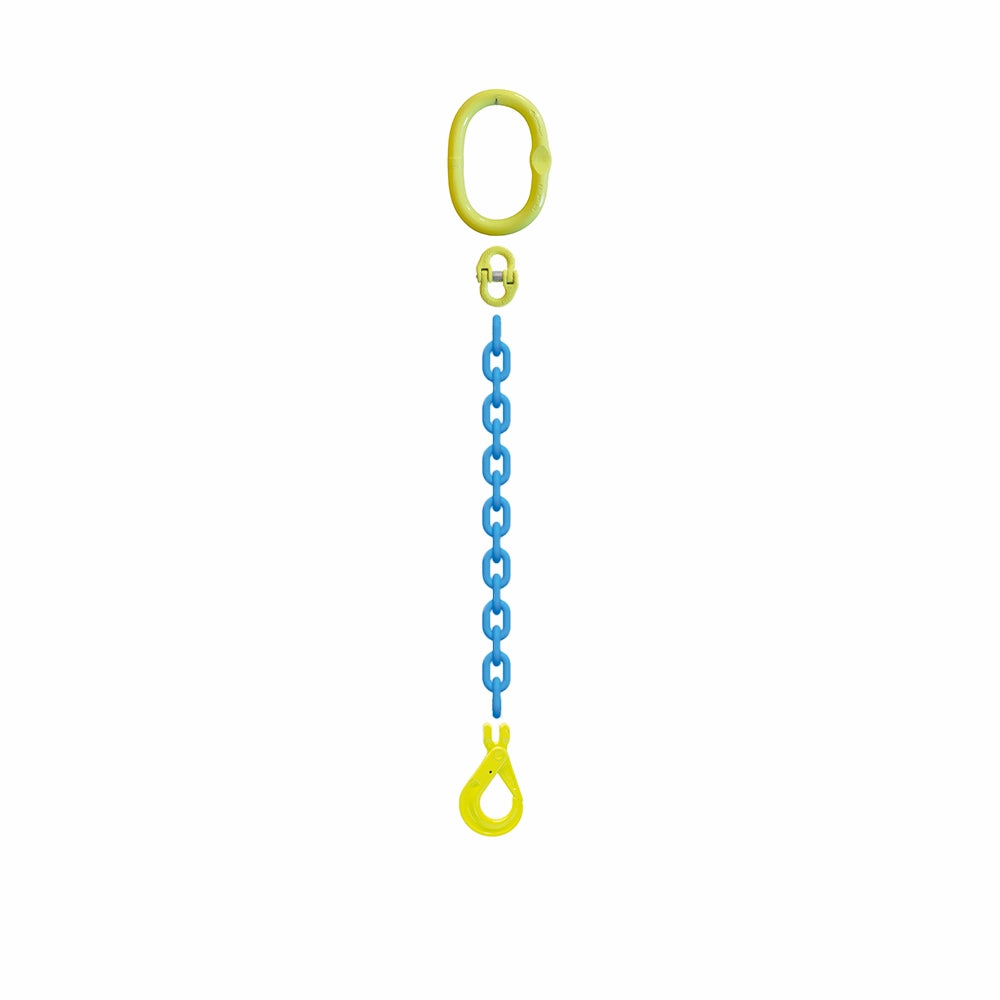

Kædesæt med gul oval ring, blå kæde og gul krog.
Diagram af to kædesæt med længdemål "anhug til anhug" og forklarende tekst i bunden.
Tabel med Gunnebo GrabiQ Grade 10 kædedimensioner og WLL i tons, inkl. bemærkninger.

Gunnebo Chain Sling 1-O-BKG Gr.10 - 10mm

SKU: 10001185
LGD:1
Quantity:
Add to inquiry
Already an user? Log in here

Product description

Grade 10 strength for demanding tasks

This Gunnebo chain sling delivers a Working Load Limit of 4,000 kg, making it suitable for substantial industrial lifting tasks. The single-strand design provides straightforward handling and efficient deployment in various scenarios. Constructed from Grade 10 steel components, this 10 mm chain sling offers 25% higher strength compared to Grade 8 alternatives, ensuring reliable performance in demanding environments.

  • Working Load Limit: 4000 kg for heavy-duty applications
  • Grade 10 steel construction with 4:1 safety factor
  • Single-strand configuration with 10mm chain dimension for simplicity
  • Assembled and inspected in Danish workshops for quality

Built for industrial reliability

The sling features a Gunnebo GrabiQ MF oval ring at the top and a BKG safety hook at the bottom, providing secure attachment points throughout the lifting process. The blue KLA chain, combined with yellow components, enables quick visual identification. With its 4:1 safety factor and Grade 10 certification, this chain sling meets stringent requirements for professional material handling tasks.

Technical documentation and load tables are available for reference.

Specifications

WLL in kg 4000
Dimension 10 mm
Grade 10
Model 1-O-BKG
Legs 1
Standardnorm EN 818-4 (WLL+25%)
Alternative SKU 1912010010
