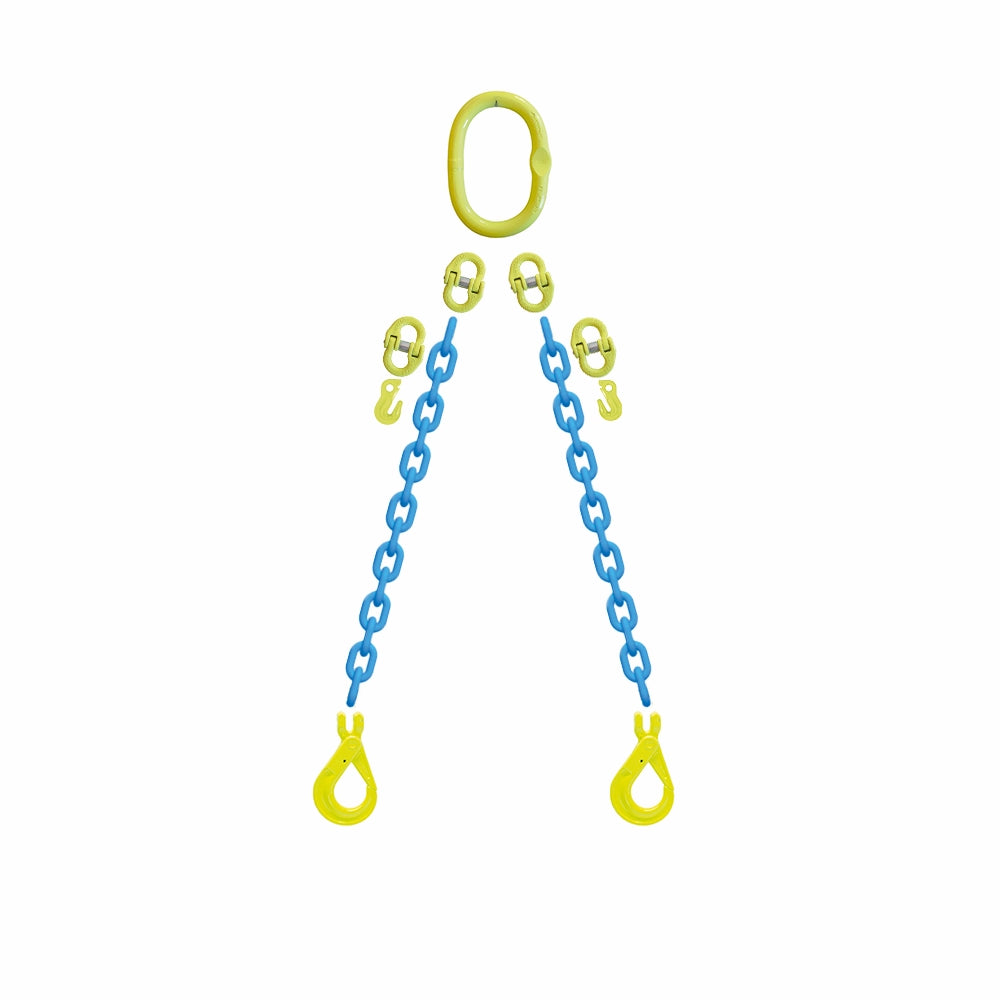

To-ben kædesæt med blå kæder og gule kroge og oval forbindelsesled.
Diagram af to kædesæt med længdemål "anhug til anhug" og forklarende tekst i bunden.
Tabel med Gunnebo GrabiQ Grade 10 kædedimensioner og WLL i tons, inkl. bemærkninger.

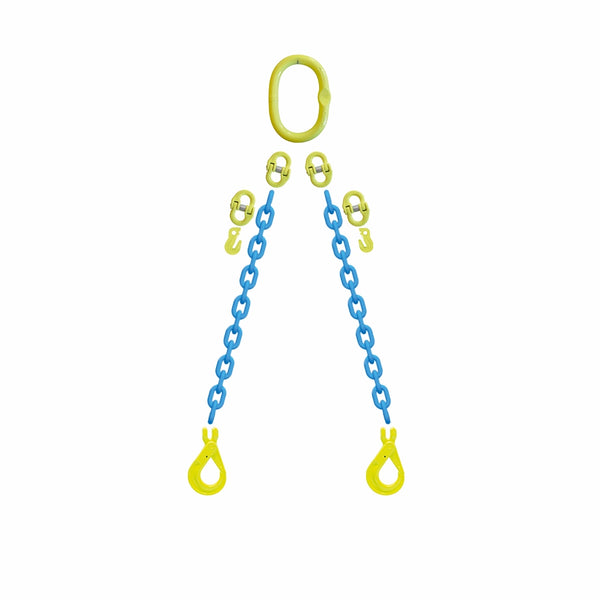

Gunnebo Chain Sling 2-O-BKG-OG Gr.10 - 20mm

SKU: 10001298
LGD:1
Quantity:
Add to inquiry
Already an user? Log in here
In remote storage
Download user manual
Download technical data

Product description

2-leg chain sling, grade 10

This 2-leg chain sling from Gunnebo is manufactured with 20mm grade 10 blue steel chain and has a WLL of 22.400 kg at 0–45°. The sling is assembled with Gunnebo components and is designed for lifting operations where strength and operational reliability are essential.

  • WLL 22.400 kg at 0–45° (grade 10, 20mm chain, 2-leg)
  • Manufactured with 20mm grade 10 blue steel chain
  • Equipped with safety hook and swivel hook
  • Safety factor 4:1 in accordance with EN 818-4

Technical properties

The 2-leg chain sling distributes the load across two attachment points, providing a stable lifting position and reducing the risk of rotation. The 20mm grade 10 chain and carefully selected components ensure a long service life under frequent use.

View our full range of 2-leg chain slings

Specifications

WLL in kg 22400/16000
Dimension 20 mm
Grade 10
Model 2-O-BKG-OG
Legs 2
Standardnorm EN 818-4 (WLL+25%)
Alternative SKU 1921210020
