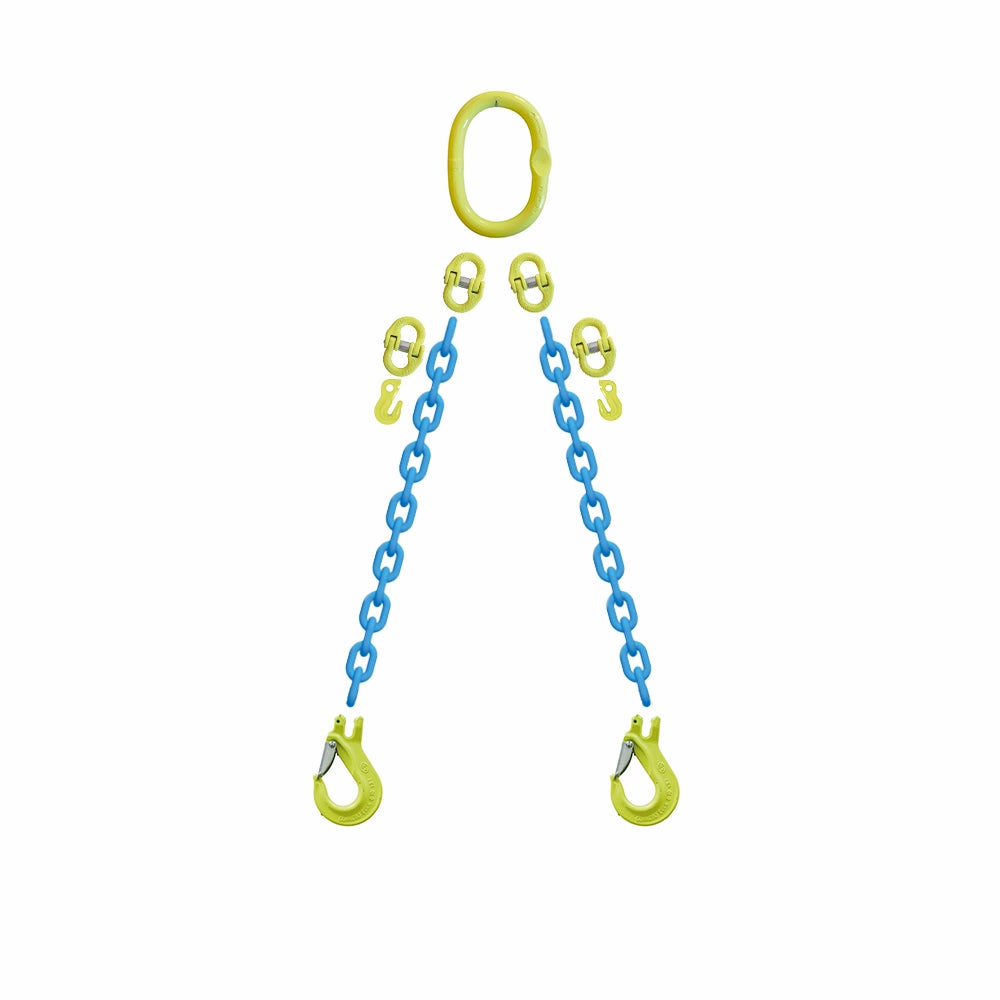

Gunnebo kædesæt med to blå kæder, gul oval ring og gule kroge i enderne.
Diagram af to kædesæt med længdemål "anhug til anhug" og forklarende tekst i bunden.
Tabel med Gunnebo GrabiQ Grade 10 kædedimensioner og WLL i tons, inkl. bemærkninger.

Gunnebo Chain Sling 2-O-EGKN-OG Gr.10 - 8mm

SKU: 10001314
LGD:1
Quantity:
Add to inquiry
Already an user? Log in here

Product description

Engineered strength for demanding tasks

This Gunnebo 2-strand chain sling delivers a reliable lifting capacity of up to 3,500 kg at a 45-degree angle and 2,500 kg at 60 degrees. Constructed from Grade 10 steel with an 8 mm diameter, it combines robust material strength with a 4:1 safety factor for secure industrial applications. The blue KLA chain provides enhanced visibility during use.

  • Working Load Limit: 3500/2500 kg depending on angle
  • Grade 10 steel construction with 8mm diameter
  • 4:1 safety factor ensures operational reliability
  • Assembled and inspected in Danish workshops

Built for professional performance

The model 2-O-EGKN-OG features EGKN load hooks at the bottom and OG-type hooks with a shortening function for versatile lifting scenarios. A Gunnebo GrabiQ MF oval ring ensures superior connection strength. Each unit undergoes thorough inspection during Danish assembly, guaranteeing consistent quality standards for demanding industrial environments where precision matters.


Explore our Chain Slings collection.

Specifications

WLL in kg 3500/2500
Dimension 8 mm
Grade 10
Model 2-O-EGKN-OG
Legs 2
Standardnorm EN 818-4 (WLL+25%)
Alternative SKU 1921810008
