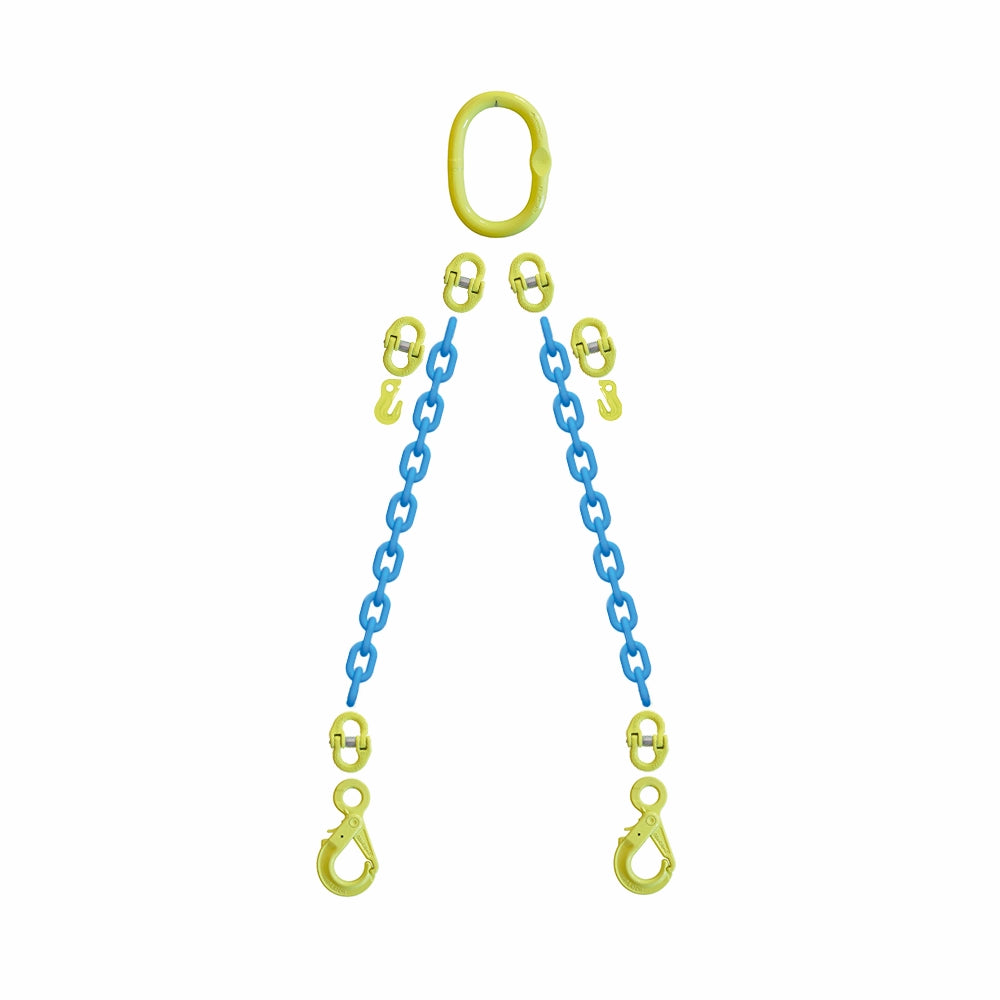

To-benet Gunnebo kædesæt med blå kæder og gule kroge og ring.
Tabel med Gunnebo GrabiQ Grade 10 kædedimensioner og WLL i tons, inkl. bemærkninger.
Diagram af to kædesæt med længdemål "anhug til anhug" og forklarende tekst i bunden.

Gunnebo Chain Sling 2-O-OBK-OG Gr.10 - 16mm

SKU: 10008005
LGD:1
Quantity:
Add to inquiry
Already an user? Log in here
In remote storage

Product description

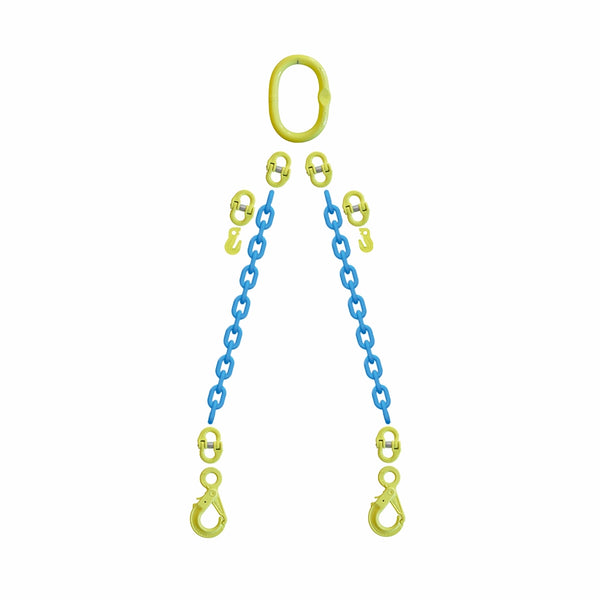

2-leg chain sling, grade 10

This 2-leg chain sling from Gunnebo is manufactured with 16mm grade 10 blue steel chain and has a WLL of 14.000 kg at 0–45°. The sling is assembled with Gunnebo components and is designed for lifting operations where strength and operational reliability are essential.

  • WLL 14.000 kg at 0–45° (grade 10, 16mm chain, 2-leg)
  • Manufactured with 16mm grade 10 blue steel chain
  • Safety factor 4:1 in accordance with EN 818-4

Specifications and application

The 2-leg chain sling distributes the load across two attachment points, providing a stable lifting position and reducing the risk of rotation. The 16mm grade 10 chain and carefully selected components ensure a long service life under frequent use.

View our full range of 2-leg chain slings

Specifications

WLL in kg 14000/10000
Dimension 16mm
Grade 10
Model 2-O-OBK-OG
Legs 2
Standardnorm EN 818-4 (WLL+25%)
Alternative SKU 1921010016
