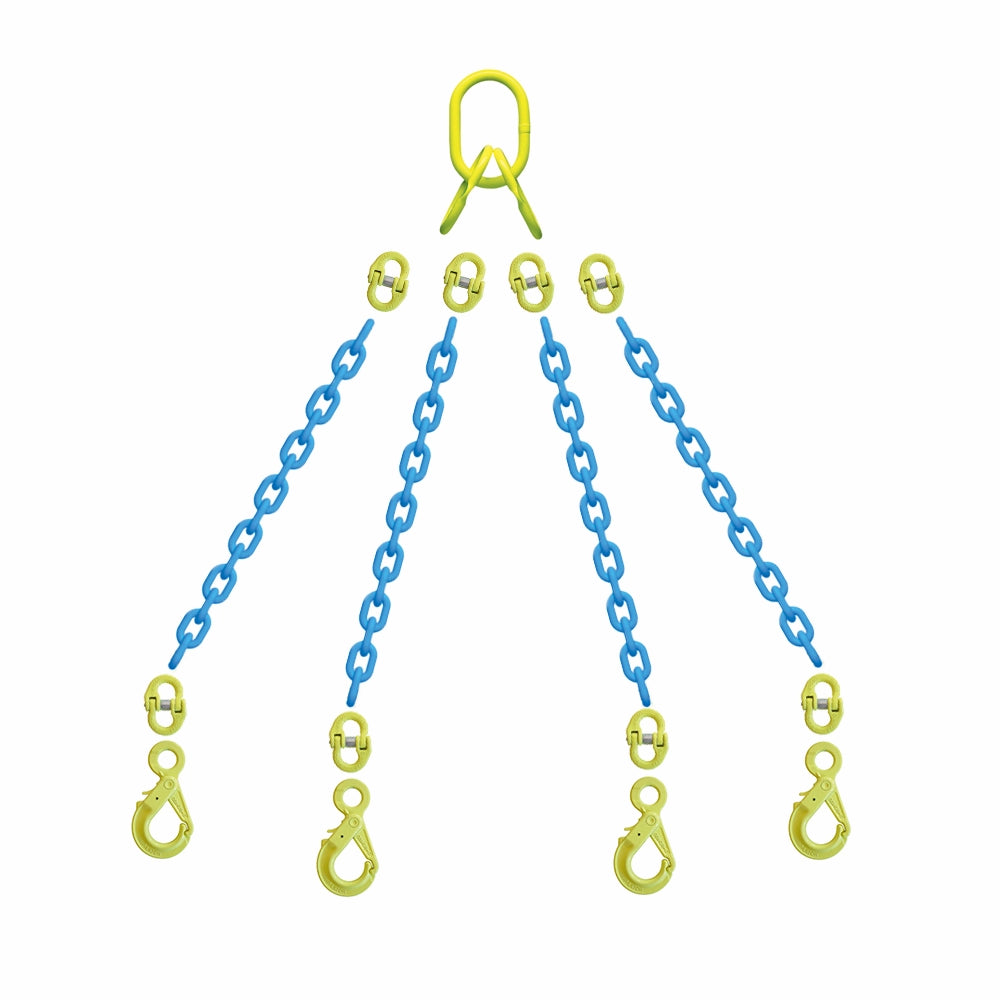

Kædesæt med 4 blå kæder og gule kroge, forbundet til gul topconnector.
Diagram af to kædesæt med længdemål "anhug til anhug" og forklarende tekst i bunden.
Tabel med Gunnebo GrabiQ Grade 10 kædedimensioner og WLL i tons, inkl. bemærkninger.

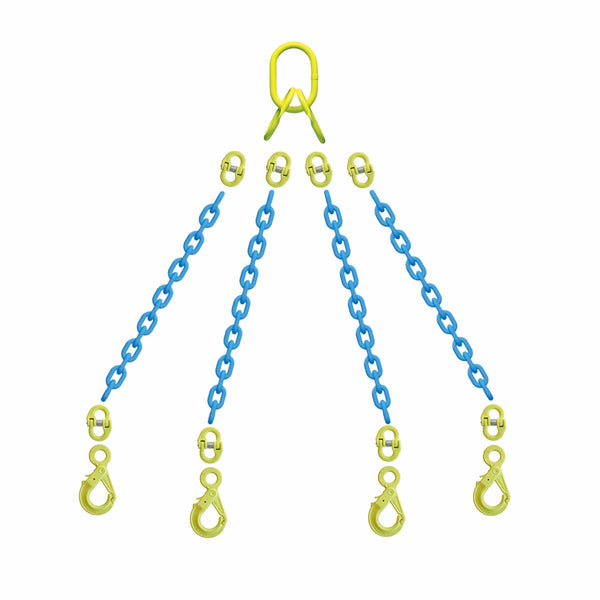

Gunnebo Chain Sling 4-O-OBK Gr.10 - 6mm

SKU: 10001370
LGD:1
Quantity:
Add to inquiry
Already an user? Log in here

Product description

Strength and precision for demanding tasks

This Gunnebo 4-O-OBK chain sling combines Grade 10 steel construction with a 4-string configuration for reliable performance in industrial scenarios. The 6mm chains deliver a Working Load Limit of 3150 kg at a 45-degree angle and 2240 kg at a 60-degree angle. Each set features a Gunnebo GrabiQ MT oval ring at the top and OBK safety hooks at each leg, ensuring secure load handling throughout the operation.

  • Grade 10 steel ensures maximum strength and durability
  • WLL: 3150 kg at 45° and 2240 kg at 60°
  • 4:1 safety factor provides reliable protection during use
  • Blue chain design with yellow GrabiQ MT oval ring
  • OBK safety hooks included for enhanced load security
  • Assembled and inspected in Danish workshops for quality

Built for professional lifting environments

The 4-leg configuration distributes loads evenly, reducing stress on individual chains during complex lifting tasks. The 4:1 safety factor provides additional assurance in demanding industrial environments where precision matters. Each component undergoes thorough inspection in Danish workshops, meeting strict quality standards. The blue chain design with yellow fittings offers clear visibility during operations, while the robust steel construction maintains performance across extended use in heavy-duty applications.


Also explore our Chain Slings collection.

Specifications

WLL in kg 3150/2240
Dimension 6 mm
Grade 10
Model 4-O-OBK
Legs 4
Standardnorm EN 818-4 (WLL+25%)
Alternative SKU 1940210006
