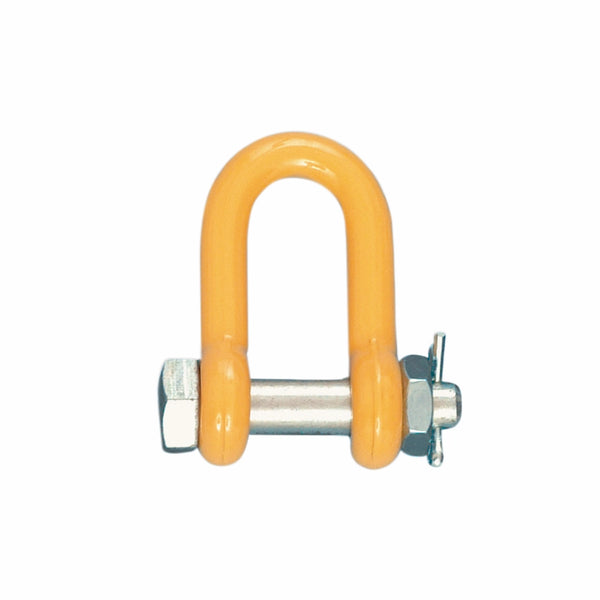

Gunnebo Shackle SA Gr. 8 - 16mm
Product description
Shackle with a documented load rating
The shackle has a WLL of 8,000 kg and is approved for lifting. It is marked to EN1677-1. The safety factor is 4:1.
- WLL 8,000 kg
- Model SA
- Pin diameter 22 mm
- Jaw width 30 mm
- Material: Steel
How the shackle carries the load
The WLL is the highest load the shackle may carry. The load must be carried along the axis of the pin centreline. Under a side load of 45° the load limit drops to 70 % of the original, and at 90° to 50 %. Sharp edges should be avoided. Inspect the body and the pin for nicks, cracks, corrosion and wear before use. A bent pin is not replaced on its own, the whole shackle is discarded. The shackle must not be heat treated or welded, as this can affect the WLL. Lifting equipment must be inspected at least every 12 months.
See the full range of shackles.
Specifications
| WLL in kg | 8000 |
| Grade | 8 |
| Jaw size in mm | 30 |
| Model | SA |
| Approved for lifting | Ja / Yes |
| Surface treatment | N/A |
| Pin size in mm | 22 |
| Standardnorm | EN1677-1 |
| Alternative SKU | 1500508000 |
