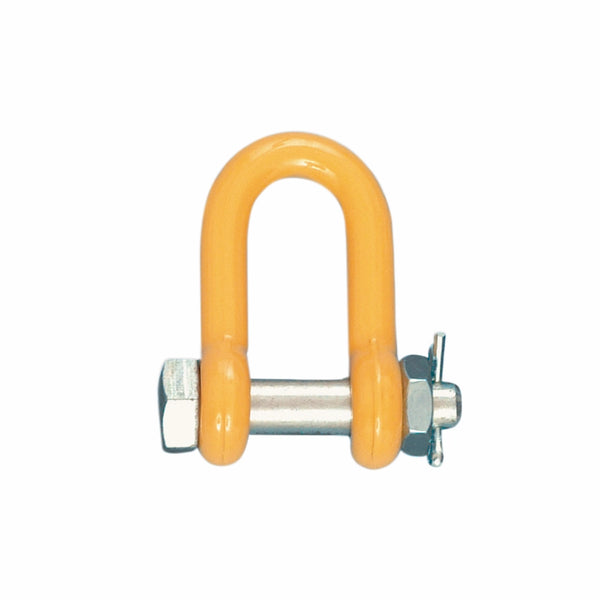

Gunnebo Shackle SA Gr. 8 - 26mm
Product description
The SA shackle has a straight form and is closed with a bolt, nut and retaining pin. The construction retains the pin and must be used with a load that follows the shackle’s longitudinal direction.
Check the assembly before use and avoid exposing the shackle to side loading. Follow the product marking and documentation when selecting connected components.
Specifications
| WLL in kg | 21600 |
| Grade | 8 |
| Jaw size in mm | 48 |
| Model | SA |
| Approved for lifting | Ja / Yes |
| Surface treatment | N/A |
| Pin size in mm | 38 |
| Standardnorm | EN1677-1 |
| Alternative SKU | 1500521600 |
