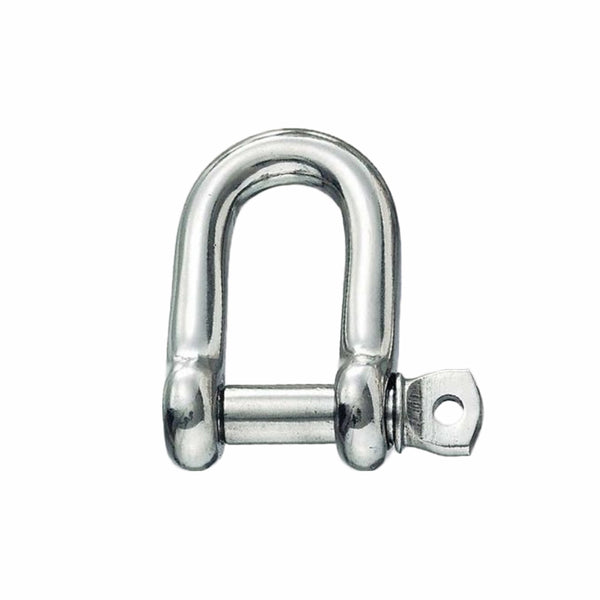

H-Shackle stainless w/eyebolt w/tread - M10
Product description
Shackle not approved for lifting
The shackle has an MBL of 4,300 kg. It is not approved for lifting and must not be used as lifting equipment.
- MBL 4,300 kg
- Pin diameter 10 mm
- Material: Stainless Steel AISI 316
How to read the figures
The MBL is the minimum breaking load, the load at which the shackle fails according to the source. It is not a WLL, and the figure must not be used to calculate a lift. If the shackle is to be part of a lift, choose a shackle with a documented WLL and an approval for lifting.
See the full range of shackles.
Specifications
| WLL in kg | N/A |
| MBL in kg | 4300 |
| Grade | 2 |
| Jaw size in mm | N/A |
| Approved for lifting | Nej / No |
| Surface treatment | N/A |
| Pin size in mm | 10 |
| Standardnorm | N/A |
| Alternative SKU | 2802251010 |
