JDT Theipa Swivel Eye Bolt grade 10 - M16x20mm - 1,4T

Engineered strength for critical scenarios

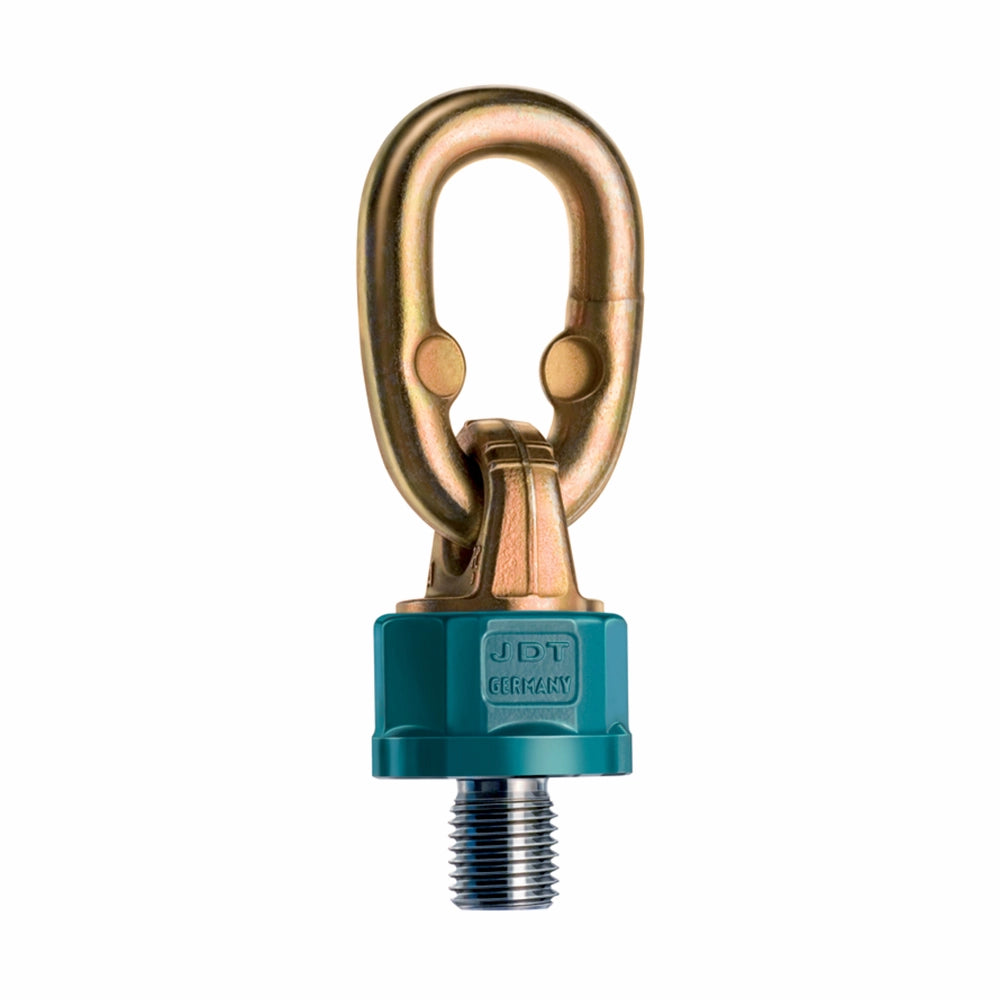

This swivel eye bolt from JDT GERMANY delivers a working load limit of 1,400 kg, backed by a 4:1 safety factor that provides a substantial security margin in demanding lifting tasks. Manufactured from Class 10 steel, it combines exceptional strength with reliable performance. The M16x20mm threading ensures compatibility with standard systems, while the painted surface treatment offers added protection against environmental exposure.

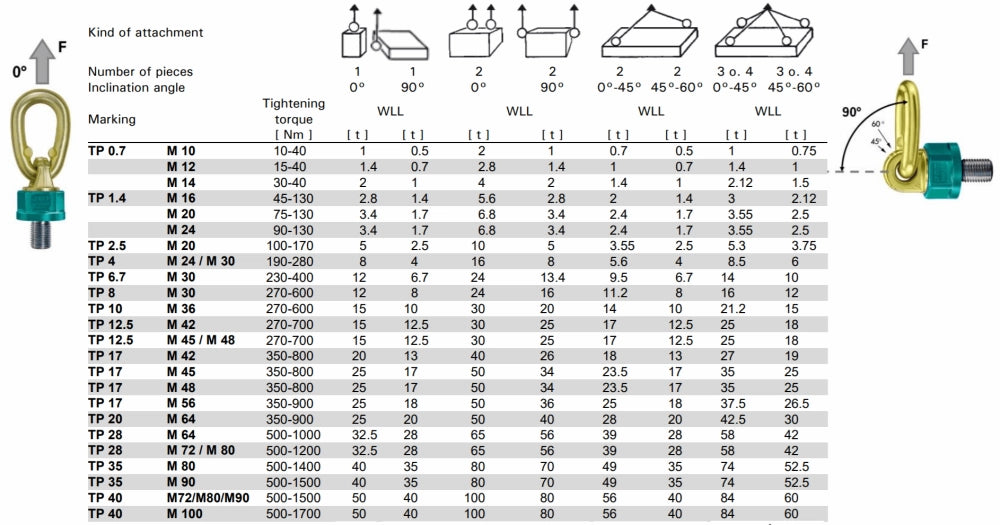

• Working load limit: 1400 kg for substantial capacity
• Safety factor of 4:1 ensures operational security margin
• Class 10 steel construction for maximum strength
• M16x20mm dimensions provide standard system compatibility
• Painted steel surface delivers enhanced durability protection
• Specified for straight lift and 90° angle applications

Reliable performance in demanding projects

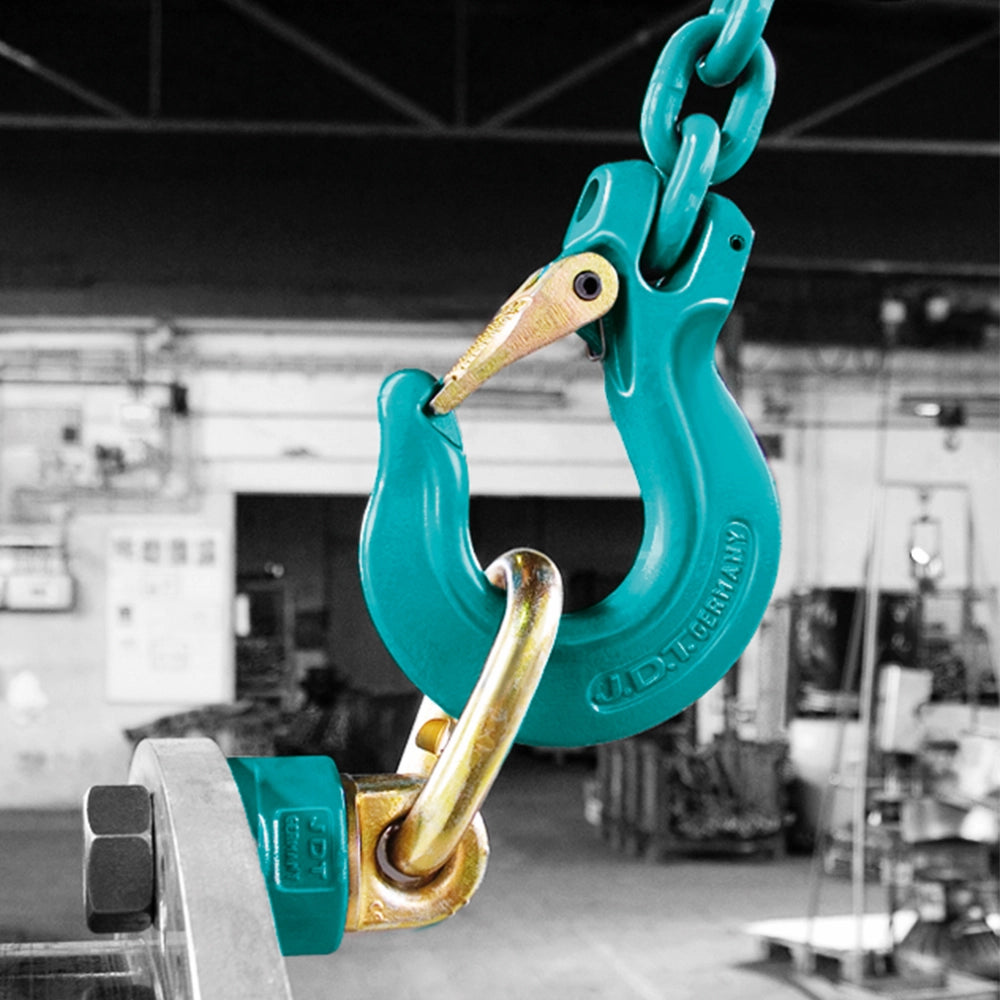

The swivel functionality allows for load rotation, reducing stress on attachment points during complex lifting tasks. Available in various thread lengths to match specific installation requirements, this eye bolt adapts to different operational scenarios. The robust steel construction withstands harsh industrial conditions, while the 4:1 safety factor provides confidence when managing heavy loads. The painted finish extends service life by protecting against corrosion.
