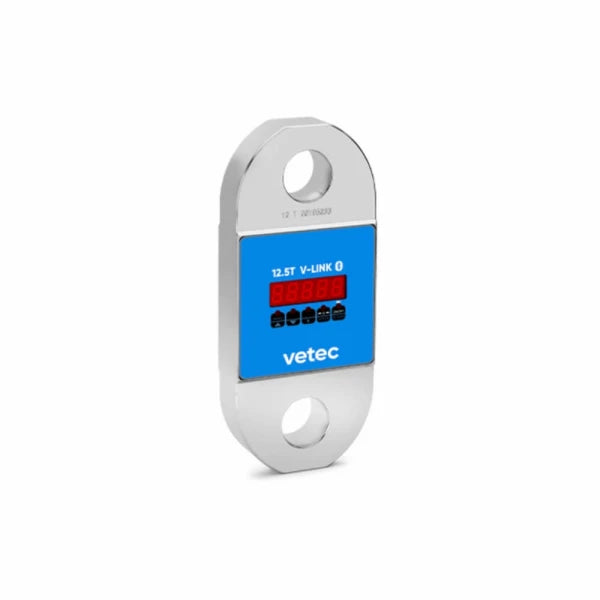

Vetec V-link Load Cell

Name: Vetec V-link Load Cell
Availability: OutOfStock

V-Link load cell from Danish company Vetec. The load cell is IP67 classified which makes it dust and waterproof (must be able to hold water out of the load cell after 30 minutes at 1 meter depth). The load cell has an accuracy of ± 0.2% FS. V-link is produced in robust high-strength steel for use in harsh environments, in addition it is equipped with a built-in display that can be seen at a long distance and in daylight. The product comes with a calibration certificate and a suitcase in hard ABS plastic. Designed and manufactured in Denmark.

Secure overload: 110%.

Material: High-strength steel with Fe/Zn12/A surface treatment acc. to. ISO 2081.
IP classification: IP67.
Display: LED.

Height of numbers in the display: 14 mm.

Color of numbers in the display: Red

Operating time: 16-20 hours (low temperatures will reduce operating time).

Battery: Built-in Li-on battery (charged via USB cable)

Product specifications

Product type	Load Cell
Supplier name
EN-Norm
Standard (Norm)
Safety factor
Atex Zone
Temperatur range (°C)
Unit

Technical Data

Add to order

Name

WLL (t)

Weight (kg)

Stock status

Price

Dynamometer Bluetooth V-Link 3.25T w/display
# 5802603005

WLL (t) 3.25

Weight (kg) 1

Login needed

Dynamometer Bluetooth V-Link 6.5T w/display
# 5802603010

WLL (t) 6.5

Weight (kg) 4

Login needed

Dynamometer Bluetooth V-Link 12.5T w/display
# 5802603015

WLL (t) 12.5

Weight (kg) 5

Login needed

Dynamometer Bluetooth V-Link 25T w/display
# 5802603020

WLL (t) 25

Weight (kg) 7

Login needed

Dynamometer Bluetooth V-Link 55T w/display
# 5802603025

WLL (t) 55

Weight (kg) 16

Login needed

Dynamometer Bluetooth V-Link 100T w/display
# 5802603030

WLL (t) 100

Weight (kg) 39

Login needed

Dynamometer Bluetooth V-Link 120T w/display
# 5802603035

WLL (t) 120

Weight (kg) 39

Login needed
