Pipe Clamp type K with bolt - Hot-dip galvanized

Name: Pipe Clamp type K with bolt - Hot-dip galvanized
Availability: OutOfStock

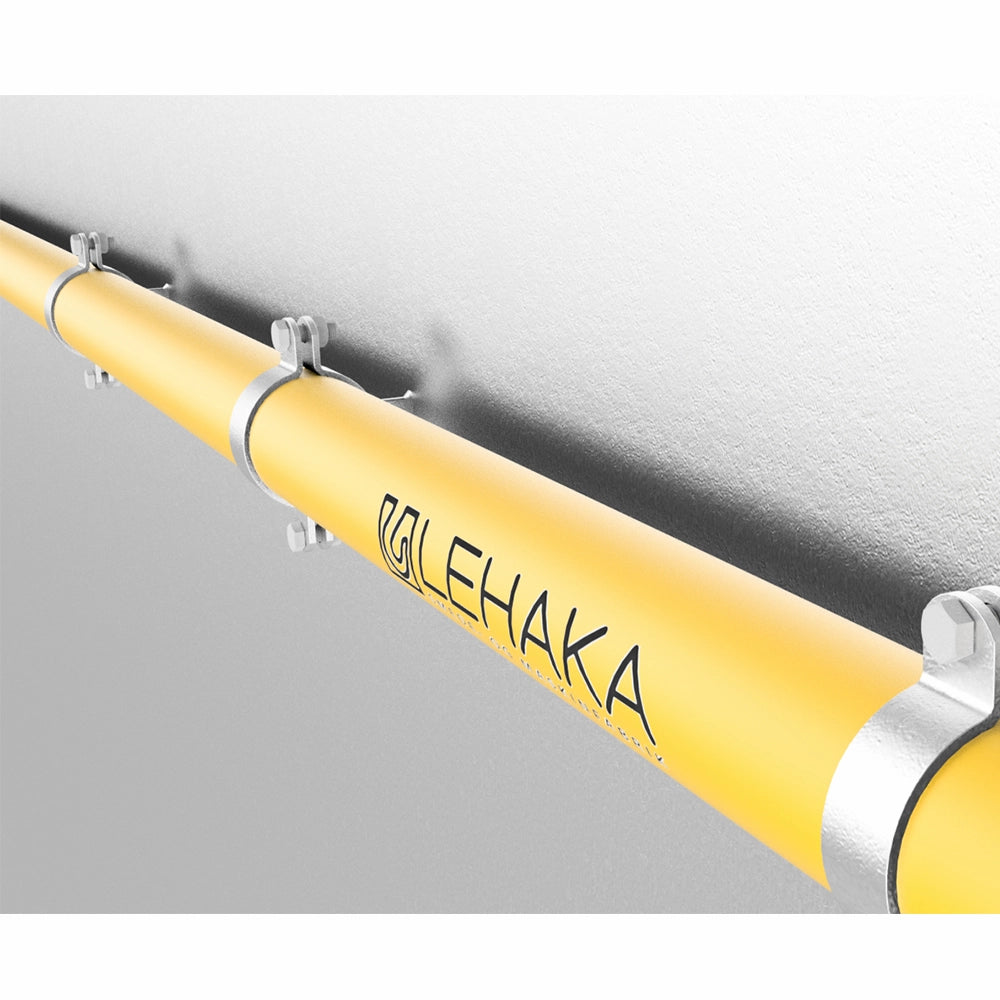

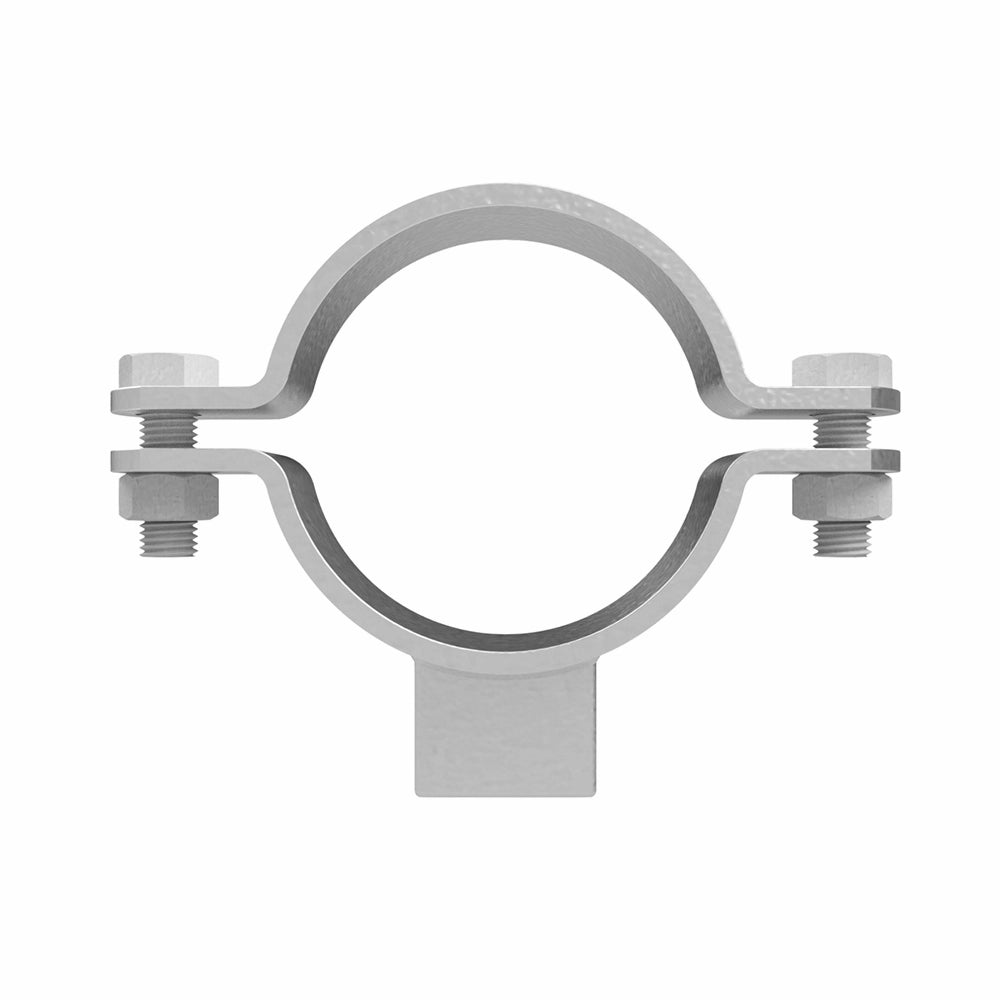

Pipe Clamp type K model DVS 310002. Two-part Pipe Clamp med påsvejst stilk. Used for pipe support.

Surface: Hot-dip galvanized.

Material certificate type 3.1. can be purchased - in which case this must be stated in the comment field when submitting the order.

Product specifications

Product type	Pipe Clamp
Supplier name	Lehaka
Model	Pipe Clamp
Standard (Norm)	DVS 31002
Material	Steel (S235/275)
Surface treatment	Hot-dip galvanized (FZV)
Application	Bearing clamp for fixing pipes
Remark	Delivered including bolts and nuts
Certifikat	3.1. Certificate can be delivered (optional purchase)
Unit	Pcs.
Customs Code	73089098

Technical Data

Add to order

Name

Thread/bolt

Pipe size (mm)

Pipe diameter (")

Dimension (mm)

Stock status

Price

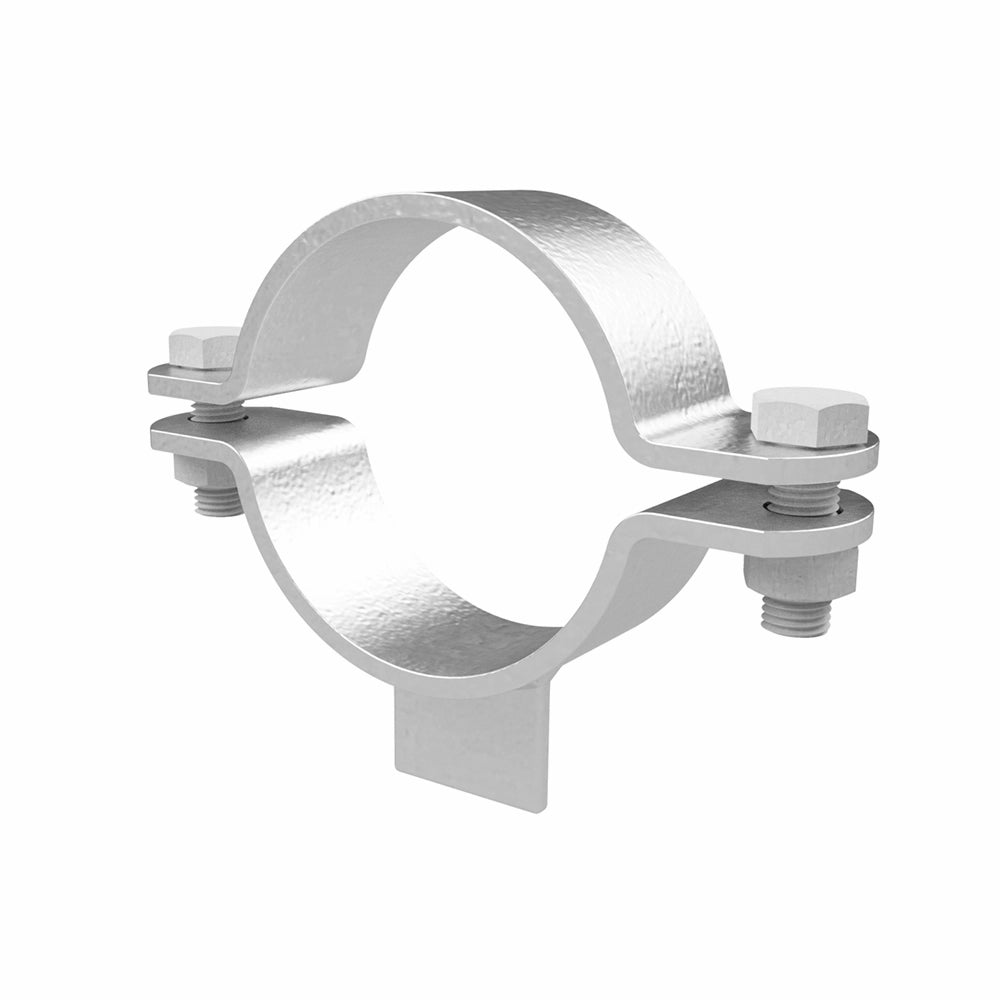

Pipe Clamp K-DVS 31002 Galvanized - 21mm
# 7910313021

Thread/bolt M12x25

Pipe size (mm) 20/21,3/22

Pipe diameter (")

Dimension (mm) 25x4

Login needed

Pipe Clamp K-DVS 31002 Galvanized - 26mm
# 7910313026

Thread/bolt M10x25

Pipe size (mm) 25/36,9

Pipe diameter (") 3/4

Dimension (mm) 25x4

Login needed

Pipe Clamp K-DVS 31002 Galvanized - 34mm
# 7910313034

Thread/bolt M10x25

Pipe size (mm) 33,7/35

Pipe diameter (") 1

Dimension (mm) 25x4

Login needed

Pipe Clamp K-DVS 31002 Galvanized - 43mm
# 7910313043

Thread/bolt M10x30

Pipe size (mm) 42/42,4

Pipe diameter (") 1 ¼”

Dimension (mm) 30x5

Login needed

Pipe Clamp K-DVS 31002 Galvanized - 49mm
# 7910313049

Thread/bolt M10x30

Pipe size (mm) 48,3

Pipe diameter (") 1 ½”

Dimension (mm) 30x5

Login needed

Pipe Clamp K-DVS 31002 Galvanized - 59mm
# 7910313059

Thread/bolt M12x35

Pipe size (mm) 57/60,3

Pipe diameter (") 2”

Dimension (mm) 40x5

Login needed

Pipe Clamp K-DVS 31002 Galvanized - 77mm
# 7910313077

Thread/bolt M12x35

Pipe size (mm) 76,1

Pipe diameter (") 2 ½”

Dimension (mm) 40x5

Login needed

Pipe Clamp K-DVS 31002 Galvanized - 89mm
# 7910313089

Thread/bolt M12x35

Pipe size (mm) 88,9

Pipe diameter (") 3”

Dimension (mm) 40x5

Login needed

Pipe Clamp K-DVS 31002 Galvanized - 108mm
# 7910313108

Thread/bolt M16x45

Pipe size (mm) 108

Pipe diameter (")

Dimension (mm) 50x6

Login needed

Pipe Clamp K-DVS 31002 Galvanized - 115mm
# 7910313115

Thread/bolt M16x45

Pipe size (mm) 115

Pipe diameter (") 4”

Dimension (mm) 50x6

Login needed

Pipe Clamp K-DVS 31002 Galvanized - 133mm
# 7910313133

Thread/bolt M16x45

Pipe size (mm) 133

Pipe diameter (")

Dimension (mm) 50x6

Login needed

Pipe Clamp K-DVS 31002 Galvanized - 140mm
# 7910313140

Thread/bolt M16x45

Pipe size (mm) 139,7

Pipe diameter (") 5”

Dimension (mm) 50x6

Login needed

Pipe Clamp K-DVS 31002 Galvanized - 169mm
# 7910313169

Thread/bolt M16x45

Pipe size (mm) 168,3

Pipe diameter (") 6”

Dimension (mm) 50x6

Login needed

Pipe Clamp K-DVS 31002 Galvanized - 220mm
# 7910313220

Thread/bolt M20x60

Pipe size (mm) 219,1

Pipe diameter (") 8”

Dimension (mm) 60x8

Login needed

Pipe Clamp K-DVS 31002 Galvanized - 273mm
# 7910313273

Thread/bolt M20x60

Pipe size (mm) 267/273

Pipe diameter (") 10

Dimension (mm) 60x8

Login needed

Pipe Clamp K-DVS 31002 Galvanized - 324mm
# 7910313324

Thread/bolt M20x60

Pipe size (mm) 323.9

Pipe diameter (") 12

Dimension (mm) 60x8

Login needed

Pipe Clamp K-DVS 31002 Galvanized - 400mm
# 7910313400

Thread/bolt M24x65

Pipe size (mm) 407

Pipe diameter (") 16

Dimension (mm) 70x10

Login needed
