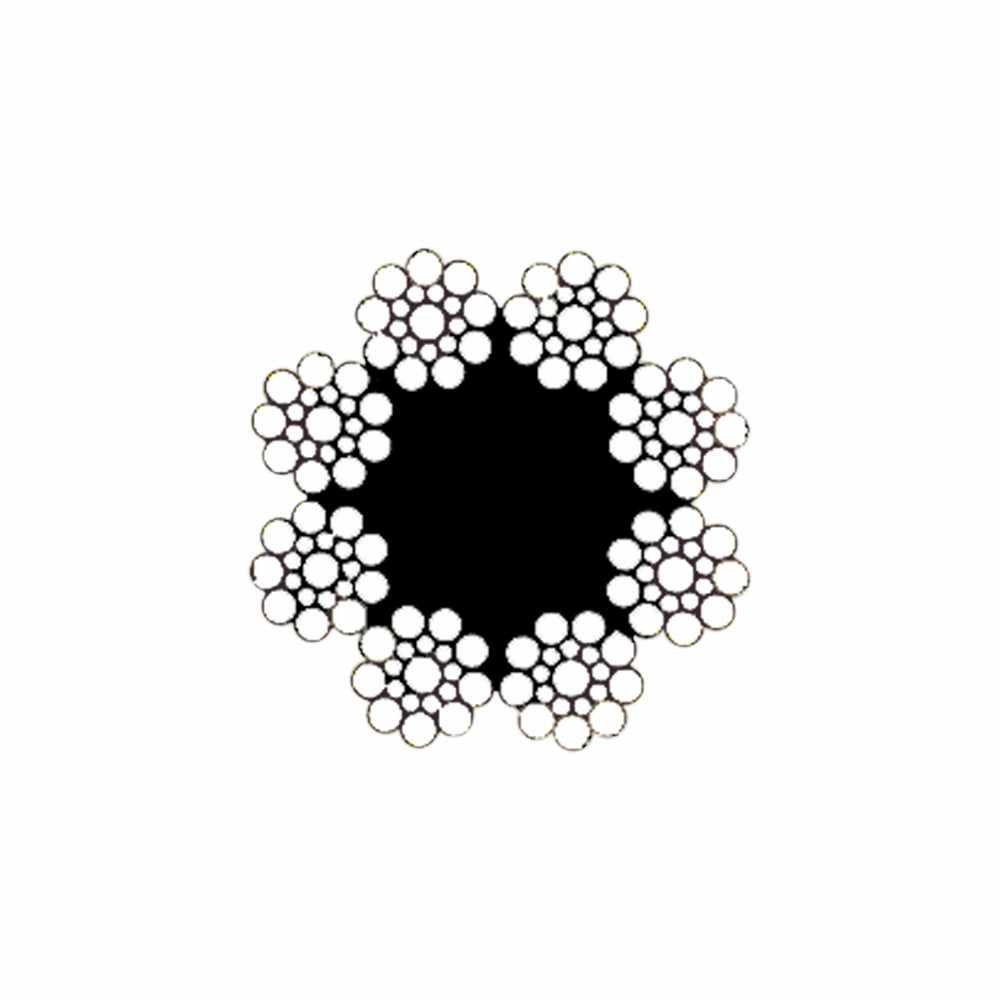

Elevator Steel Wire Rope 8x19 Seale+FC

Right regular lay, ungalvanized. Preformed with sisal core. Dual tensile rope.
Inner wires are 180 kp/mm2 (1770 N/mm2) galv.
Outer wires are 140 kp/mm2 (1370 N/mm2) ungalv.
This steel wire rope is specially manufactured for
elevators to meet the demand of decreasing the
difference between the Brinell hardness of the traction
sheaves and the rope.

Product specifications

Product type Steel Wire Rope. Right Hand Ordinary Lay
Material Steel
Surface treatment Galvanized
Construction 8x19Seale+FC
Tensile Strength 1370/1770 N/mm2
Inspection acc. to: Depending on the indv. Country. This product must be checked every 12 months by a qualified person.
Unit m
Customs Code 73121081

Add to order

Name
Wire Diameter (mm)
Cable Lay
MBL (kg)
Unit
Stock status
Price

Wire 8x19Seale+FC 1370/1770N/mm2 RHOL 8mm
# 2201001008
Wire Diameter (mm) 8
Cable Lay RHOL
MBL (kg) 2860
Unit m
local_shipping In stock

local_shipping Odense: 12

local_shipping Esbjerg: 0

local_shipping Aalborg: 0

local_shipping København: 0

Login needed

Login needed

Wire 8x19Seale+FC 1370/1770N/mm2 RHOL 10mm
# 2201001010
Wire Diameter (mm) 10
Cable Lay RHOL
MBL (kg) 4480
Unit m
local_shipping In stock

local_shipping Odense: 21

local_shipping Esbjerg: 0

local_shipping Aalborg: 0

local_shipping København: 0

Login needed

Login needed

Wire 8x19Seale+FC 1370/1770N/mm2 RHOL 11mm
# 2201001011
Wire Diameter (mm) 11
Cable Lay RHOL
MBL (kg) 5420
Unit m
local_shipping In stock

local_shipping Odense: 1106

local_shipping Esbjerg: 0

local_shipping Aalborg: 0

local_shipping København: 0

Login needed

Login needed

Wire 8x19Seale+FC 1370/1770N/mm2 RHOL 12mm
# 2201001012
Wire Diameter (mm) 12
Cable Lay RHOL
MBL (kg) 6450
Unit m
local_shipping In stock

local_shipping Odense: 88

local_shipping Esbjerg: 0

local_shipping Aalborg: 0

local_shipping København: 0

Login needed

Login needed

Wire 8x19Seale+FC 1370/1770N/mm2 RHOL 13mm
# 2201001013
Wire Diameter (mm) 13
Cable Lay RHOL
MBL (kg) 7570
Unit m
local_shipping In stock

local_shipping Odense: 418

local_shipping Esbjerg: 0

local_shipping Aalborg: 0

local_shipping København: 0

Login needed

Login needed

Wire 8x19Seale+FC 1370/1770N/mm2 RHOL 16mm
# 2201001016
Wire Diameter (mm) 16
Cable Lay RHOL
MBL (kg) 11520
Unit m
local_shipping Remote stock location

Login needed

Login needed
