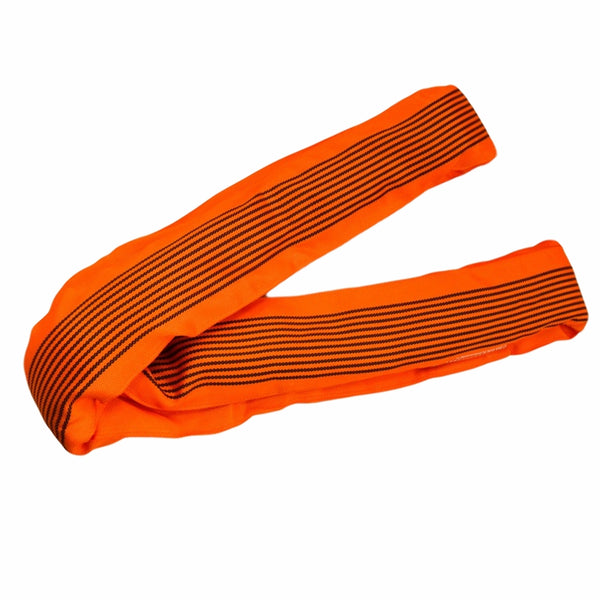

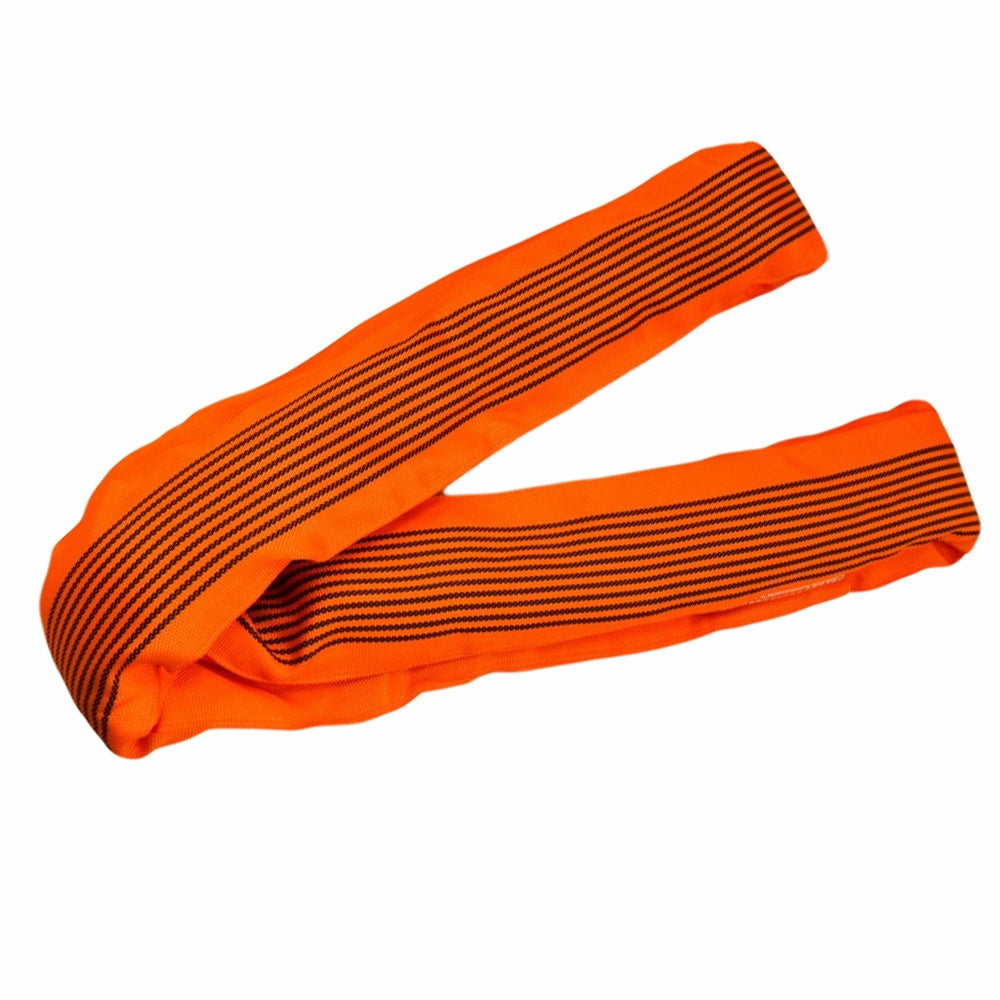

UTX / WDL Round Sling Seamless WLL 12T orange - 10/5m

Seamless round sling with a clear colour code

The WDL round sling is a seamless round sling with a WLL of 12,000 kg in a straight lift. The orange colour follows the colour code for round slings with WLL 12 t, so the capacity can be read directly on the sling. This variant has a circumference of 10 m and a length of 5 m and is marked to EN 1492.

• WLL 12,000 kg in a straight lift
• Circumference 10 m, length 5 m
• Material: polyester
• Marked to EN 1492
• Operating temperature from -40 °C to +100 °C

Capacity depends on the hitch

The WLL applies to a straight lift. In a choked lift the WLL is 9,600 kg, and in a basket hitch with vertical legs it is 24,000 kg. The full WLL table, including angled basket hitches, is in the round sling user manual. The sling has a safety factor of 7:1. It can be used for various lifting tasks within the stated temperature range. Inspect it for damage before and after each lift, and remove it from use if damage is visible.

See the full range of round slings.
