Wire 6x36+IWRC Comp 1960N/mm2 galv RHOL 16
Product description
Steel wire rope with a documented construction

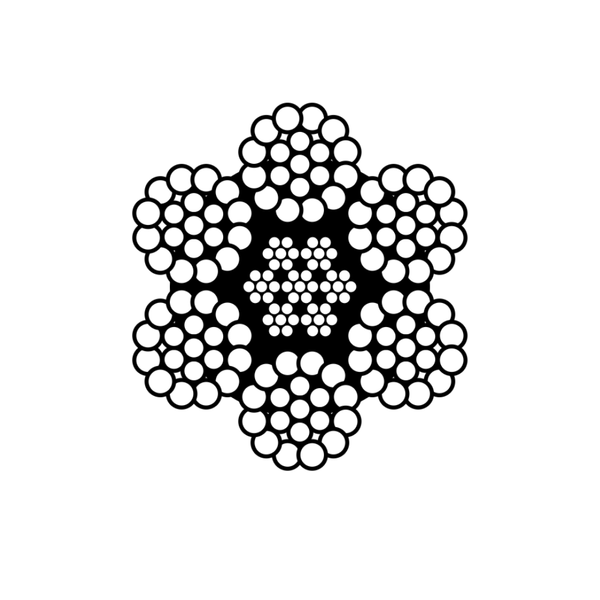

The wire rope has construction 6x36+IWRC and a diameter of 16 mm. The tensile grade is 1960 N/mm². It is marked to EN 12385.
- Construction 6x36+IWRC
- Diameter 16 mm
- Lay RHOL
- Minimum breaking load 21,800 kg
- Material: Steel
Construction and surface
The construction 6x36+IWRC states how the strands and wires are laid together. The core type is IWRC. The surface is galvanised. The stated minimum breaking load is the breaking load of the rope and not a WLL.
See the full range of steel wire ropes.
Specifications
| MBL in kg | 21800 |
| Dimension | 16 mm |
| Construction | N/A |
| Tensile Strenght Wire | 1960 |
| Lay | RHOL |
| Surface treatment | N/A |
| Standardnorm | EN 12385 |
| Alternative SKU | 2306504160 |
