Wire 6x7+WSC 1960N/mm2 galv RHOL - 2.6mm
Product description
Steel wire rope with a documented construction
The wire rope has construction 6x7+WSC and a diameter of 2.6 mm. The tensile grade is 1960 N/mm². It is marked to EN 12385.
- Construction 6x7+WSC
- Diameter 2.6 mm
- Lay RHOL
- Minimum breaking load 476 kg
- Material: Steel
Construction and surface

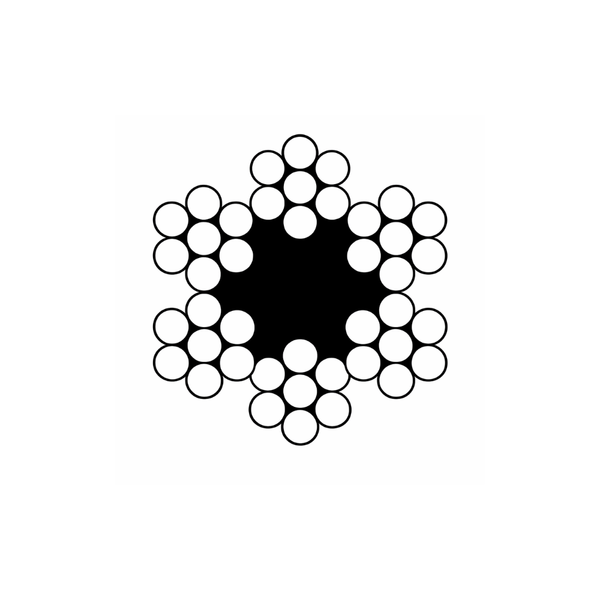

The construction 6x7+WSC states how the strands and wires are laid together. The core type is WSC. The surface is galvanised. The stated minimum breaking load is the breaking load of the rope and not a WLL.
See the full range of steel wire ropes.
Specifications
| MBL in kg | 476 |
| Dimension | 2,6mm |
| Construction | 6x7+WSC |
| Tensile Strenght Wire | 1960 |
| Lay | RHOL |
| Surface treatment | N/A |
| Standardnorm | EN 12385 |
| Alternative SKU | 2301002026 |
