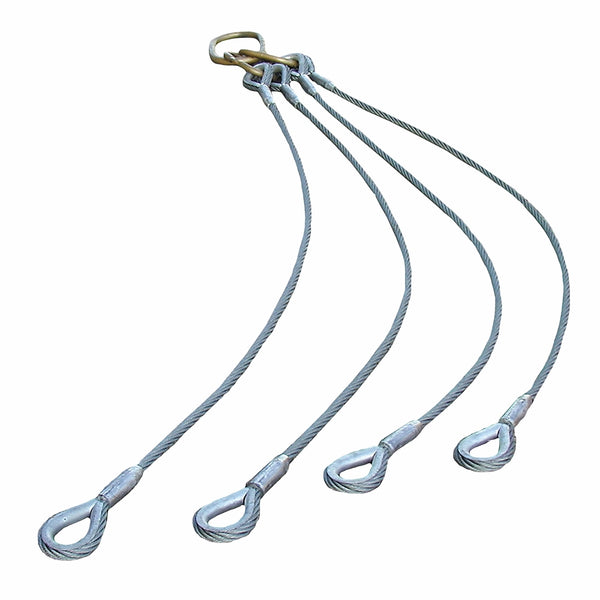

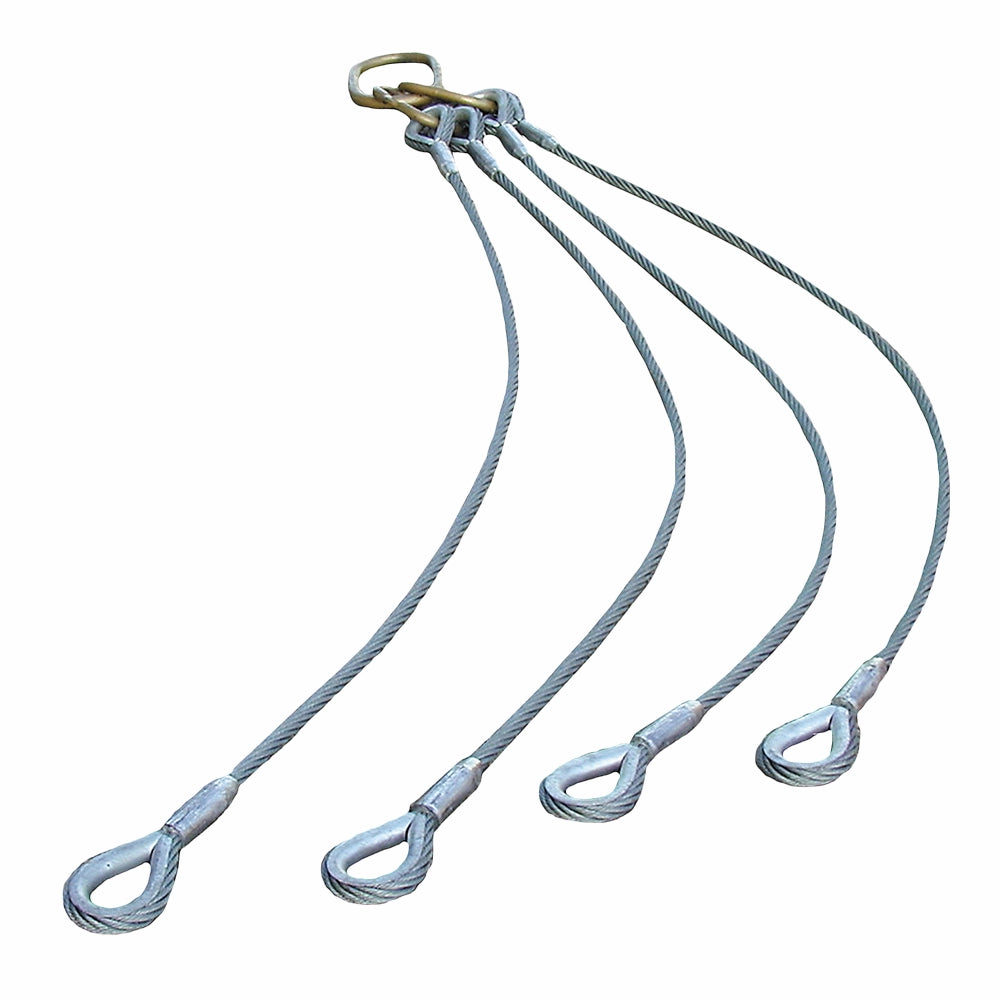

Wiresæt 4 grenet Simpleks Planåg - 20T

Wire set for heavy and demanding lifting tasks

This 4-leg wire set with a diameter of 33 mm and a WLL of 20000 kg is designed for heavy lifting tasks where both capacity and precision are crucial. The cable-laid 7x7x19 construction combines high strength with excellent flexibility so each leg works stably under load in accordance with EN 13414 and with a safety factor of 5:1.

• 7x7x19 cable-laid wire provides smooth handling and reduces the risk of kinking under load
• WLL of 20000 kg at 33 mm wire diameter delivers a robust wire set for heavy lifts with a documented 5:1 safety factor
• Manufactured according to EN 13414 with a wire tensile strength of 1960 N/mm² for high and consistent quality in all four legs

Efficiency and reliability in daily operation

The 4-leg wire set is engineered to distribute the load efficiently between the legs so lifts remain stable and predictable in daily use. The flexible 7x7x19 design makes the set easy to position, while the high wire tensile strength and 5:1 safety factor provide a solid safety margin when working close to the WLL of 20000 kg. This gives the operator a combination of good manoeuvrability and high operational reliability, which is essential when heavy items must be handled repeatedly.

See the full range of wirestropper.
