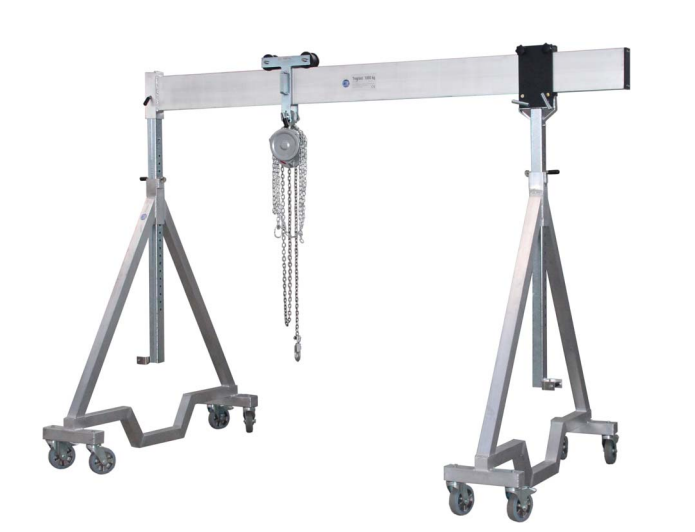

Mobile Gantry Crane - Feltes ASP in Aluminum

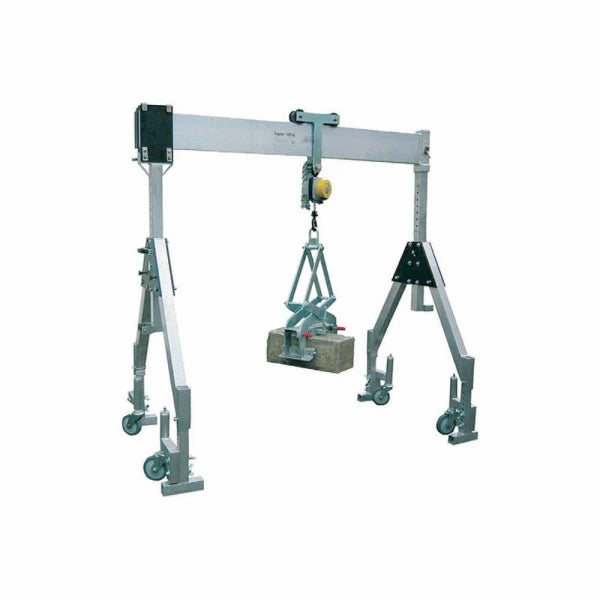

feltes mobil portal kran moveable gantry crane 4jpg

Assembled and ready for use by one person in 5 minutes!
1. Place the two side supports on the beam.
2. Mount the side supports and tighten the associated bolts.
3. The trolley is mounted on the beam and the associated bolts are tightened.
4. Place the hoist on the trolley and you are ready to lift!

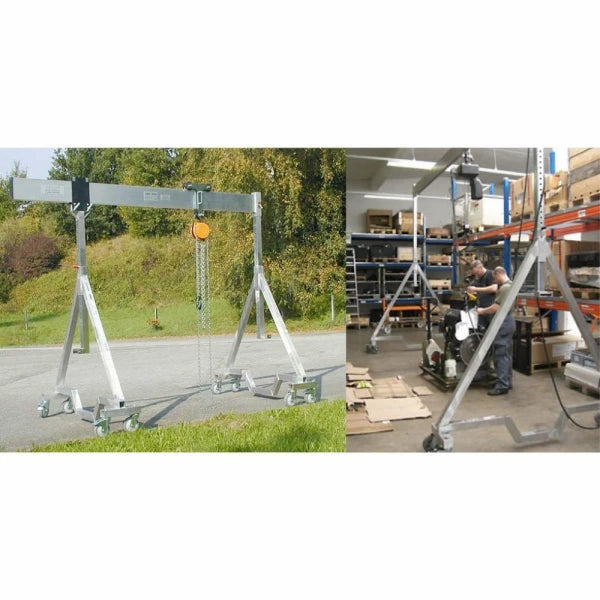

Can be used for:
- Lifting of heavy loads.
- In workshops.
- Unloading and loading of lorries or trailers.

Used i.a. by/in:
- The industry
- The construction
- Treatment plants

The aluminum beam is available in lengths from 2 meters up to 5 meters (WLL: 1,500 kg) and 6 meters (WLL 1,000 kg)

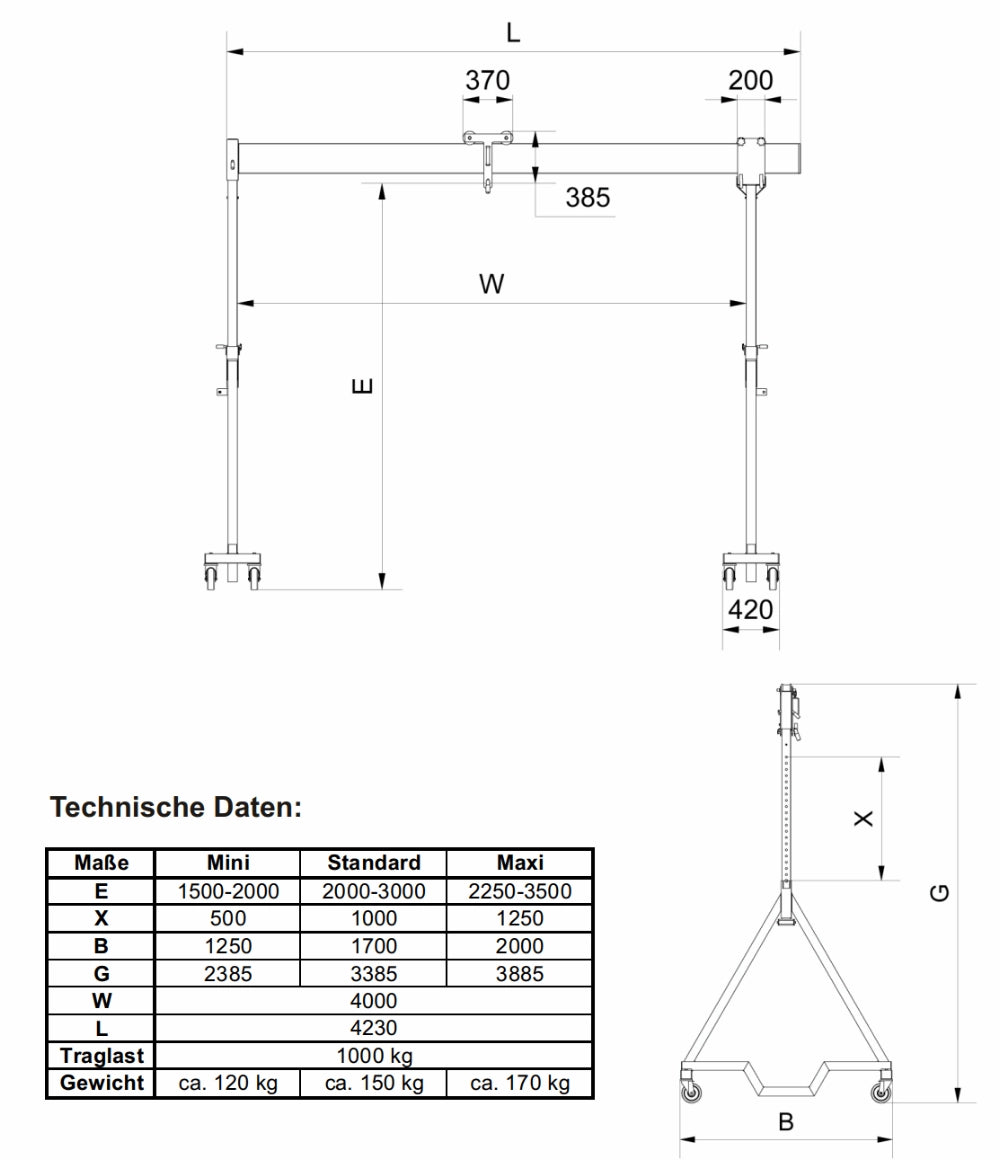

The side supports are available in three sizes:

Mini:
Width of side supports: 1.20
Mounting height for hoist: 1.18 m - 2.10 m

Standard:
Width of side supports: 1.71 m
Mounting height for hoist: 1.68 m - 3.00 m

Maxi:
Width of side supports: 2.29 m
Mounting height for hoist: 2.23 m - 4.00 m
