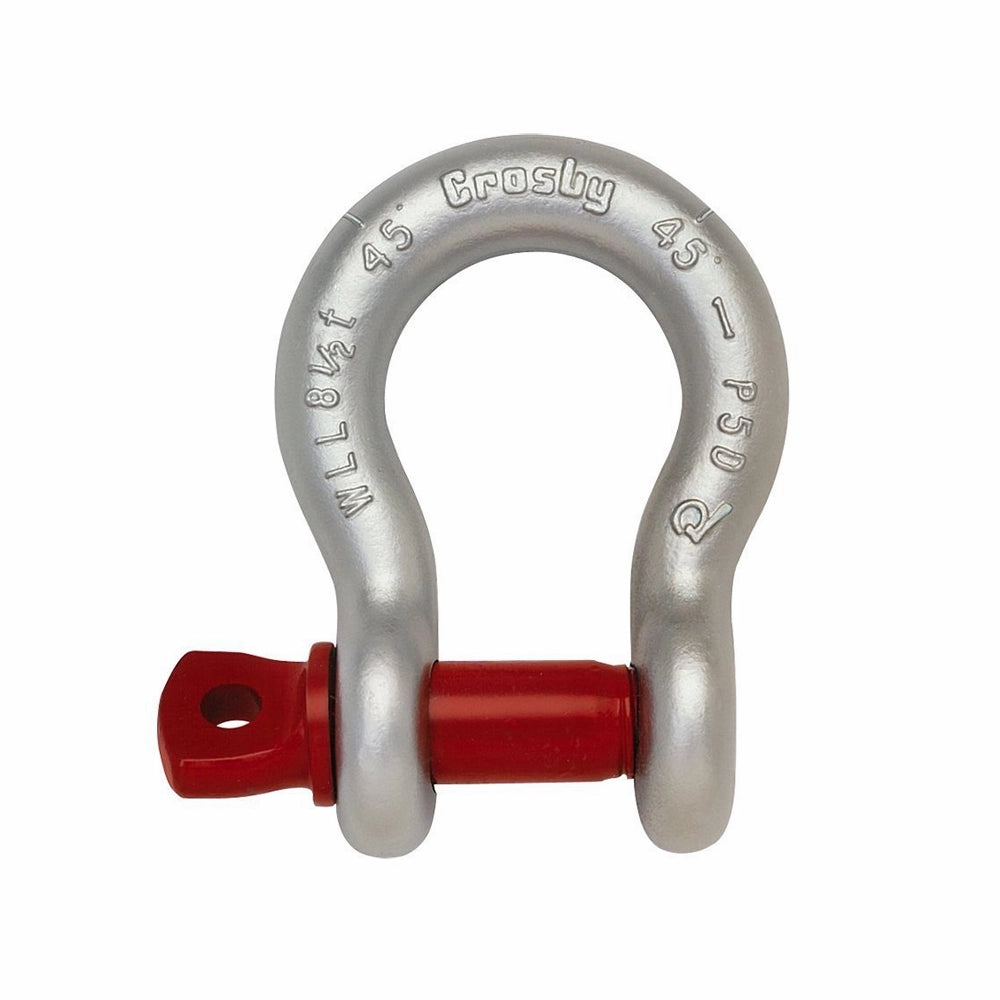

Crosby Shackle G-209 Gr. 2 - 8.50T
Product description
Shackle with a documented load rating
The shackle has a WLL of 8,500 kg and is approved for lifting. It is marked to ASME B30.26. The safety factor is 6:1.
- WLL 8,500 kg
- Model G-209
- Pin diameter 28.4 mm
- Jaw width 42.9 mm
- Material: Steel
How the shackle carries the load
The WLL is the highest load the shackle may carry.
See the full range of shackles.
Specifications
| WLL in kg | 8500 |
| Grade | 6 |
| Jaw size in mm | 42,9 |
| Model | G-209 |
| Approved for lifting | Ja / Yes |
| Surface treatment | N/A |
| Pin size in mm | 28,4 |
| Standardnorm | ASME B30.26 |
| Alternative SKU | 1502008500 |
