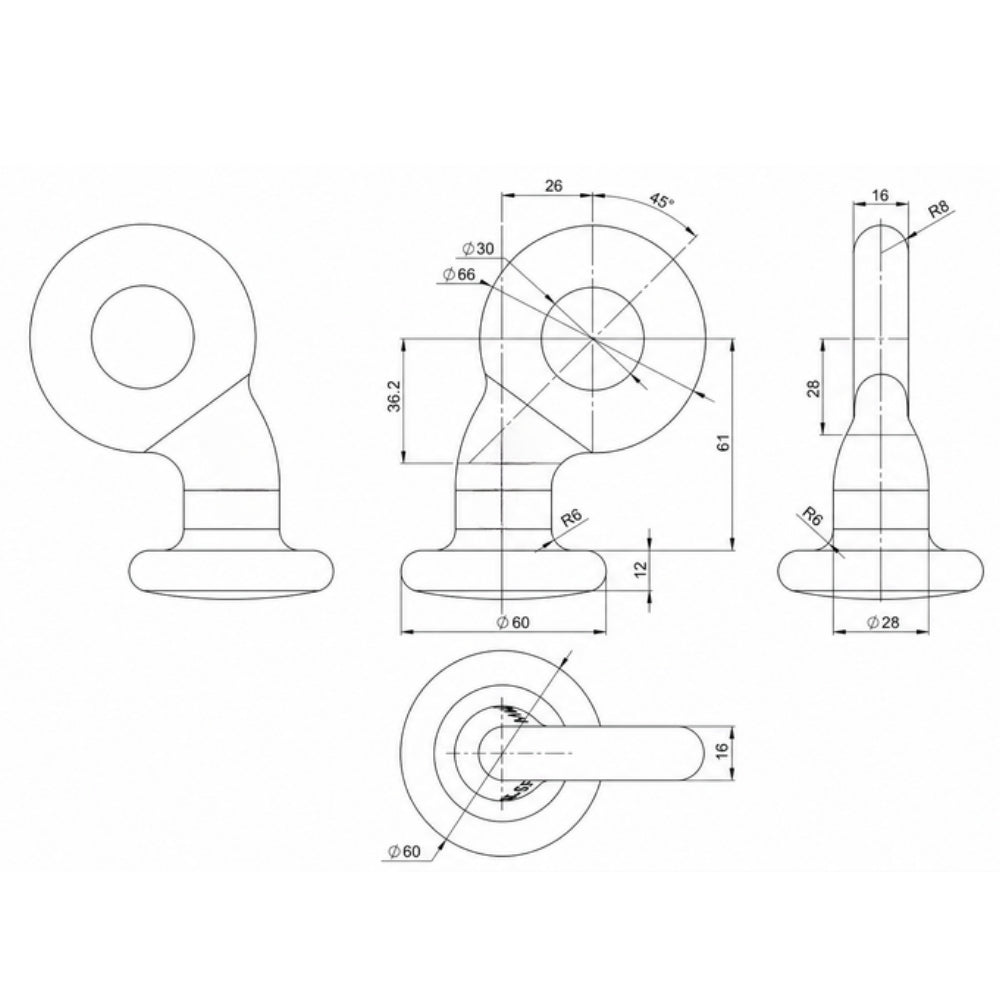

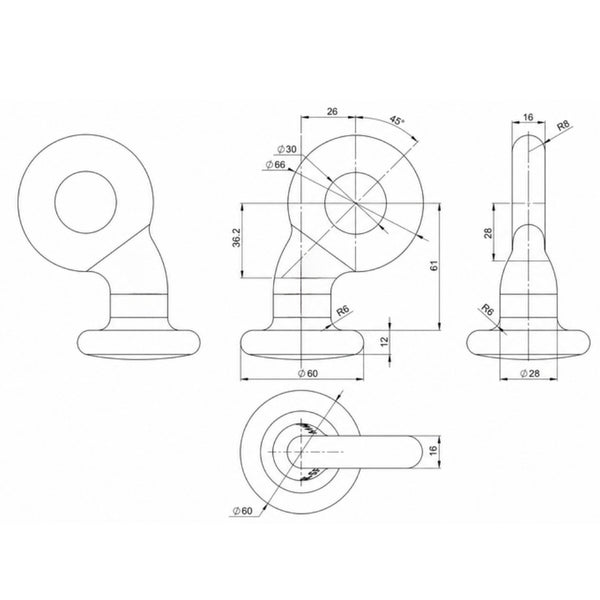

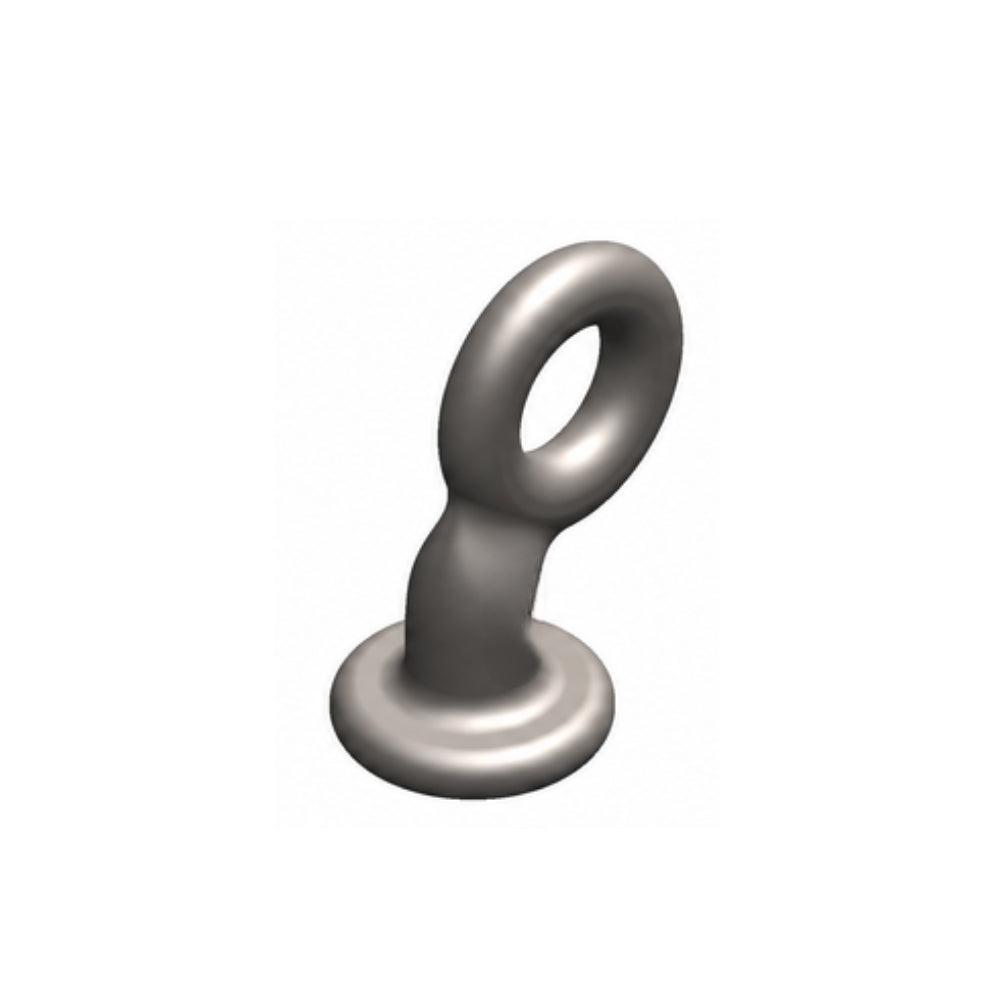

Elephant foot 135 degrees w/eye - 20T

Container deck lashing fitting with eye end

The 135 degree elephant foot with eye is a lashing fitting for securing containers on ships. The foot is inserted into a deck socket, such as a cloverleaf type welded into the ship deck. The eye at the top is the connection point for the lashing chain, turnbuckle or other securing equipment. The 135 degree geometry matches the working angle of diagonal lashings on container decks.

• 20 tonne capacity for controlled securing of containers
• Foot inserts into deck socket welded into the ship deck
• Eye end for connecting lashing chains, turnbuckles or equivalent equipment
• 135 degree angle suited for diagonal lashing of containers

How it works in practice

The fitting is part of the complete lashing system on container ships, where the foot locks into the deck socket and the eye connects to the rest of the lashing assembly. The 135 degree angle provides the correct line of force from deck to container so the load is distributed as intended. The fitting is for cargo securing and lashing only and must never be used for lifting.
