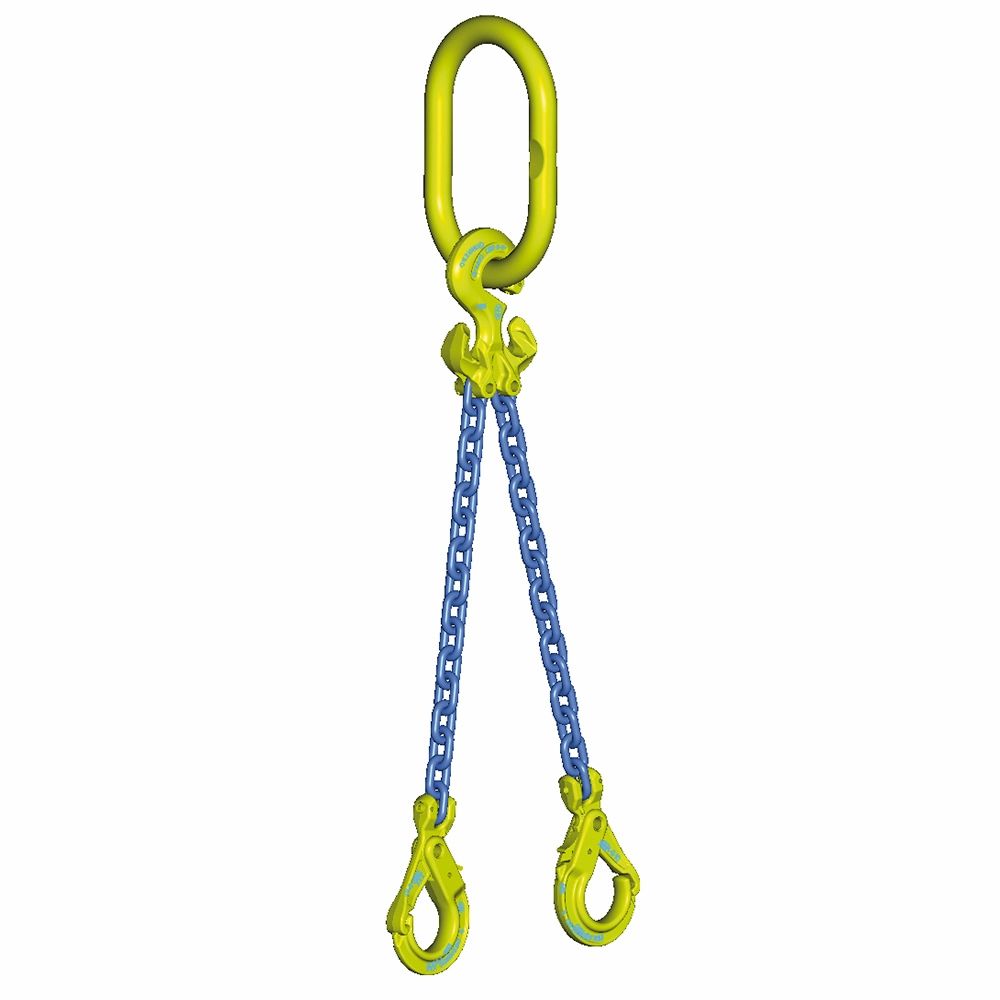

To-benet kædeslynge med kroge og hovedring i gult og blåt.

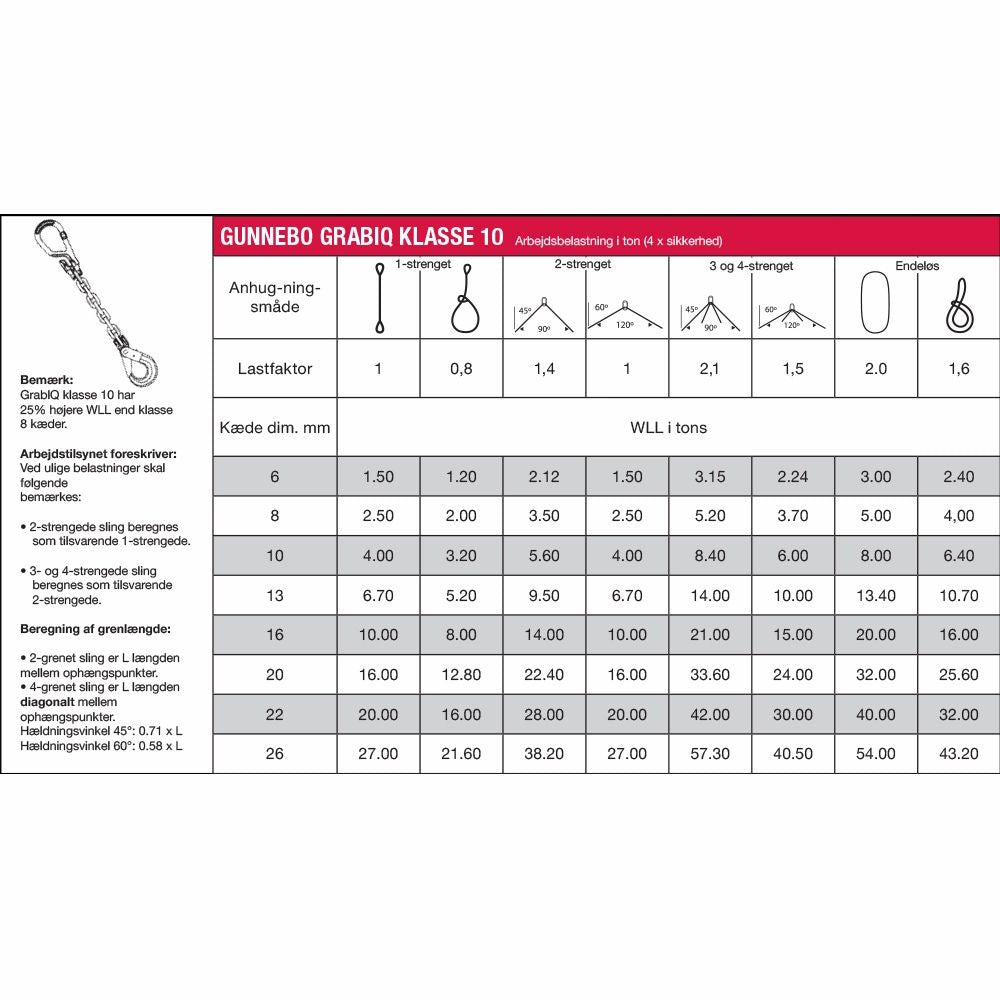

Skema med kædedimensioner, lastfaktorer og arbejdsbelastning for GrabiQ Klasse 10 kædesæt.

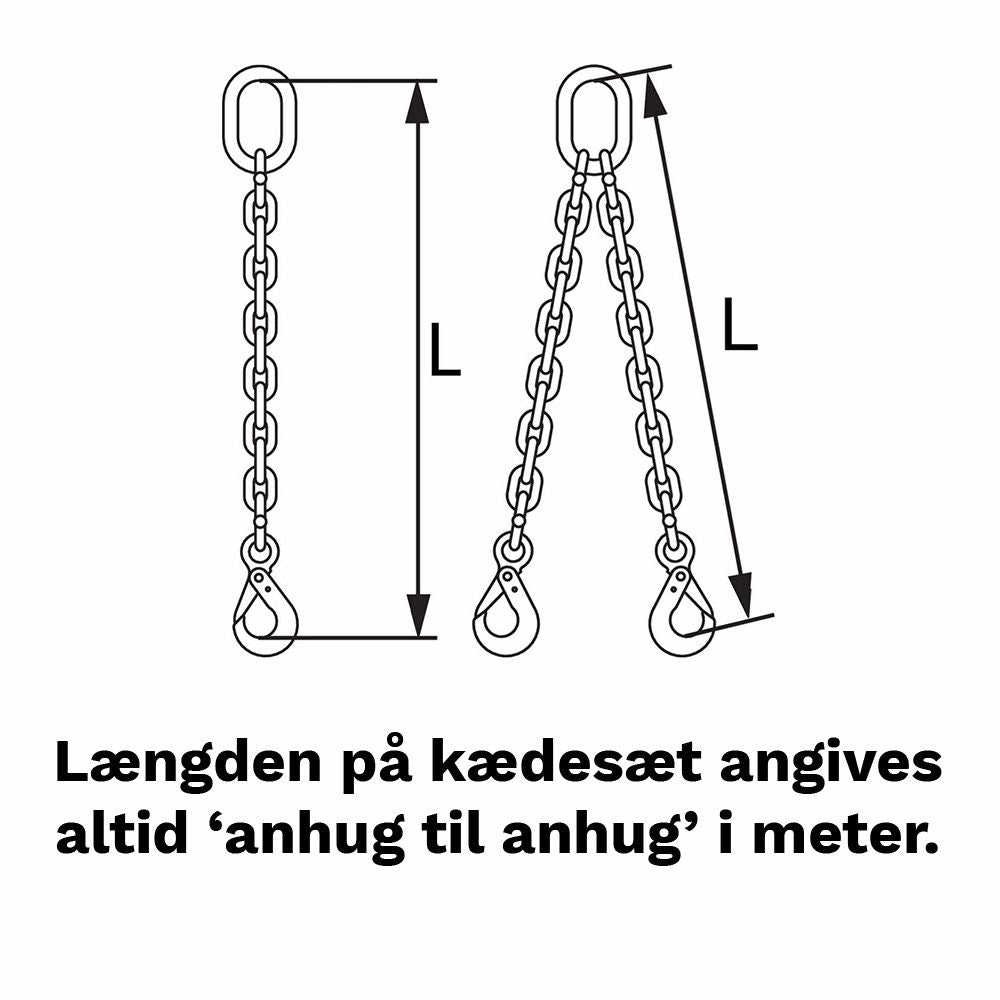

To-benet og enkelt kædesæt med længdemål 'anhug til anhug' markeret som 'L'.

GrabiQ Chain sling TG2-BKG Gr.10 - 10mm

SKU: 10009007
Quantity:
Add to inquiry
Already an user? Log in here
In remote storage

Product description

2-leg chain sling, grade 10

This 2-leg chain sling from Gunnebo GrabiQ is manufactured with 10mm grade 10 blue steel chain and has a WLL of 5.600 kg at 0–45°. The sling is assembled with Gunnebo GrabiQ components and is designed for lifting operations where strength and operational reliability are essential.

  • WLL 5.600 kg at 0–45° (grade 10, 10mm chain, 2-leg)
  • Manufactured with 10mm grade 10 blue steel chain and Gunnebo GrabiQ master ring
  • Equipped with safety hook for secure load retention
  • Safety factor 4:1 in accordance with EN 818-4

Specifications and application

The 2-leg chain sling distributes the load across two attachment points, providing a stable lifting position and reducing the risk of rotation. The 10mm grade 10 chain and carefully selected components ensure a long service life under frequent use.

View our full range of 2-leg chain slings

Specifications

WLL in kg 5600/4000
Dimension 10mm
Grade 10
Legs 2
Standardnorm EN 818-4 (WLL+25%)
