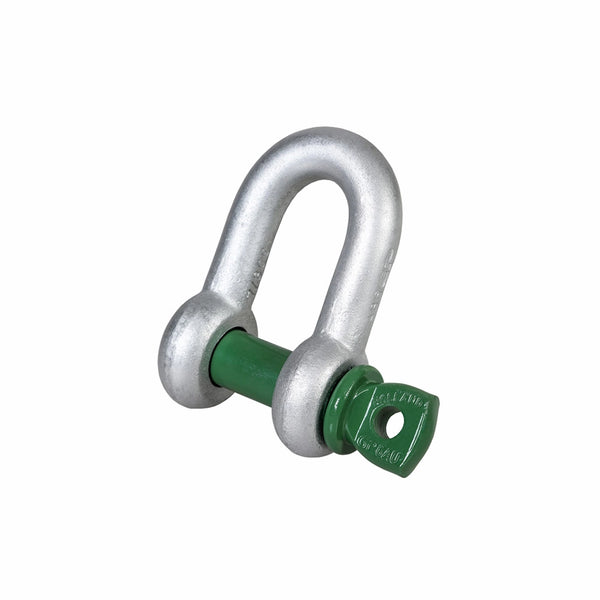

Green Pin D-Shackle G-4151 Gr. 2 - 0,75T
Quantity:
Already an user? Log in here
In stock
Stock by location: ● Odense: 90 ● Aalborg: 125 ● Esbjerg: 19
Product description
The straight form of a D-shackle suits connections where the load follows the shackle’s longitudinal direction. The screw pin must be fully engaged before the shackle forms part of a lifting assembly.
Avoid side loading unless it is described by the manufacturer. A round sling must have sufficient room in the shackle opening so that it is not pressed against an undersized contact radius.
Specifications
| WLL in kg | 750 |
| Grade | 6 |
| Jaw size in mm | 13,5 |
| Model | G-4151 |
| Approved for lifting | Ja / Yes |
| Surface treatment | N/A |
| Pin size in mm | 10 |
| Standardnorm | EN 13889 |
| Alternative SKU | 1506000750 |
