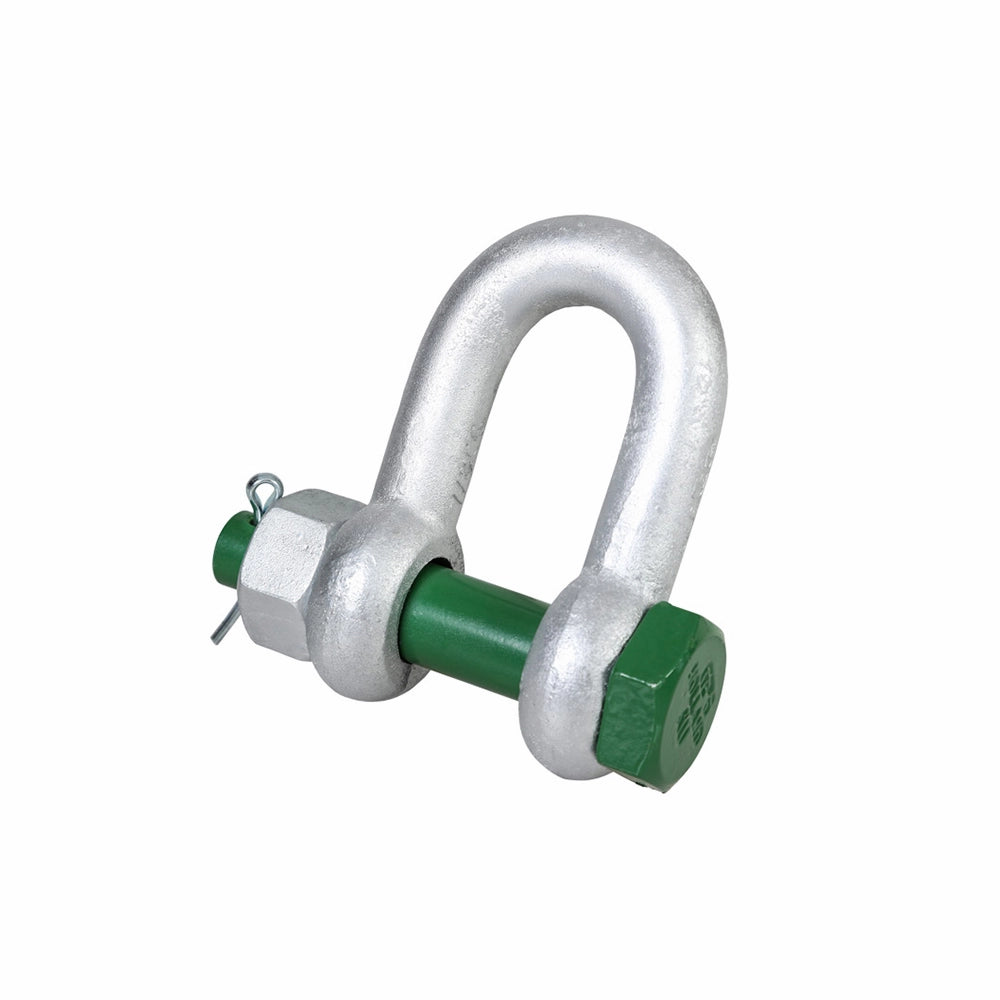

Green Pin D-Shackle G-4153 Gr. 3 - 2.00T

Engineered for heavy-duty safety

This Green Pin D-shackle delivers a 6:1 safety factor, meaning the minimum breaking load is six times the 2,000 kg working load limit. Constructed from high-strength steel and finished with hot-dip galvanization, it resists corrosion while maintaining structural integrity. The model G-4153 meets EN 13889 and ASME B30.26 standards, with a 16 mm pin diameter and a 22 mm gap for secure load attachment.

• Safety factor 6:1 ensures exceptional strength under load
• Working load limit of 2000 kg for demanding tasks
• Hot-dip galvanized steel provides long-term corrosion resistance
• Includes safety bolt with nut and cotter pin

Certified performance across temperature ranges

Certified to EN 13889, ASME B30.26, and US Fed Spec RR-C-271 Type IVB Class 3 Grade A, this shackle performs reliably from -40°C to +200°C. The Class 6 steel construction and comprehensive certification portfolio—including 2.1, 2.2, 3.1 MTC, DNV 2.7-1a, DNV 2.7-1b, DNV 2.22, and CE—confirm its suitability for professional scenarios where safety and compliance are non-negotiable.
