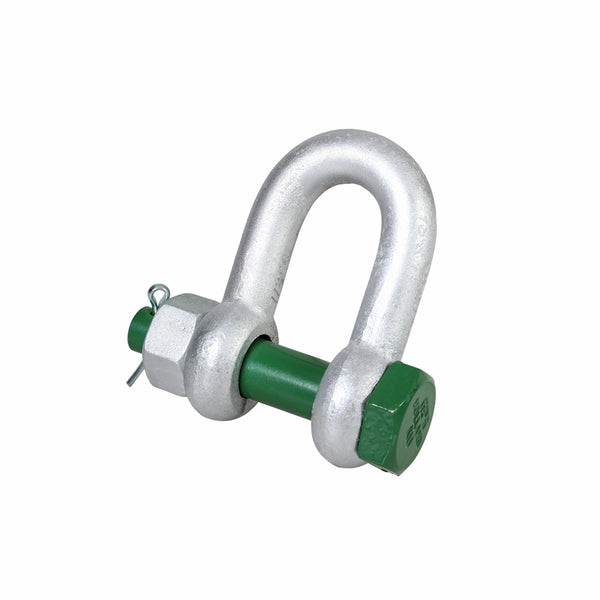

Green Pin D-Shackle G-4153 Gr. 3 - 3.25T
Product description
Engineered for demanding industrial tasks
The Green Pin D-Shackle G-4153 delivers a working load limit of 3,250 kg with a 6:1 safety factor, ensuring reliable performance in heavy-duty scenarios. Constructed from high-strength steel Grade 3 and finished with hot-dip galvanization, this shackle provides exceptional corrosion resistance. Certified to EN 13889 and ASME B30.26 standards, it meets rigorous industry requirements for professional lifting tasks.
- Working load limit: 3250 kg with 6:1 safety factor
- Hot-dip galvanized steel for corrosion protection
- Pin diameter: 19 mm, gap: 27 mm
- Temperature range: -40°C to +200°C operational capability
- Safety bolt included for enhanced security
Built for reliability and longevity
This shackle's high-strength steel construction and protective galvanized finish ensure durability across diverse environments. The 6:1 safety factor means the minimum breaking load is six times the working load limit, providing substantial safety margins. Compliance with EN 13889, ASME B30.26, and US Federal Specification RR-C-271 Type IVB standards confirms its suitability for critical projects requiring certified equipment and documented traceability.
You can find similar products in the Shackles category.
Specifications
| WLL in kg | 3250 |
| Grade | 6 |
| Jaw size in mm | 27 |
| Model | G-4153 |
| Approved for lifting | Ja / Yes |
| Surface treatment | N/A |
| Pin size in mm | 19 |
| Standardnorm | EN 13889 |
| Alternative SKU | 1506503250 |
