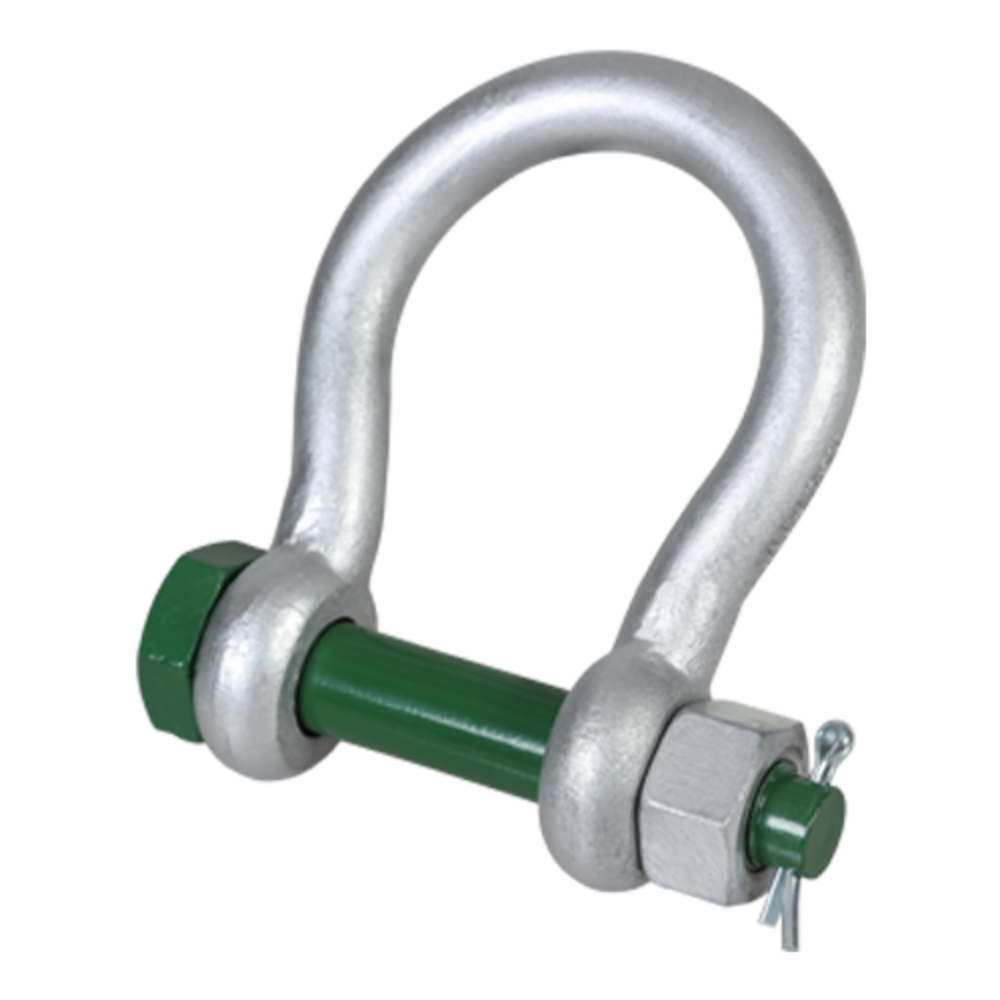

Green Pin Shackle Big mouth G-4263 Gr. 8 - 4.75T
Product description
Durable Green Pin shackle with extra wide mouth
The Green Pin Shackle Big mouth G-4263 Grade 8-4.75T is a robust bow shackle made from alloy steel with a WLL of 4.75 tonnes and an extra wide mouth, making it suitable where the connection point is wider than usual. It is approved for lifting, complies with ASME B30.26 and features a 6:1 safety factor for high operational safety.
- Grade 8 shackle in alloy steel, quenched and tempered for high strength[2][6]
- Big mouth design with a 63 mm jaw opening for wide connection points[2]
- WLL 4.75 tonnes, 6:1 safety factor and suitable for lifting[2][6][10]
Reliable choice for demanding lifting tasks
The hot-dip galvanized finish ensures long service life even in demanding environments and helps keep maintenance to a minimum. The shackle is designed for safe handling of loads within the specified WLL and can be used in both single-leg and multi-leg configurations where high demands are placed on reliability and traceability.
Specifications
| WLL in kg | 4750 |
| Grade | 8 |
| Jaw size in mm | 63 |
| Model | G-4263 |
| Approved for lifting | Ja / Yes |
| Surface treatment | N/A |
| Pin size in mm | 25 |
| Standardnorm | ASME B30.26 |
| Alternative SKU | 1505700475 |
