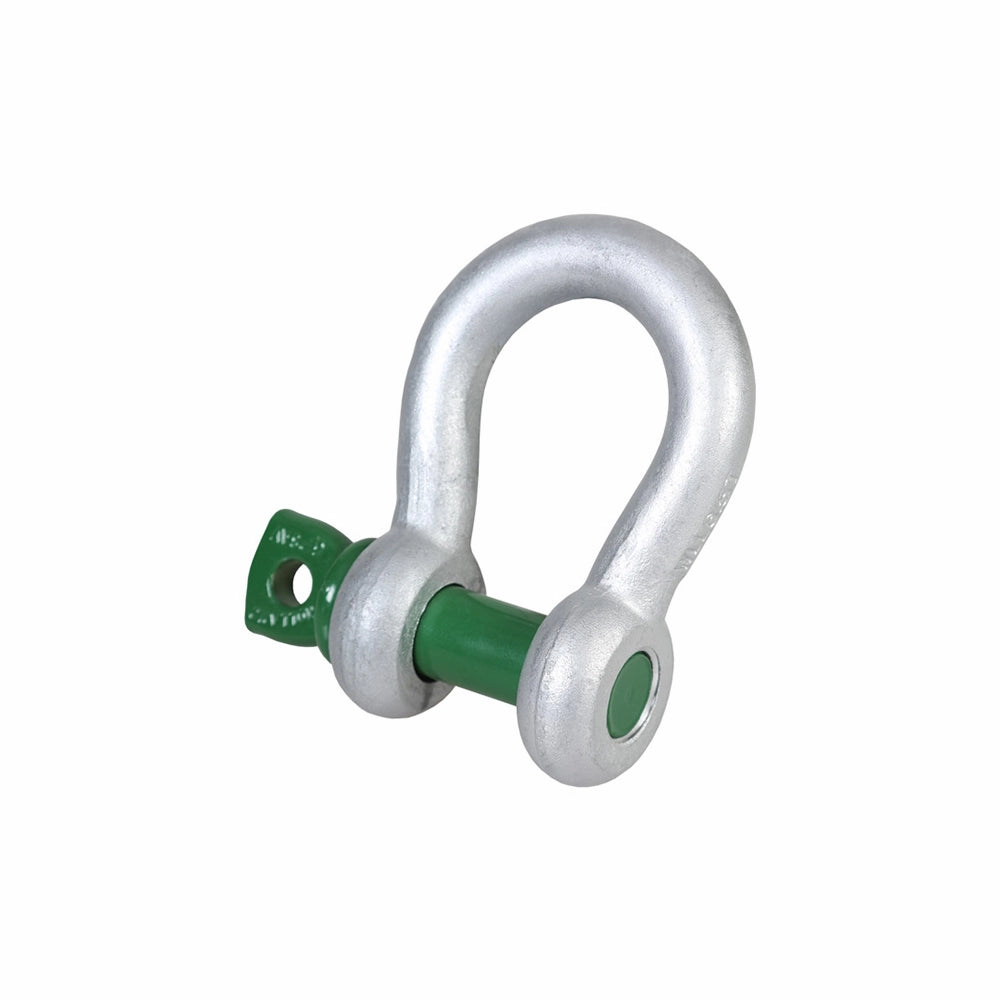

D-formet sjækel med sølvfarvet bue og grøn bolt med tekst.

Green Pin Shackle G-4161 Gr. 2 - 0.33T

SKU: 10000803
Quantity:
Add to inquiry
Already an user? Log in here
In stock

Stock by location:
Odense: 93
Copenhagen: 7

Product description

The curved shackle body provides a broader contact surface than a straight D-shackle. The screw pin makes the connection simple to open and close, but it must be correctly fitted and retained during use.

Avoid side loading unless the manufacturer states otherwise. When connecting a round sling, the opening and radius must suit the sling so that its fibres are not unnecessarily pinched or worn.

Specifications

WLL in kg 330
Grade 6
Jaw size in mm 9,5
Model G-4161
Approved for lifting Ja / Yes
Surface treatment N/A
Pin size in mm 6
Standardnorm EN 13889
Alternative SKU 1505000330
