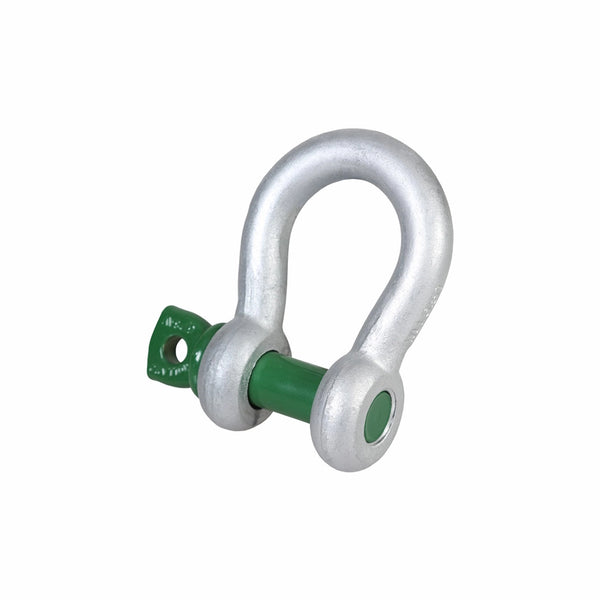

Green Pin Shackle G-4161 Gr. 2 - 55.0T

Heavy-duty bow shackle with high WLL and broad certification

The Green Pin G-4161 is a bow shackle manufactured from hot dipped galvanized grade 6 high tensile steel in Holland. It is designed with a practical screw collar pin that enables quick and efficient assembly and disassembly, making it ideal for tasks where the shackle needs to be moved frequently. The thoughtful design fully chambers the thread in the shackle eye, ensuring a smooth bearing surface on the pin that does not damage connected lifting gear. The characteristic green pin makes it easy to identify the shackle in all working conditions.

• WLL of 55 t with a safety factor of 6:1
• Jaw width of 105 mm and pin diameter of 70 mm
• Hot dipped galvanized grade 6 high tensile steel for long-term durability
• Chambered thread in the eye ensures a smooth bearing surface on the pin that does not damage connected lifting gear
• Conforms to EN 13889 and US Fed. Spec. RR-C-271, ASME B30.26

Built for intensive use under extreme conditions

This shackle is engineered to deliver safe and stable performance across a wide temperature range from -40 °C to +200 °C. The precise manufacturing guarantees a reliable connection during intensive use. The shackle is CE marked, and additional documentation and certificates, including 3.1, MTC, and DNV certifications, can be purchased upon request for projects with specific traceability requirements.
