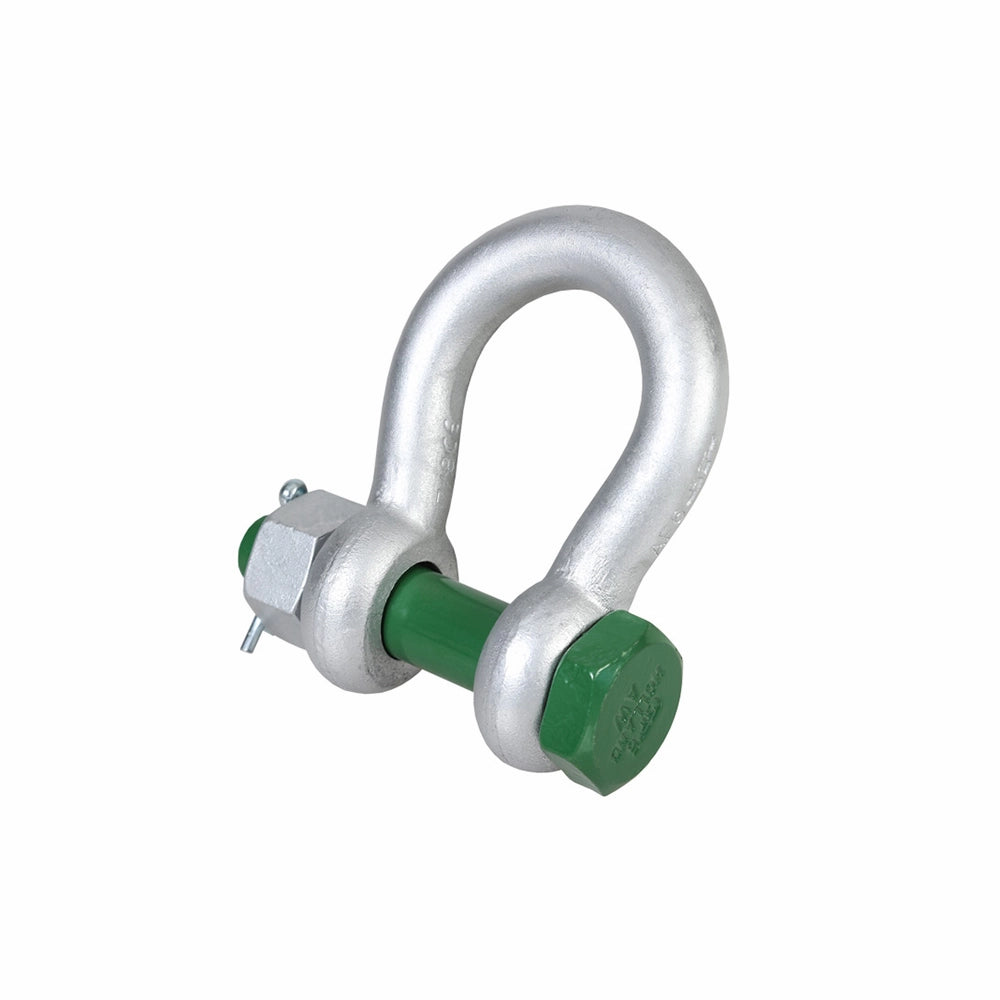

Green Pin Shackle G-4163 Gr. 3 - 0.50T
Stock by location: ● Odense: 119 ● Copenhagen: 11 ● Esbjerg: 10
Product description
Certified strength for demanding tasks
The Green Pin Shackle G-4163 Gr. 3 - 0.50T complies with EN 13889 and US Fed Spec. RR-C-271 Type IVA Class 3, Grade A, ensuring adherence to recognized industry standards. With a safety factor of 6:1, the minimum breaking load is six times the Working Load Limit of 500 kg, providing reliable performance under load. The hot-dip galvanized surface delivers enhanced corrosion resistance for extended durability in harsh environments.
- Working Load Limit of 500 kg for secure handling
- Safety factor 6:1 ensures reliability under demanding conditions
- Hot-dip galvanized finish provides superior corrosion protection
Built for professional applications
Made from high-strength steel, class 6, this shackle features a safety bolt for enhanced security during operations. The temperature range from -40˚C to +200˚C ensures functionality across diverse scenarios. Certificates available include 2.1, 2.2, 3.1, MTC, DNV 2.7.1, DNV 2.22, and CE, supporting compliance verification. The 12 mm gap and 8 mm pin diameter provide precise compatibility with standard equipment configurations.
Explore our Shackles collection.
Specifications
| WLL in kg | 500 |
| Grade | 6 |
| Jaw size in mm | 12 |
| Model | G-4163 |
| Approved for lifting | Ja / Yes |
| Surface treatment | N/A |
| Pin size in mm | 8 |
| Standardnorm | EN 13889 |
| Alternative SKU | 1505500500 |
