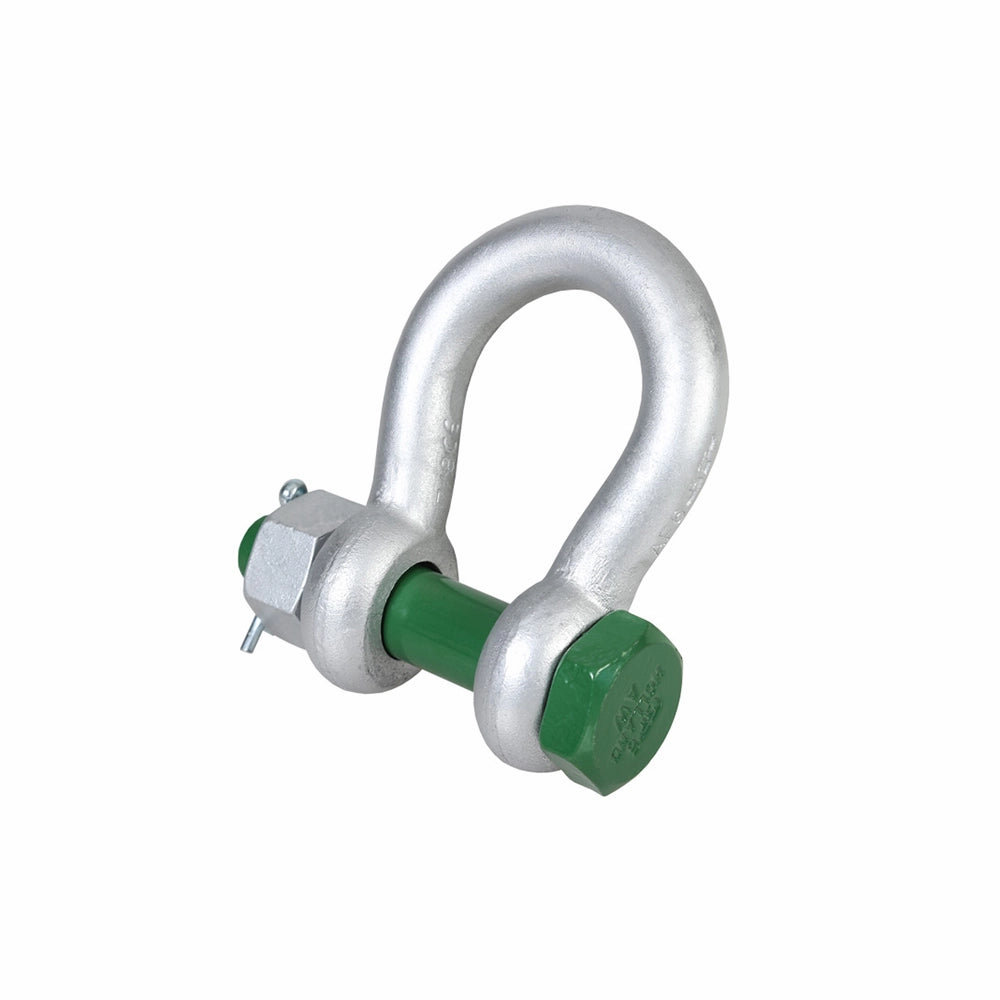

Green Pin Shackle G-4163 Gr. 3 - 0.75T

Engineered strength for professional tasks

The Green Pin Shackle G-4163 Gr. 3 - 0.75T is manufactured from high-strength Class 6 steel, ensuring exceptional durability for demanding lifting tasks. With a safety factor of 6:1, the minimum breaking load reaches six times the working load limit of 750 kg. The hot-dip galvanized surface delivers enhanced corrosion resistance, extending its service life in challenging environments.

• Working load limit: 750 kg with 6:1 safety factor
• Temperature range: -40˚C to +200˚C operational capability
• Complies with EN 13889 and US Fed spec standards
• Safety bolt included for enhanced security during use
• Certificates available: 2.1, 2.2, 3.1, MTC, DNV variants

Built for reliability and compliance

This Green Pin shackle provides dependable performance across diverse scenarios, from standard projects to specialized applications. The hot-dip galvanized finish protects against environmental wear, while the wide temperature tolerance ensures functionality in extreme conditions. Full documentation, including certificates 2.1, 2.2, 3.1, MTC, DNV 2.7.1, DNV 2.22, and CE certification, confirms compliance with international safety requirements for professional lifting tasks.
