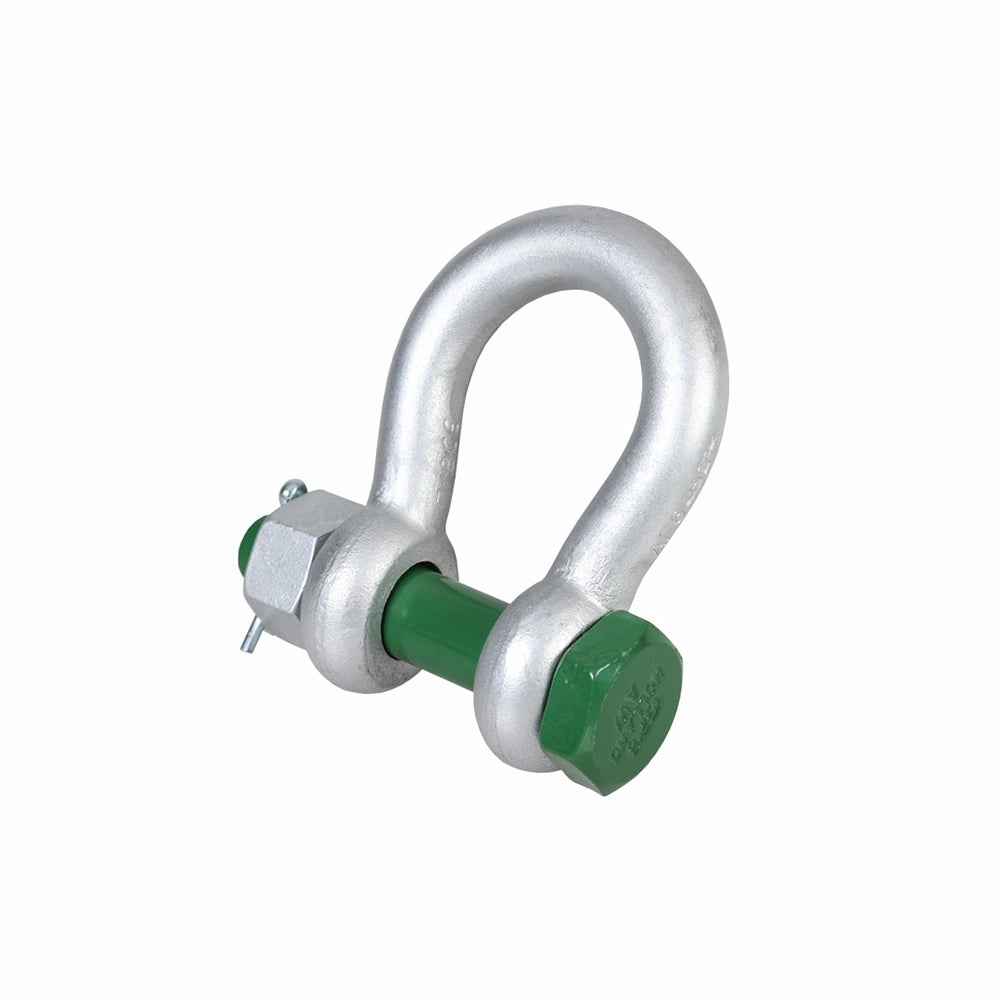

Green Pin Shackle G-4163 Gr. 3 - 1.00T
Stock by location: ● Odense: 20 ● Aalborg: 22 ● Copenhagen: 6 ● Esbjerg: 11
Product description
Engineered for maximum safety
The Green Pin Shackle G-4163 features a safety factor of 6:1, ensuring it can withstand loads six times its Working Load Limit of 1,000 kg. Constructed from high-strength Class 6 steel with a hot-dip galvanized surface, this shackle delivers enhanced corrosion resistance for demanding industrial scenarios. The 11 mm pin diameter and 17 mm gap provide precise compatibility for diverse lifting tasks.
- Safety factor 6:1 for exceptional load margin
- Working Load Limit: 1000 kg capacity
- Hot-dip galvanized for corrosion protection
Built for demanding projects
This shackle complies with EN 13889 and US Fed Spec RR-C-271 Type IVA Class 3, Grade A standards, ensuring verified safety and reliability. The temperature range of -40°C to +200°C enables operation in extreme conditions. A safety bolt enhances security during use. Comprehensive certificates are available, including 2.1, 2.2, 3.1, MTC, DNV 2.7.1, DNV 2.22, and CE, providing documented assurance for critical applications.
If you need similar products, explore our Shackles selection.
Specifications
| WLL in kg | 1000 |
| Grade | 6 |
| Jaw size in mm | 17 |
| Model | G-4163 |
| Approved for lifting | Ja / Yes |
| Surface treatment | N/A |
| Pin size in mm | 11 |
| Standardnorm | EN 13889 |
| Alternative SKU | 1505501000 |
