Green Pin Shackle G-4163 Gr. 3 - 1.50T
Stock by location: ● Odense: 66 ● Aalborg: 6 ● Copenhagen: 12 ● Esbjerg: 13
Product description
Engineered for demanding industrial tasks

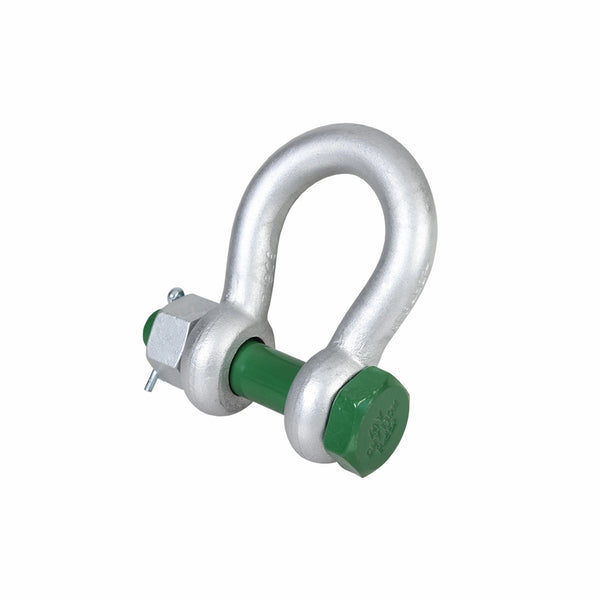

The Green Pin Shackle G-4163 is constructed from high-strength steel Class 6, delivering exceptional robustness for challenging projects. With a safety factor of 6:1, this shackle provides reliable performance under stress, ensuring the Working Load Limit of 1500 kg is maintained with significant safety margins. The hot-dip galvanized surface treatment enhances corrosion resistance, extending service life in harsh environments.
- Working Load Limit: 1500 kg for safe handling
- Safety factor 6:1 ensures reliability under demanding conditions
- Operational temperature range: -40°C to +200°C
- Complies with EN 13889 and US Fed Spec standards
Built for long-term performance
The hot-dip galvanized finish provides superior protection against corrosion, making this shackle suitable for extended use in demanding scenarios. A safety bolt adds security during operations, while the 13 mm pin diameter and 19 mm gap ensure compatibility with standard equipment. Operating reliably from -40°C to +200°C, this shackle adapts to various environmental conditions. Multiple certifications, including 2.1, 2.2, 3.1, and MTC, are available upon request.
Explore our Shackles collection.
Specifications
| WLL in kg | 1500 |
| Grade | 6 |
| Jaw size in mm | 19 |
| Model | G-4163 |
| Approved for lifting | Ja / Yes |
| Surface treatment | N/A |
| Pin size in mm | 13 |
| Standardnorm | EN 13889 |
| Alternative SKU | 1505501500 |
