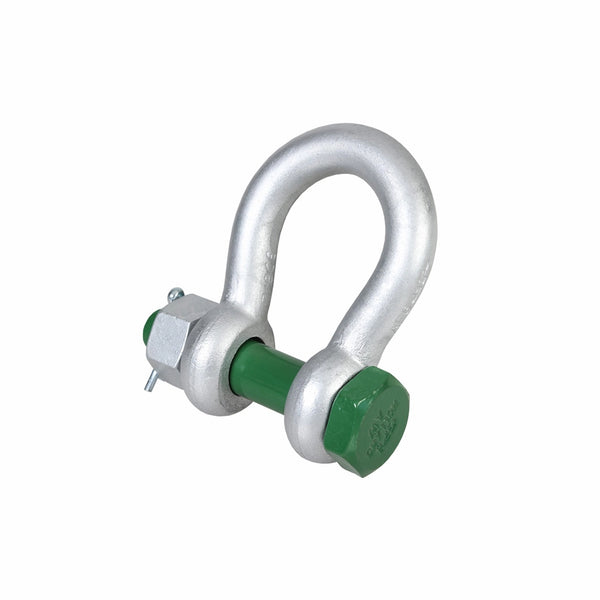

Green Pin Shackle G-4163 Gr. 3 - 12.0T

Built for demanding lifting tasks

The Green Pin Shackle G-4163 Gr. 3 features a Working Load Limit of 12,000 kg and is constructed from high-strength steel Class 6. With a safety factor of 6:1, the Minimum Breaking Load reaches six times the WLL, ensuring exceptional reliability. The hot-dip galvanized surface provides enhanced corrosion resistance, while the safety bolt adds security during operations.

• Working Load Limit: 12,000 kg
• Safety factor 6:1 for maximum reliability
• Hot-dip galvanized finish resists corrosion
• Pin diameter 35 mm, gap 51 mm
• Temperature range: -40°C to +200°C

Engineered for reliable performance

Compliance with EN 13889 and US Fed Spec. RR-C-271 Type IVA Class 3, Grade A standards ensures that this shackle meets rigorous safety requirements. The robust steel construction delivers durability across diverse scenarios, while the galvanized finish maintains integrity in harsh environments. Certificates available include 2.1, 2.2, 3.1, MTC, DNV 2.7.1, DNV 2.22, and CE, confirming quality assurance for professional applications.
