Gunnebo ANJA Shackle type 854 Gr. 2 - 8.50T
Product description

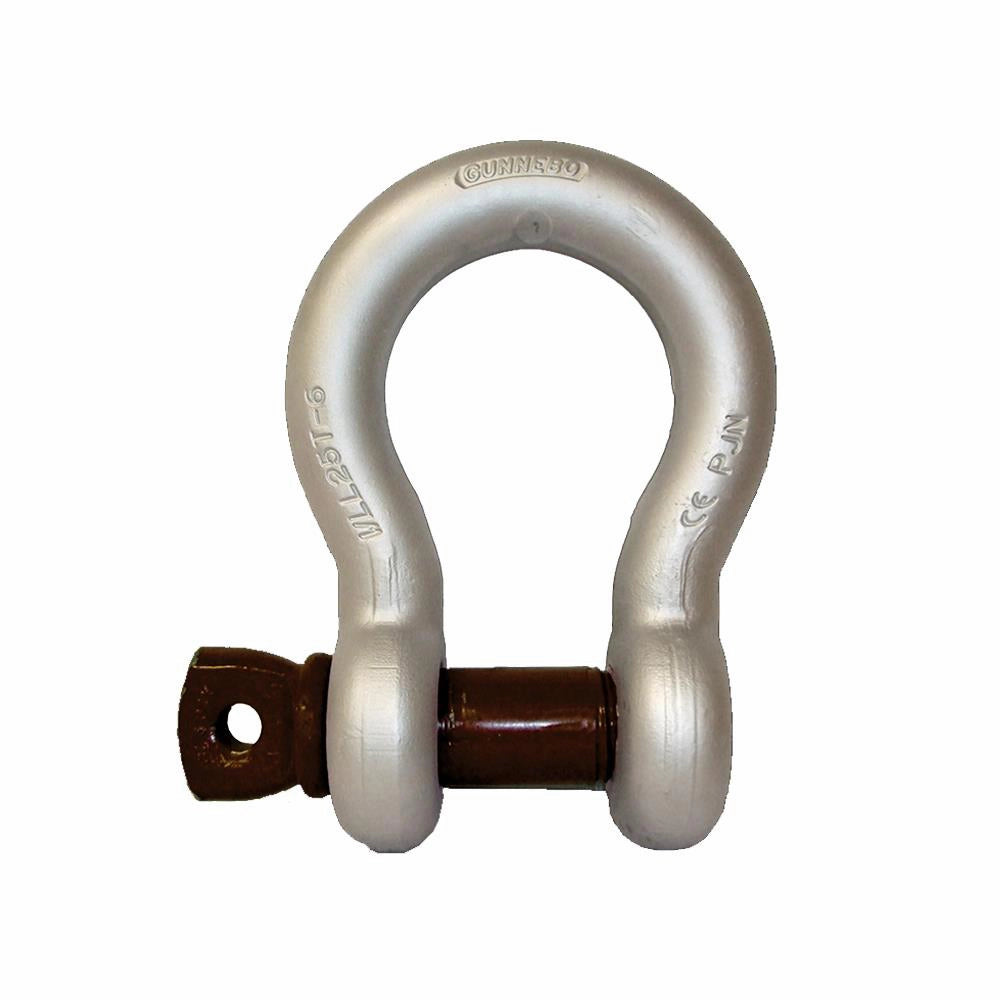

This bow shackle has a curved body and a screw pin. The shape provides space around the connection and can be relevant where several or wider lifting components need suitable support.
The screw pin must be fully engaged and checked before use. Always assess the shackle opening and bow radius in relation to the lifting gear it will connect to.
Specifications
| WLL in kg | 8500 |
| Grade | 6 |
| Jaw size in mm | 43 |
| Model | A085425 |
| Approved for lifting | Ja / Yes |
| Surface treatment | N/A |
| Pin size in mm | 28 |
| Standardnorm | EN 13889 |
| Alternative SKU | 1501008500 |
