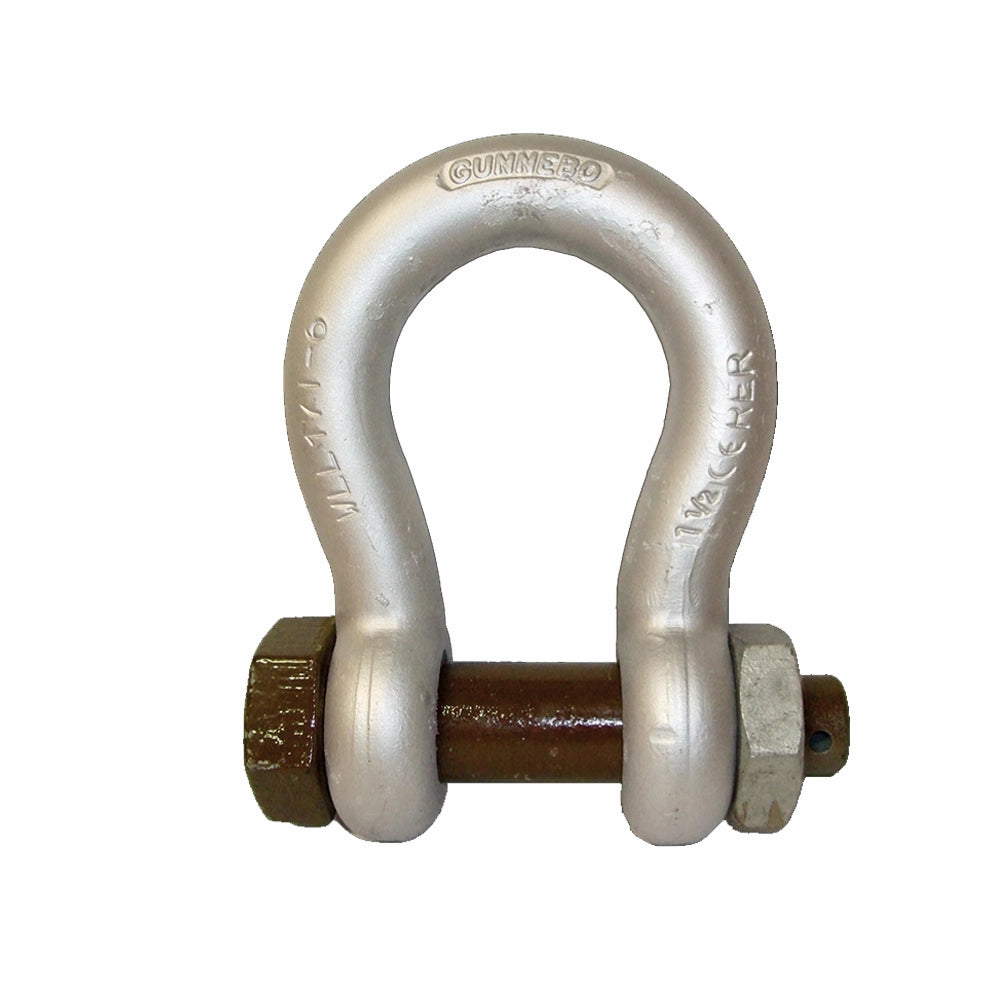

Gunnebo ANJA Shackle type 855 Gr. 3 - 6.50T

Built for demanding heavy-duty tasks

The Gunnebo ANJA Shackle type 855 complies with EN 13889, ensuring adherence to recognized safety standards for professional applications. With a Working Load Limit of 6,500 kg, this shackle handles substantial loads across demanding scenarios. The 6:1 safety factor provides enhanced reliability, while hot-dip galvanization delivers corrosion resistance for an extended service life. Constructed from high-strength carbon steel, alloyed and hardened to class 6, it meets rigorous performance requirements.

• DNV 2.7-1 and DNV 2.7-3 type approval certified
• Operating temperature range from -20°C to 200°C maintained
• Pin diameter 25 mm with 37 mm gap width

Certified quality and complete traceability

Each shackle includes a test certificate and a traceable raw material certificate per EN 10204 - 3.1, providing documentation for quality assurance. The brown-painted bolt and pin applied over galvanization offer visual identification. Compliance with DNV 2.7-1, EN 13889, and US Fed. Spec. RR-C-271 standards ensures suitability for critical projects. A tolerance of ±5% on internal dimensions accommodates practical fitting requirements in varied configurations.
