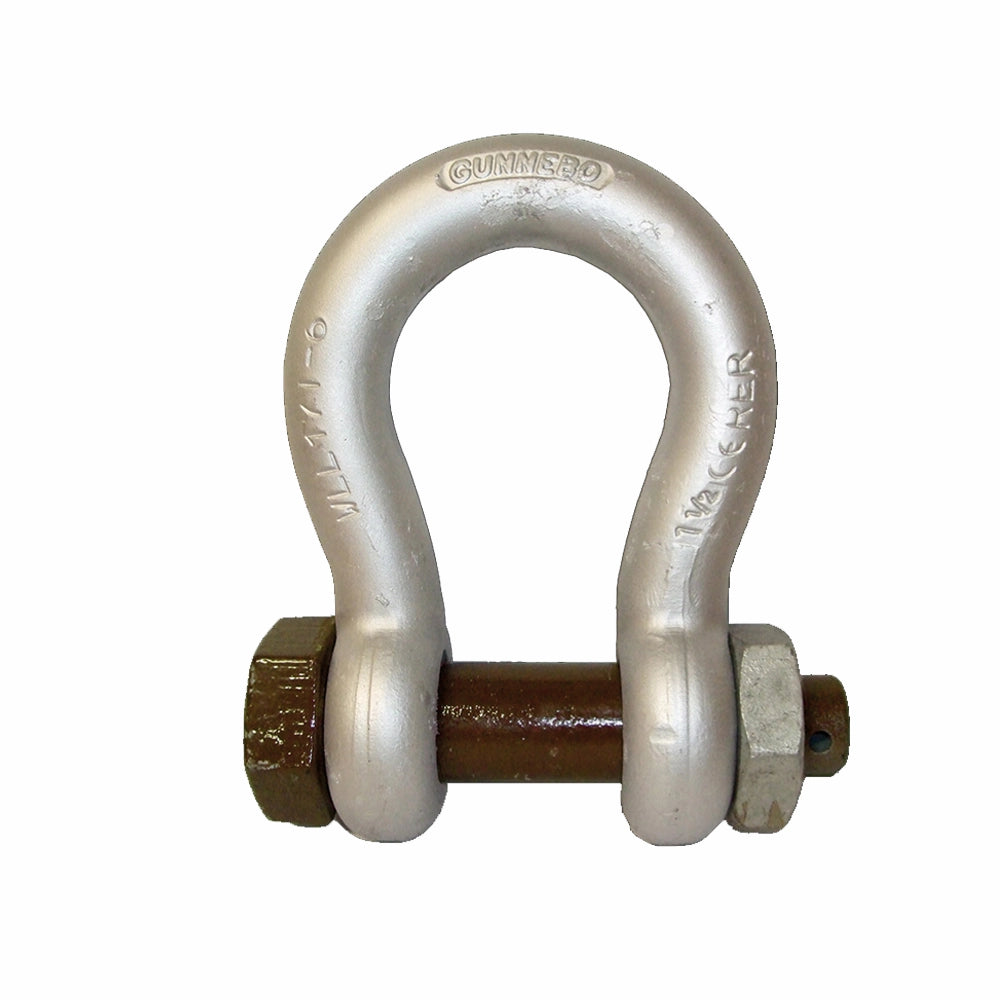

Gunnebo ANJA Shackle type 855 Gr. 3 - 8.50T

Built for demanding heavy lifting

The Gunnebo ANJA Shackle type 855 Gr. 3 delivers a working load limit of 8,500 kg, making it suitable for demanding lifting tasks. Constructed from high-strength carbon steel that is alloyed and hardened to class 6, this shackle provides robust performance. The hot-dip galvanized finish ensures excellent corrosion resistance, while the brown-painted bolt and pin add durability. Compliant with EN 13889 standards, it features a safety factor of 6:1 for enhanced reliability.

• Type approved to DNV 2.7-1 and US Fed. Spec. RR-C-271
• Includes test certificate and EN 10204-3.1 traceable material certificate
• Operates effectively within temperature range -20°C to 200°C

Precision engineering for critical projects

This shackle's 6:1 safety factor provides a substantial margin for secure lifting scenarios, reducing risk in critical applications. The 28 mm pin diameter and 43 mm gap ensure compatibility with various equipment configurations. Type approval with DNV 2.7-1 and DNV 2.7-3 certificates confirms adherence to rigorous industry standards. The tolerance of ±5% on internal dimensions maintains consistent performance across units, while the temperature range from -20°C to 200°C ensures operational versatility in diverse environmental conditions.
