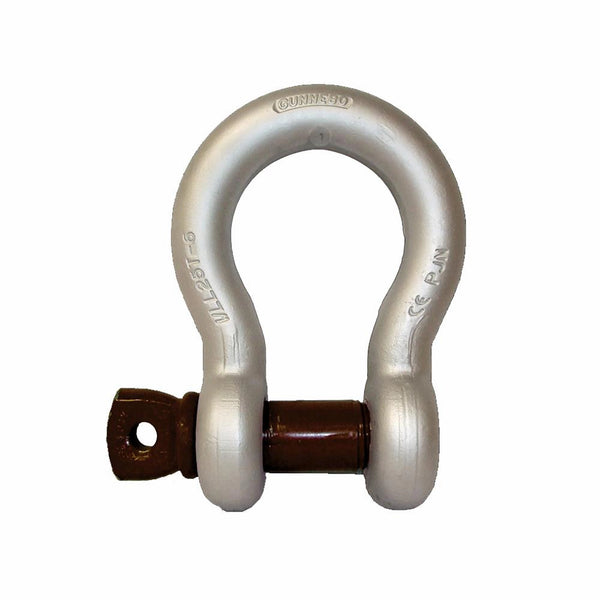

Gunnebo ANJA Sjækel type 854 Kl.2 - 1.00T

Precision engineering for demanding tasks

This Gunnebo ANJA steel shackle type 854 delivers exceptional reliability with a 6:1 safety factor, ensuring performance well beyond its rated capacity. Manufactured from high-strength, alloyed, and hardened carbon steel class 6, it meets EN 13889 standards and carries type approval to DNV 2.7-1 and US Fed. Spec. RR-C-271. The Working Load Limit of 1,000 kg supports demanding scenarios requiring precise load handling.

• Safety factor 6:1 for enhanced operational reliability
• EN 13889 compliance with DNV 2.7-1 type approval
• Operational temperature range: -20°C to 200°C
• Tolerance for internal dimensions: +/-5%

Certified quality and traceability

All components are hot-dip galvanized, with the bolt and pin featuring a brown coating over the galvanization for additional protection. Each shackle includes a test certificate and a traceable raw material certificate in accordance with EN 10204 - 3.1, providing complete documentation for quality assurance. The DNV 2.7-1 and DNV 2.7-3 certifications confirm suitability for critical applications where verified performance is essential.
