Gunnebo Chain Sling 4-O-OBK-OG Gr.10 - 16mm

SKU: 10001383
LGD:1
Quantity:
Add to inquiry
Already an user? Log in here
In remote storage
Download user manual
Download technical data

Product description

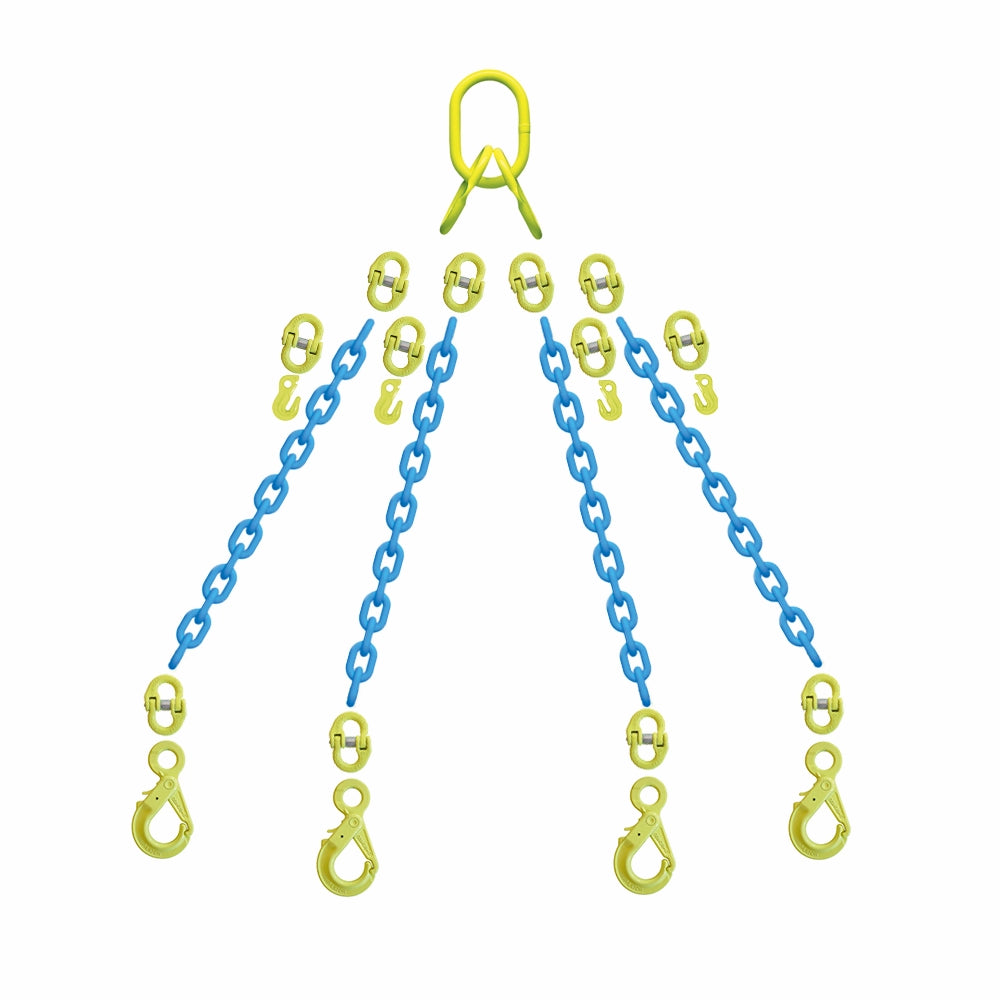

4-leg chain sling, grade 10

This 4-leg chain sling from Gunnebo is manufactured with 16mm grade 10 blue steel chain and has a WLL of 28.000 kg at 0–45°. The sling is assembled with Gunnebo components and is designed for lifting operations where strength and operational reliability are essential.

  • WLL 28.000 kg at 0–45° (grade 10, 16mm chain, 4-leg)
  • Manufactured with 16mm grade 10 blue steel chain
  • Safety factor 4:1 in accordance with EN 818-4

Specifications and application

The 4-leg chain sling distributes the load across four attachment points and is well suited for lifting large and heavy loads that need to be held in a stable and controlled position. The 16mm grade 10 chain and carefully selected components ensure a long service life under frequent use.

View our full range of 4-leg chain slings

Specifications

WLL in kg 21000/15000
Dimension 16 mm
Grade 10
Model 4-O-OBK-OG
Legs 4
Standardnorm EN 818-4 (WLL+25%)
Alternative SKU 1941010016
