Gunnebo GrabiQ Chain Sling TG4-BKG Gr.10 - 16mm
Product description

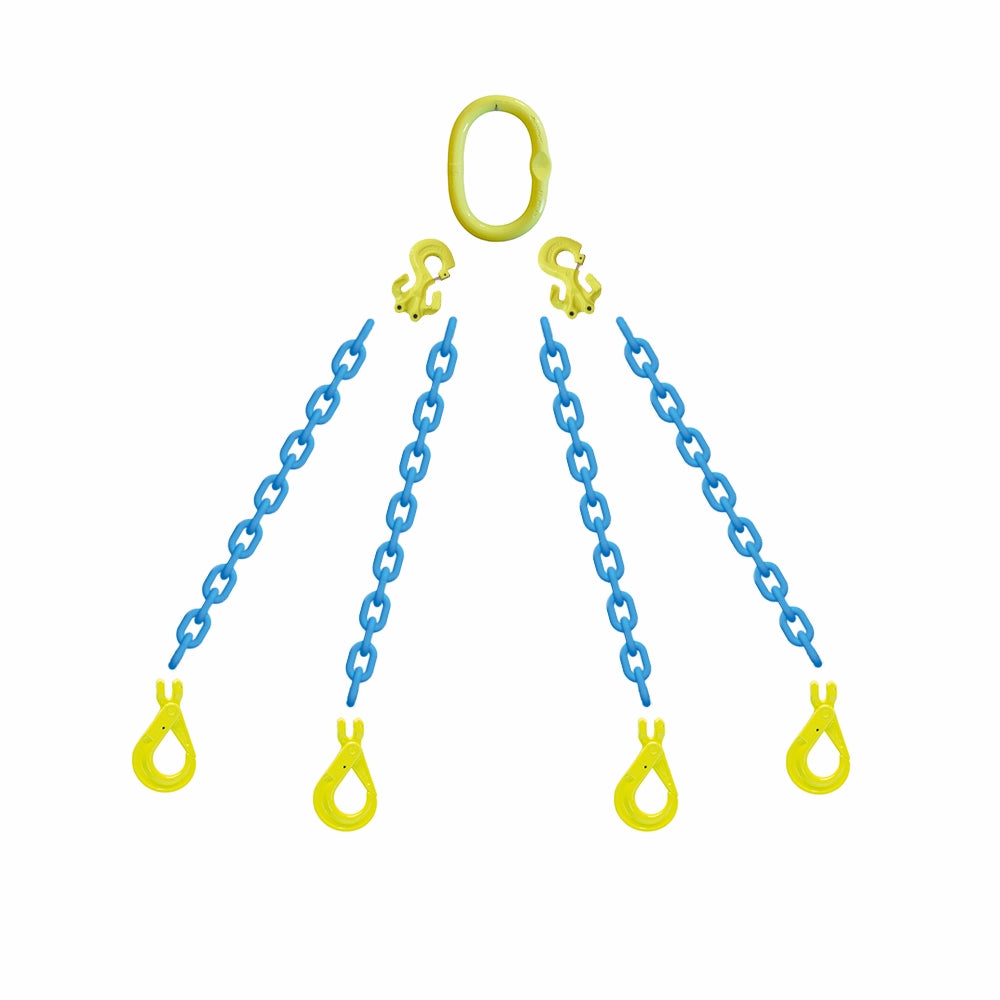

Chain sling with four legs
Gunnebo GrabiQ Chain Sling TG4-BKG has 4 legs and 16 mm grade 10 chain. The WLL depends on the leg inclination, so it comes as two figures.
- WLL 21,000 kg at 0 to 45°
- WLL 15,000 kg at 45 to 60°
- Chain 16 mm, grade 10
- 4 legs
- Safety factor 4:1
How the chain sling is loaded
Neither figure may be exceeded.
See the full range of chain slings.
Specifications
| WLL in kg | 21000/15000 |
| Dimension | 16mm |
| Grade | 10 |
| Model | TG4-BKG |
| Legs | 4 |
| Standardnorm | EN 818-4 (WLL+25%) |
| Alternative SKU | 1956810016 |
